Double Ridged Broadband Horn Antenna (Model: HA-08M18GA-NF)
680 MHz - 18 GHz | 3-15 dBi Gain | EMI/EMC Testing Standard
The HA-08M18GA-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna designed for wide-spectrum applications ranging from 680 MHz to 18 GHz. This ultra-wideband capability allows engineers to perform comprehensive EMI/EMC immunity and emissions testing without the need for multiple antenna changes. Featuring a robust aluminum construction and a durable Stainless Steel N-Female Connector, it delivers consistent gain (up to 15 dBi) and reliable performance for anechoic chamber and open-area test site environments.
Technical Specifications
Electrical Specifications
| Frequency Range | 0.68 GHz to 18 GHz |

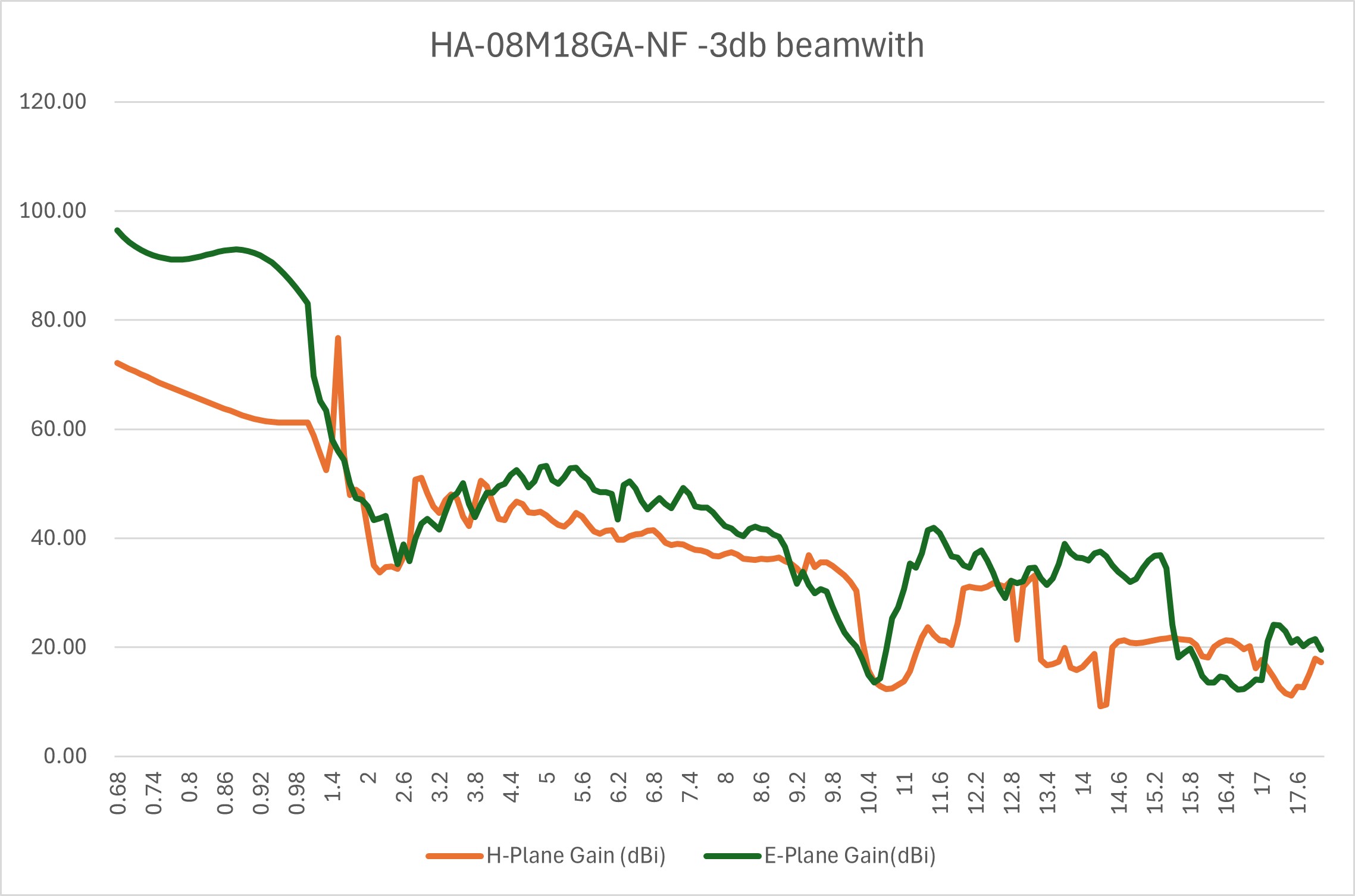

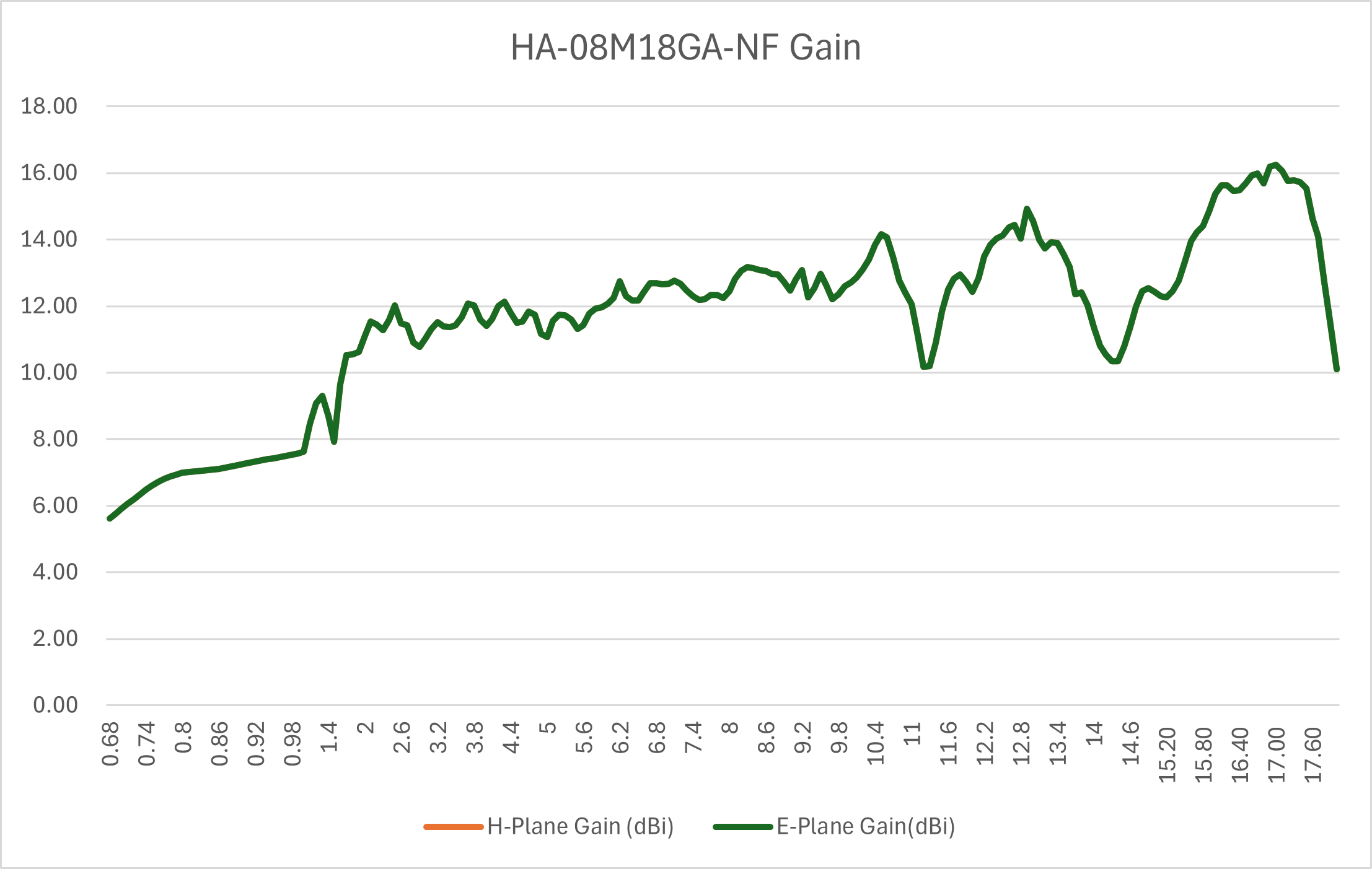

| Gain | 3 dBi - 15 dBi (Frequency dependent) |

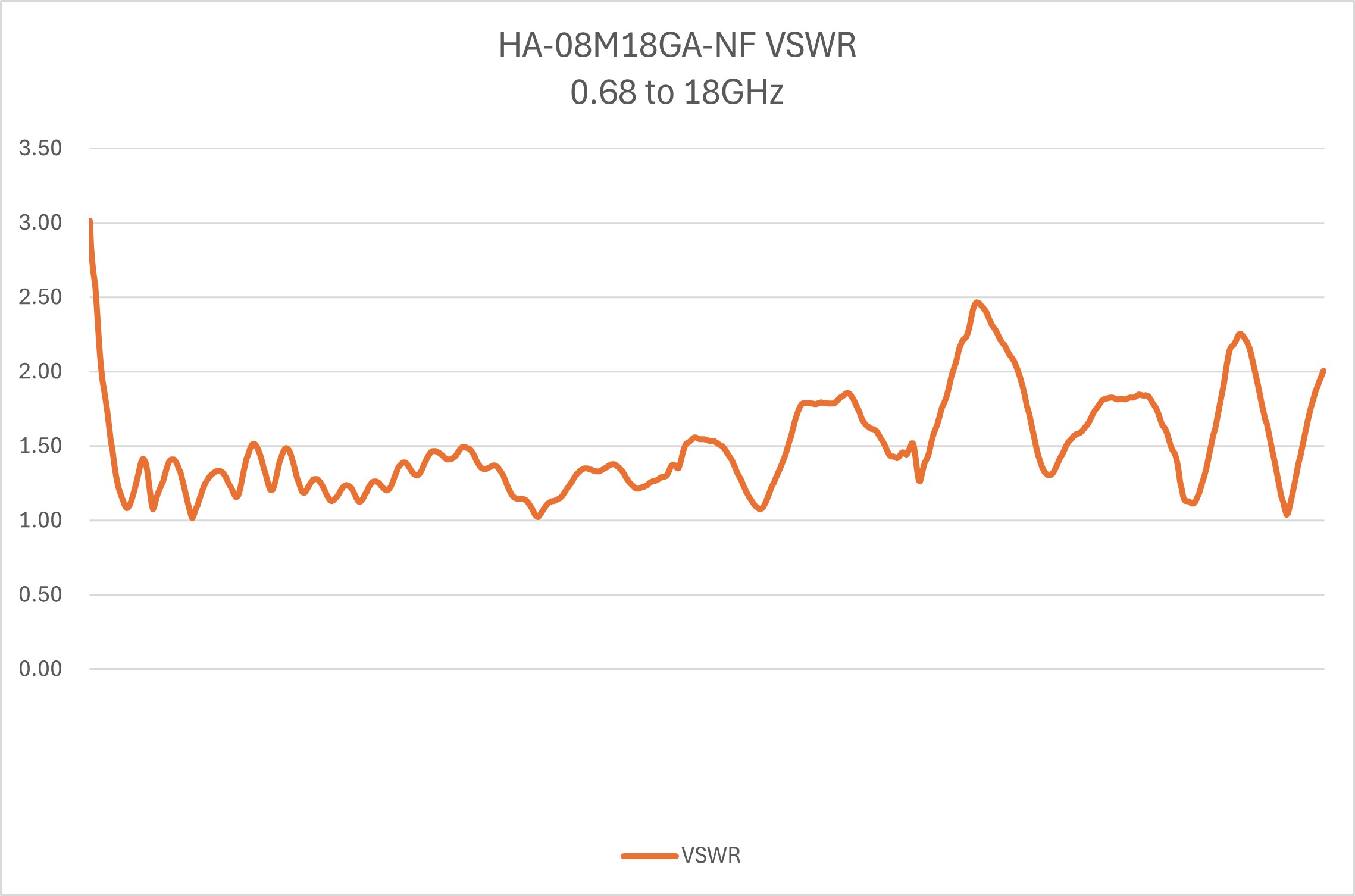

| V.S.W.R | Typical 2.0 : 1 |
| Connector | N-Female (Stainless Steel / SUS) |
| Polarization | Linear |
Mechanical Specifications

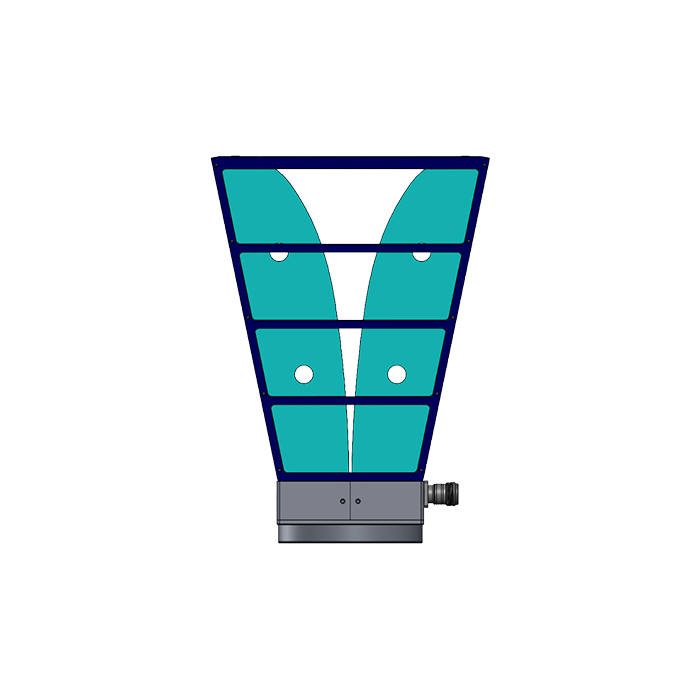

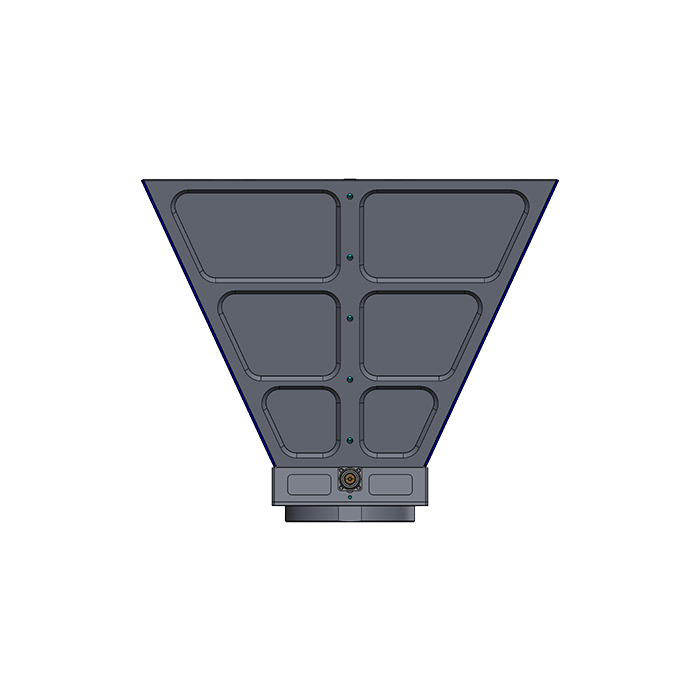

| Dimensions (W x H x L) | 309 x 182 x 253 mm |
| Net Weight | 1980 g (Antenna Only) |
| Body Material | Aluminum (5052 Alloy Brackets) |
| Mounting Options | L-Type Bracket / 22mm Round Bar |
Key Features (Model Specific)
0.68-18 GHz Wideband
A single antenna covering UHF, L, S, C, X, and Ku bands, streamlining the test setup for EMI/EMC compliance.
High Gain Performance
Delivers a gain range of 3 dBi to 15 dBi, providing excellent sensitivity for receiving and field strength for transmitting.
Stainless Steel Connector
Equipped with a SUS N-Female connector to withstand frequent mating cycles and ensure low passive intermodulation (PIM).
Robust Build
Heavy-duty aluminum construction (approx. 2kg) ensures mechanical stability and consistent alignment during testing.
Versatile Mounting
Compatible with standard tripod mounts and includes options for L-Type or Round Bar brackets for flexible positioning.
Get a Quote / Customization
Contact us for calibration reports or custom mounting bracket designs.
