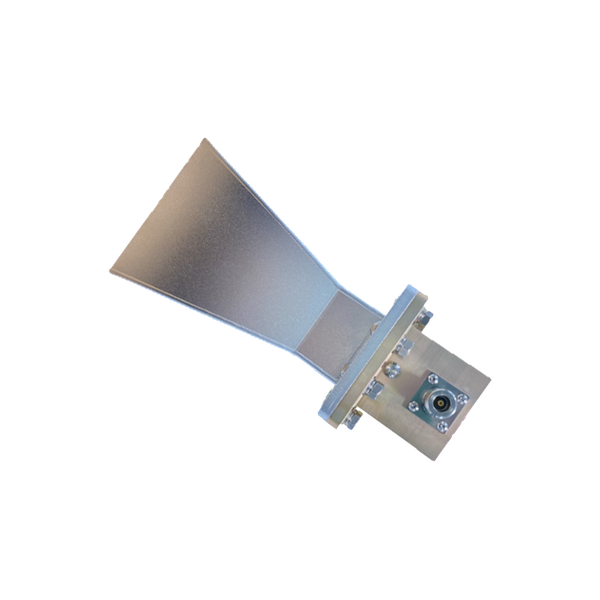

WR187 Standard Gain Horn Antenna

WR159 4.9GHz to 7.05GHz 10dbi Stand Gain Waveguide Horn Flange Type:01 Antenna
HS-18710A-NF

WR187 3.9GHz to 5.85GHz 10dbi Standard Gain Waveguide Horn Flange Type: 01 Antenna

View Details
  • Frequency: 3.9GHz to 5.85GHz
  • LxWxH: 215x98x71mm
  • N.W.: 0.57 KG
  • Flange: Type01
  • Beam-width: Horz.40 deg Vert.38 deg



WR159 4.9GHz to 7.05GHz 20dbi Stand Gain Waveguide Horn Flange Type:01 Antenna
HS-18715A-NF

WR187 3.9GHz to 5.85GHz 15dbi Standard gain Waveguide Horn Flange Type:01 Antenna

View Details

Frequency: 3.9GHz to 5.85GHz
LxWxH: 368x172x128mm
N.W.: 0.96 KG
Flange: Type 01
Beam-width: Horz.24 deg Vert.23 deg
Waveguide Coaxial Adapter Model: WC-187-NF-A1
Waveguide input Model: WI-187-A1-15
Waveguide Type: WR187
Connector: Stainless steel N-Female
Maximum Continuous Power: 250W

WR187 3.9GHz to 5.85GHz 10dbi Standard Gain Waveguide Horn
HS-18720A-NF

WR187 3.9GHz to 5.85GHz 20dbi Standard Gain Horn Flange Type:01 Antenna

View Details

Frequency: 3.9GHz to 5.85GHz
LxWxH: 410x274x212mm
N.W.: 1.25 KG
Flange: Type 01
Beam-width: Horz.19 deg Vert.18 deg
Waveguide Coaxial Adapter Model: WC-187-NF-A1
Waveguide input Model: WI-187-A1-20
Waveguide Type: WR187
Connector: Stainless steel N-Female
Maximum Continuous Power:250W
