WR2300 Waveguide to Coaxial Adapter (320 MHz to 490 MHz)

FT-RF WR2300 Waveguide to Coaxial Adapters are heavy-duty interconnect solutions engineered for UHF-band high-power RF applications. Due to the substantial physical dimensions of the WR2300 architecture, these adapters are precision-machined to facilitate ultra-low loss transitions between rectangular waveguides and high-capacity coaxial interfaces. Featuring a standard UDR flange configuration, these units ensure peak Signal Integrity for critical broadcasting and radar systems.

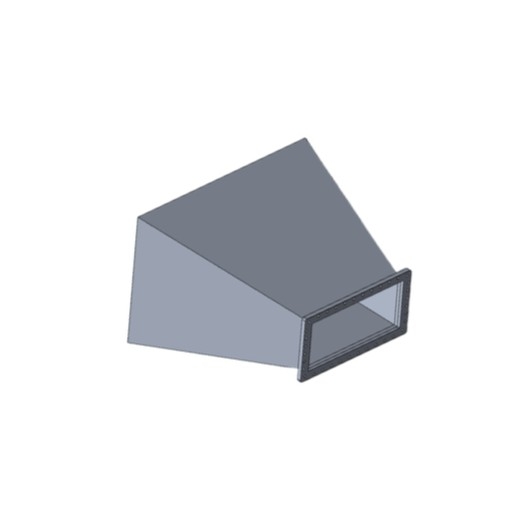

[Image of WR2300 waveguide to coaxial adapter illustrating its large-scale rectangular flange transition]

UDR Flange Series (Standard Flat Face)

Interface Configuration	Connector Type	Characteristics
WR2300 to 7/16 DIN-Female	7/16-Female (DIN)	Ultra-High Power Rating
WR2300 to N-Female	N-Female	Standard Laboratory / Field Use
Frequency Range	320 MHz to 490 MHz	Optimized UHF Bandwidth
Flange Compatibility	UDR Series	Precision-Machined Interface
Material Architecture	Premium Aluminum Alloy	Robust & Durable Construction

WR2300 Adapter Waveguide to Coaxial UHF RF Solution 7/16 DIN Connector UDR Flange Signal Integrity FT-RF Global

WR2300 Waveguide Coaxial Adapter Flange UDR, 320 MHz to 490 MHz, 7/16-Female Connector

NEW

WC-2300-UDR-716F

WR2300 Waveguide Coaxial Adapter Flange UDR, 320 MHz to 490 MHz, 7/16-Female Connector

View Details

Made in Taiwan

Frequency Range:	320 to 490 MHz
Connector Type:	7/16 DIN Female
Max Power (W):	5000W (5kW)
Waveguide Size:	WR-2300 (UDR)

📐 MECHANICAL DRAWING

WC-2300-UDR-NF

WR2300 Waveguide Coaxial Adapter Flange UDR, 320 MHz to 490 MHz, N-Female Connector
