WR137 Waveguide Horn
- Select
Tactical Communication & EW
WR137 Waveguide Horn Antenna Series
The WR137 Waveguide Horn series is a high-precision microwave component designed for low-loss performance and exceptional isolation in the C-band spectrum. These antennas are engineered for advanced satellite communication systems and high-frequency laboratory testing requiring extreme Signal Integrity.
Technical Performance & Configurations
Precision-machined from high-grade aluminum/brass, our WR137 series supports frequency ranges from 5.85 to 8.2 GHz with various gain and polarization options.
- Frequency Range: Optimized for stable performance between 5.85 GHz to 8.2 GHz.
- Gain Options: Available in high-efficiency configurations of 10 dBi, 12 dBi, 15 dBi, 20 dBi, and 25 dBi.
- Radiation Patterns: Includes standard pyramidal, E-Plane sectoral, and H-Plane sectoral designs for specialized field distributions.
- Flange Interface: Compatible with UDR (Universal Dielectric Resonator) and UAR flange standards.
- Mechanical Flexibility: Professional configurations available both with or without integrated adapters to suit specific system architectures.
Precision-engineered for reliability in the most demanding tactical environments.
NEW
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Standard Gain: | 25 dBi |
| Waveguide Size: | WR-137 (UDR) |
| Max Power (W): | 800 Watts |
NEW
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Standard Gain: | 20 dBi |
| Waveguide Size: | WR-137 (UDR) |
| Max Power (W): | 800 Watts |
NEW
WI-137-UDR-15E
WR137 5.85 to 8.2GHz 15 dbi E-plane sectoral Waveguide Horn Antenna, Flange: UDR
View Details
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Standard Gain: | 15 dBi |
| Antenna Type: | E-Plane Sectoral Horn |
| Max Power (W): | 800 Watts |
NEW
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Standard Gain: | 15 dBi |
| Waveguide Size: | WR-137 (UDR) |
| Max Power (W): | 800 Watts |
NEW
WI-137-UDR-10H
WR137 5.85 to 8.2GHz, 10dbi, H-Plane Sectoral Waveguide Horn Antenna, Flange: UDR
View Details
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Standard Gain: | 10 dBi |
| Antenna Type: | H-Plane Sectoral Horn |
| Max Power (W): | 800 Watts |
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Standard Gain: | 10 dBi |
| Waveguide Size: | WR-137 (UDR) |
| Max Power (W): | 800 Watts |
NEW
WI-137-UAR-12H
WR137 5.85 to 8.2GHz 12dbi H-Plane Sectoral Waveguide Horn Antenna, UAR Flange
View Details
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Standard Gain: | 12 dBi |
| Antenna Type: | H-Plane Sectoral Horn |
| Max Power (W): | 800 Watts |
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR137 |

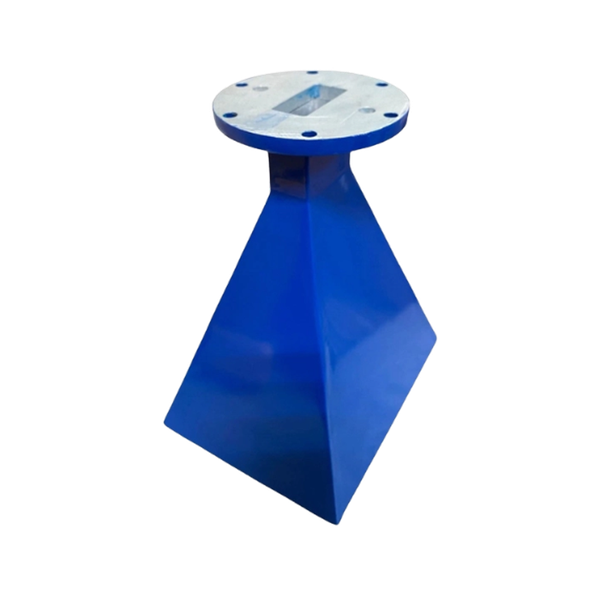

WI-137-UAR-15
WR137 5.85GHz to 8.2GHz 15dbi Waveguide Horn Antenna without Adapter, UAR Flange
View Details
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 15 dBi |
| Waveguide Size: | WR137 |
WI-137-UAR-20
WR137 5.85GHz to 8.2GHz 20dbi Waveguide Horn Antenna without Adapter, UAR Flange
View Details
Made in Taiwan
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 20 dBi |
| Waveguide Size: | WR137 (C-Band) |
