5.85 GHz to 8.2 GHz WR-137 Standard Gain Waveguide Horn Antenna
Model: WI-137-UDR-10 | 10 dBi Gain | 800W CW Power Capacity
The WI-137-UDR-10 is a high-performance WR-137 Waveguide Horn Antenna professionally engineered for high-power applications within the C-band spectrum. Delivering a precise 10 dBi gain across the 5.85 GHz to 8.2 GHz range, it is optimized for rigorous EMI/EMC Testing, antenna calibration, and advanced Signal Security operations. Precision-manufactured from aerospace-grade aluminum with a standard UDR waveguide interface, it ensures unwavering Signal Integrity and thermal stability for mission-critical Signal Defense deployments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 5.85 - 8.2 GHz |
| Waveguide Standard | WR-137 / WG14 / R70 |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 800 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

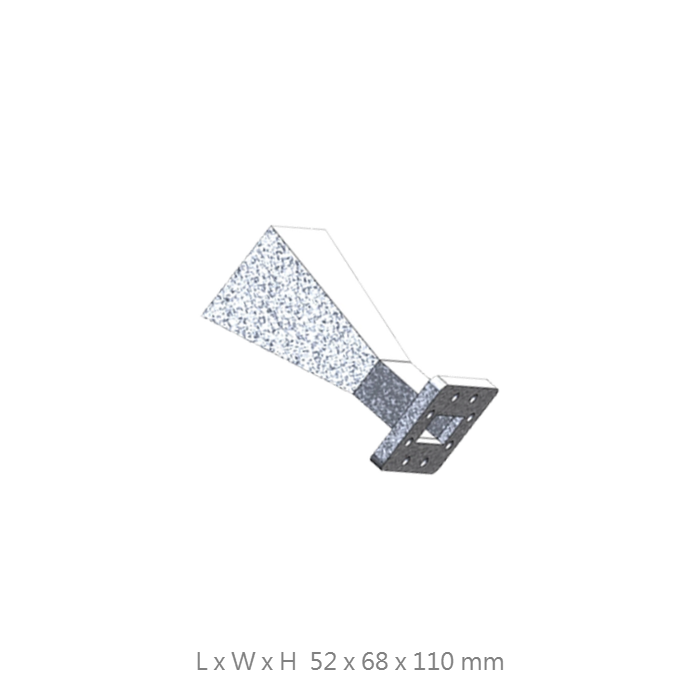

| Dimensions (L x W x H) | 52 x 68 x 110 mm |
| Net Weight | Precision Aluminum Build |
| Waveguide Flange | UDR Style Flange |
| Material | High-Grade Aerospace Aluminum Alloy |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
800W High-Power Domination
Engineered to handle massive continuous power loads, providing a robust radiator for intensive Signal Security operations and tactical signal management.
Precision Signal Integrity
Advanced WR-137 geometry ensures minimal return loss and stable radiation patterns for mission-critical laboratory calibration and testing.
Aerospace-Grade Thermal Build
Manufactured from premium aluminum alloy to ensure superior heat dissipation and structural stability during long-term field deployments.
Consolidated Performance Data
Supported by a comprehensive performance database for accurate system calibration and repeatable, traceable measurement results.
Request a Professional Quote
Contact our engineering team to obtain individual calibration certificates, VSWR plots, or technical support regarding high-power C-band configurations.
