WR15 Waveguide Adapter (WC Series)
- Select
WC Series • V-Band (50.0 – 75.0 GHz)

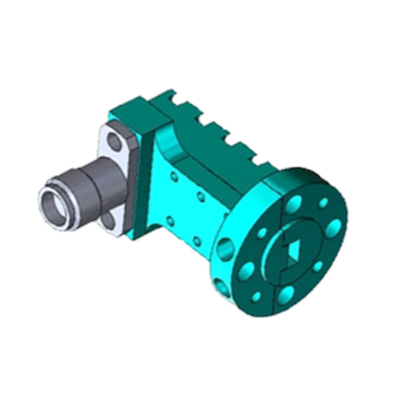

FT-RF WR15 Waveguide to Coaxial Adapter
FT-RF WR15 Waveguide to Coaxial Adapters provide ultra-precision mode transformation between V-band rectangular waveguides and 50 Ω coaxial lines (50.0 GHz to 75.0 GHz). Built with precision 1.85mm (V) female interfaces and FUGP400 flanges, they ensure minimal insertion loss and exceptional return loss for 6G millimeter-wave setups.
Machined to nanometer-level tolerances, WR15 adapters facilitate accurate VNA calibration and sub-THz signal conversion in automotive radar testing and millimeter-wave research labs.
🛠️ Engineering & Customization Options
Tailored structural designs and launch options:
- Flange Configuration: FUGP400 / UG-385/U cover flange.
- Coaxial Interface: Precision 1.85mm (V) Female (50 Ω).
- In-Line Launchers: Space-saving end-launch options.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 50.0 GHz to 75.0 GHz (V-Band) |
| Coaxial Interface | Precision 1.85mm (V) Female (50 Ω Nominal) |
| VSWR Performance | < 1.30 : 1 Typical |
| Flange Configuration | FUGP400 / UG-385/U Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
Made in Taiwan
| Frequency Range: | 50 - 70 GHz |
| Waveguide: | WR-15 (UG Flange) |
| Connector Type: | V-Female (1.85mm) |
| Stock: | 0 |
| 2026/06/10 | |
