WR975 Waveguide Input Antenna (WI Series)

WI Series • Sub-1GHz / UHF (750 MHz – 1.12 GHz)

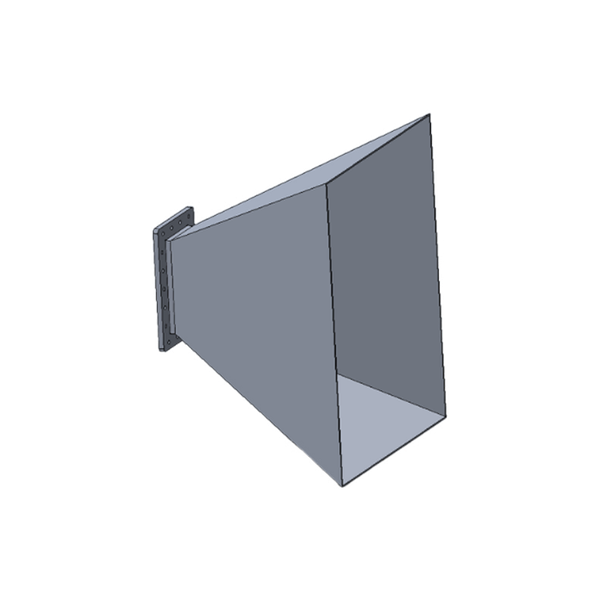

FT-RF WR975 Waveguide Input Antenna



FT-RF WR975 Waveguide Input Antenna features direct WR975 rectangular flange feeds across Sub-1 GHz wireless protocols, defense radar evaluation, and low-frequency EMC anechoic test chambers (750 MHz to 1.12 GHz). Constructed from high-strength structural aluminum with internal support ribbing.

FT-RF WR975 Waveguide Input Antenna

Engineered for high structural stability and minimal backscattering, WR975 input horns come equipped with CPR975F cover flanges and eye-bolt rigging attachments for safe positioning in large anechoic chambers or test ranges.

🛠️ Engineering & Customization Options

Tailored structural designs and custom bracket options:

  • Custom Dimensions: Tailored flare lengths & holes.
  • Phase-Matched Sets: Gain and phase matched pairs.
  • Rigging Mounts: Crane eyes & heavy-duty brackets.
Direct Support: info-tw@ft168.com.tw
Parameter Technical Specifications
Frequency Range 750 MHz to 1.12 GHz (Sub-1GHz / UHF)
Input Interface Direct WR975 Waveguide Flange Feed
Available Gain 10 dBi, 15 dBi, 20 dBi
Flange Configuration CPR975F / FDP5 Cover Flange
Certifications ISO 9001:2015 / RoHS Compliant
Frequency Range: 750 - 1150 MHz
Antenna Type: Standard Horn Antenna
Nominal Gain: 10 dBi Typical
Waveguide Size: WR-975 (UDR / 3000W)
Stock: 4
2026/06/09
Frequency Range: 750 - 1150 MHz
Antenna Type: Standard Gain Horn
Nominal Gain / Flange: 15 dBi / Standardized UDR Flange
Max Power Handling: 3000 Watts (CW)
Lead Time: 📩 info-tw@ft168.com.tw
Stock: 0
2026/06/22
