WR42 Waveguide Input Antenna (WI Series)
- Select
WI Series • K-Band (18.0 – 26.5 GHz)

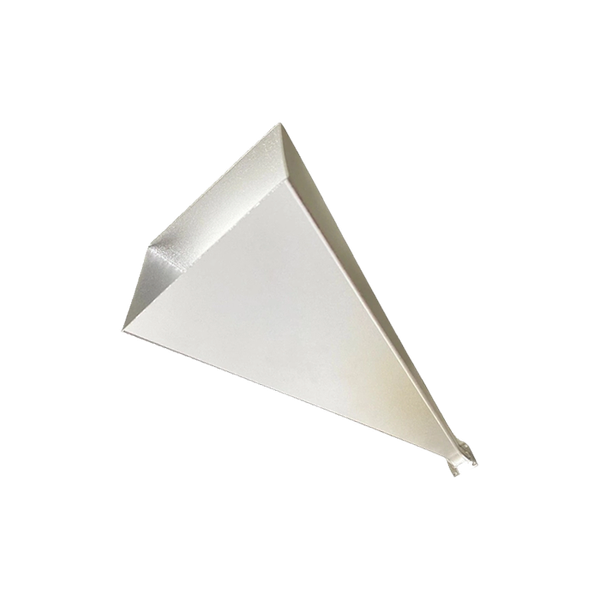

FT-RF WR42 Waveguide Input Antenna
FT-RF WR42 Waveguide Input Antenna is engineered for high-precision K-Band microwave systems operating across 18.0 to 26.5 GHz. Featuring a direct UG-595/U standard waveguide flange feed, it provides exceptionally low insertion loss, high power handling, and clean radiation patterns for chamber calibration and antenna measurement ranges.
Precision CNC machined from high-grade passivated aluminum and copper alloy, this horn delivers outstanding gain flatness and cross-polarization discrimination. It serves as an optimal feed and reference antenna for 5G mmWave backhaul, satellite transceivers, and radar test benches.
🛠️ Engineering & Customization Options
Tailored structural designs and custom bracket fabrication for your setup:
- Custom Gain: 10 dBi, 15 dBi, 20 dBi, and 25 dBi options.
- Phase-Matched Sets: High-precision phase & gain matched pairs.
- Flange Options: UG-595/U, FBP220, or custom pressurized flanges.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 18.0 GHz to 26.5 GHz (K-Band) |
| Waveguide Size | WR42 (WG20 / R220) |
| Nominal Gain | 10 dBi / 15 dBi / 20 dBi / 25 dBi |
| Flange Type | UG-595/U / Square Cover Flange |
| VSWR / Polarization | < 1.15:1 (Typ.) / Linear |
WI-42-UBR-10
WR42 18 GHz to 26.5 GHz 10dBi Waveguide Horn Antenna without Adapter, UBR UG-419/U Flange
View Details
FT-RF
| Frequency Range: | 18.0 - 26.5 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-42 (K-Band / 500W) |
| Stock: | 35 |
| 2026/06/09 | |
WI-42-UBR-10H
WR42 18 GHz to 26.5 GHz 10dBi H-Plane Sectoral Waveguide Horn Antenna, UBR UG-419/U Flange without Adapter
View Details
FT-RF
| Frequency Range: | 18.0 - 26.5 GHz |
| Antenna Type: | H-Plane Sectoral Horn |
| Nominal Gain: | 10 dBi (12°×110° Fan-Beam) |
| Waveguide Size: | WR-42 (UG-419/U / 500W) |
| Stock: | 0 |
| 2026/06/18 | |
WI-42-UBR-15
WR42 Waveguide Horn Antenna without adapter, 18 GHz to 26.5 GHz, 15dBi, Flange: UBR UG-419/U
View Details
FT-RF
| Frequency Range: | 18.0 - 26.5 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR-42 (K-Band / 500W) |
| Stock: | 48 |
| 2026/06/09 | |
WI-42-UBR-15E
WR42 18 GHz to 26.5GHz 15dBi E-plane Sectoral Horn Antenna Waveguide Input, UBR UG-419/U Flange
View Details
FT-RF
| Frequency Range: | 18.0 - 26.5 GHz |
| Antenna Type: | E-Plane Sectoral Horn |
| Nominal Gain: | 15 dBi (77°×16° Fan-Beam) |
| Waveguide Size: | WR-42 (UG-419/U / 500W) |
| Stock: | 0 |
| 2026/06/18 | |
WI-42-UBR-20
WR42 Waveguide Input Horn Antenna Flange: UBR UG-419/U without adapter, 18 GHz to 26.5 GHz 20dbi
View Details
FT-RF
| Frequency Range: | 18.0 - 26.5 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 20 dBi |
| Waveguide Size: | WR42 (K-Band) |
| Stock: | 43 |
| 2026/06/09 | |
WI-42-UBR-25
WR42 Waveguide Horn Antenna without Adapter, UBR UG-419/U Flange, 18 GHz to 26.5 GHz 25dBi
View Details
FT-RF
| Frequency Range: | 18.0 - 26.5 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 25 dBi |
| Waveguide Size: | WR42 (K-Band) |
| Stock: | 0 |
| 2026/06/09 | |
