Vivaldi Broadband Antennas (VC)
- Select
CO-PLANAR BROADBAND ENDFIRE ANTENNAS

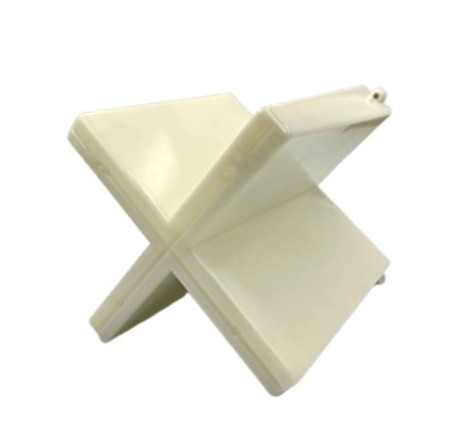

Vivaldi Broadband Antennas (VC)
The VC Series Vivaldi Antennas are co-planar broadband endfire antennas engineered for continuous, multi-octave operation across a wide frequency range spanning from 700 MHz up to 10 GHz (with extended options reaching higher microwave bands).
Constructed using precision-machined solid sheet metal or metallized high-frequency dielectric PCB substrates with exponentially flared slotline tapers, Vivaldi antennas provide exceptional scalability, versatile mounting options, and cost-effective ultra-wideband performance for Ground Penetrating Radar (GPR), wideband signal reception, and microwave RF testing.
*Custom frequency tuning, low-dielectric PCB substrates (Rogers/Teflon), and multi-element endfire array configurations are available upon request.
⚡ Next-Gen Engineering Highlights
Exponential Slotline Taper
Continuously expanding slotline geometry ensures smooth impedance transformation and continuous multi-octave bandwidth.
Lightweight & Scalable Build
Precision PCB or sheet metal construction offers an ultra-compact footprint, low aerodynamic weight, and outstanding cost efficiency.
Stable Endfire Radiation
Delivers consistent directional gain (6–14 dBi) along the antenna plane with excellent cross-polarization rejection.
Versatile Microwave Spectrum
Optimized for multi-octave microwave systems from 700 MHz to 10 GHz with stable low VSWR matching.
Key Operational Applications:
| Key Technical Parameter | VC Series Specification Overview |
|---|---|
| Frequency Range | 700 MHz – 10 GHz Continuous Multi-Octave Coverage |
| Nominal Gain Range | 6 dBi to 14 dBi Directional Endfire Gain |
| Architecture Type | Co-Planar Exponential Tapered Slotline (PCB / Sheet Metal) |
| Polarization & Impedance | Linear Polarization / 50 Ω Nominal Interface |
700 MHz – 10 GHz Coverage Co-Planar Slotline Taper GPR & Wideband Reception
🛠️ Customization & Engineering Services
We provide tailored designs and precision manufacturing to suit your specific microwave array or radar requirements:
- Custom Frequency Scaling: Taper designs expanded up to 18 GHz+.
- High-Frequency Substrates: Low-loss Rogers / Teflon PCB material choices.
- Phase-Matched Sets: Precision-calibrated pairs for UWB array systems.
- Mounting Brackets: Custom low-reflection mounting fixtures and enclosures.
Direct Technical Support: info-tw@ft168.com.tw
📐 Recommended Testing Accessories
Enhance your measurement setup with compatible mounting and RF equipment:
FT-RF
| Frequency Range: | 600 MHz to 8 GHz |
| Antenna Type: | Log Periodic Antenna |
| Nominal Gain: | -14 dBi to 4 dBi |
| Waveguide Size: | SMA-Female Configuration |
| Stock: | 0 |
| 2026/06/23 | |
