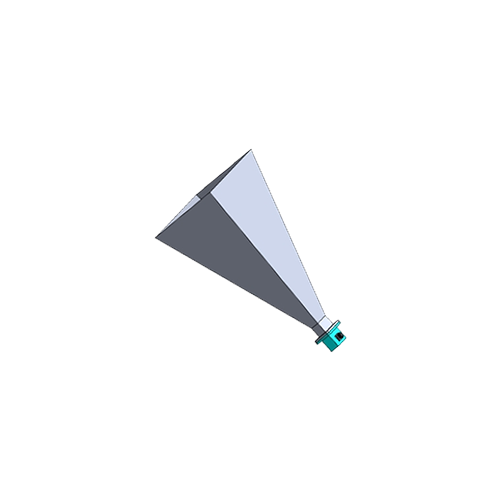

WR-340 (2.2 GHz to 3.3 GHz) 20dbi Waveguide Standard Horn 7/16-Female Antenna, Flange: UDR

WR-340 (2.2 GHz to 3.3 GHz) 20dbi Waveguide Standard Horn 7/16-Female Antenna, Flange: UDR

Model No: HS-340-UDR-20A-716

Made in Taiwan
Frequency Range: 2.2 - 3.3 GHz
Waveguide Type: WR-340 (S-Band)
Nominal Gain: 20 dBi
Connector Port: 7/16-Female (DIN)
Stock:
📐 MECHANICAL DRAWING
Quantity:
INQUIRY

  • Description & Specification

WR-340 High-Power Horn Antenna

Model: HS-340-UDR-20A-716 | 2.2 - 3.3 GHz | 20 dBi | 800W Peak
The HS-340-UDR-20A-716 is an elite-tier Waveguide Horn Antenna optimized for extreme power environments within the 2.2 GHz to 3.3 GHz S-band. Constructed with precision-welded aluminum and utilizing a massive WR-340 waveguide profile, this antenna delivers a focused 20 dBi gain. Equipped with a heavy-duty 7/16-Female (DIN) connector, it supports up to 800 Watts of power, providing the structural and electrical dominance required for professional Signal Defense, high-power EMI immunity testing, and advanced tactical communication configurations.



Electrical & RF Performance
Waveguide Standard WR-340
Frequency Range 2.2 - 3.3 GHz
Standard Gain 20 dBi
Maximum Power Handling 800 Watts
3dB Beamwidth (H-Plane) 18°
3dB Beamwidth (E-Plane) 18°
Mechanical & Interface Data
Dimensions (LxWxH) 410 x 486 x 956 mm
Net Weight 5480 g
Waveguide Flange UDR
Connector Type 7/16-Female (DIN)
Material Lightweight Aluminum



800W High-Power Threshold

Engineered with a 7/16 DIN interface to safely handle extreme power loads up to 800W, ideal for high-intensity protection operations and transmitter testing.

Symmetrical Radiation Pattern

Features a highly focused 18° beamwidth in both E and H planes, providing the boresight accuracy necessary for mission-critical antenna calibration.

Superior Signal Security

The precision aluminum construction ensures low VSWR and high structural rigidity, maintaining unwavering stability in demanding field deployments and reinforcing Signal Security.

Standardized UDR Integration

Equipped with a standard UDR waveguide flange for secure mechanical coupling and minimal signal leakage in professional S-band systems.

Get a Quote / Custom Antenna Solutions

Contact us for specialized gain configurations, alternative high-power connector types, or custom mounting adapter requirements.
