WR-75 Standard Gain Horn Antenna with TNC Adapter
Model: HS-075-UBR-10-TF | 10.0 - 15.0 GHz | 10 dBi | 280W
The HS-075-UBR-10-TF is a high-precision Ku-Band Standard Gain Waveguide Horn Antenna expertly integrated with a low-loss waveguide-to-coaxial adapter, engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the microwave spectrum across the continuous 10.0 GHz to 15.0 GHz frequency range, this premium system delivers a highly consistent directional nominal gain of 10 dBi with symmetrical 54° beamwidths. Featuring a standardized UBR 120 (M3922/70-004 compatible) waveguide flange mating face paired with a precision threaded stainless steel TNC-Female coaxial interface connector, it ensures flawless structural impedance integration and ultra-low-loss power transfer. Safely managing continuous wave power loads up to 280 Watts (CW), this radiator is precision structured from high-grade aluminum alloy in Taiwan, yielding a lightweight 95g configuration footprint paired with a maximum V.S.W.R threshold of 1.25 : 1. It stands as an essential instrument for high-fidelity laboratory EMI/EMC testing, automated antenna gain calibration ranges, and mission-critical field deployments where superior Signal Integrity and secure coupling are paramount.
Electrical & RF Performance
| Frequency Range Class | 10.0 GHz to 15.0 GHz (Continuous Ku-Band Spectral Optimization) |
| Waveguide Standard Size | EIA WR-75 / R120 Geometry Layout |
| Nominal Gain Baseline | 10 dBi |
| V.S.W.R Profile (Max) | 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 280 Watts (CW Continuous Wave Limit) |
| -3dB Beamwidth (H-Plane / E-Plane) | 54° / 54° (Symmetrical Field Illumination) |
| Nominal System Impedance | 50 Ohm |
Mechanical & Physical Specs

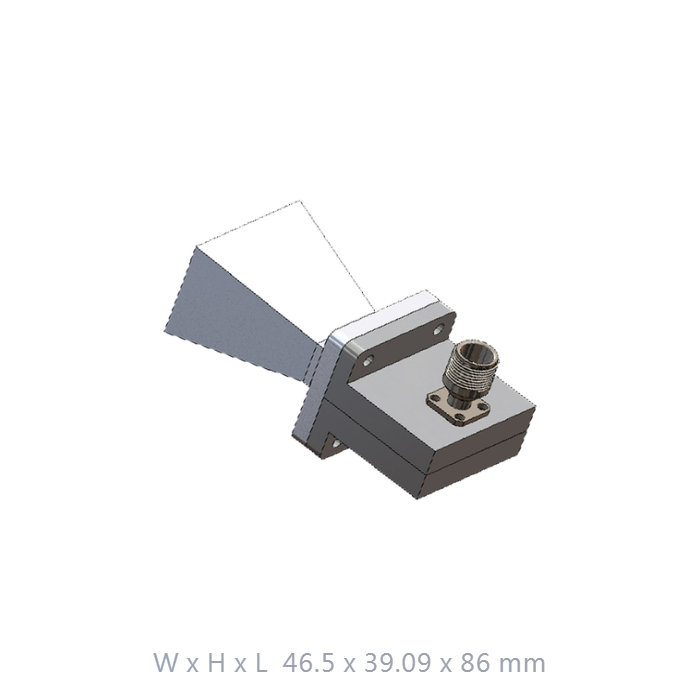

| Physical Dimensions (W x H x L) | 46.5 x 39.09 x 86 mm |
| Antenna Net Weight Profile | 95 g (Precision Lightweight Design) |
| Waveguide Flange Interface | UBR 120 (M3922/70-004 Standard Compatible) Layout Face |
| Coaxial Connector Type | TNC-Female (Precision Stainless Steel / SUS threaded coupling) |
| Structural Body Material | High-Grade Structural Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Uniform Gain & Pattern Control
Optimized for the 10.0-15.0 GHz band, delivering symmetrical 54° beamwidths and the boresight accuracy required for high-fidelity antenna calibration and repeatable lab validations.
Heavy-Duty TNC Interface
Equipped with a high-durability stainless steel TNC interface, ensuring secure threaded mechanical coupling and structural wear resistance for repeated cycle use.
Ultra-Lightweight Build
Weighing only 95g, this compact horn antenna ensures minimal load on precision laboratory positioners while maintaining exceptionally high structural rigidity.
Customizable Infrastructure Ready
Fully adaptable architectural framework with advanced options for waterproof structures, automated PTZ control tracking, and specialized mounting designs to meet specific outdoor tactical setups.
Contact FT-RF Engineering Team
Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized PTZ control functions, or customized mounting interfaces.
