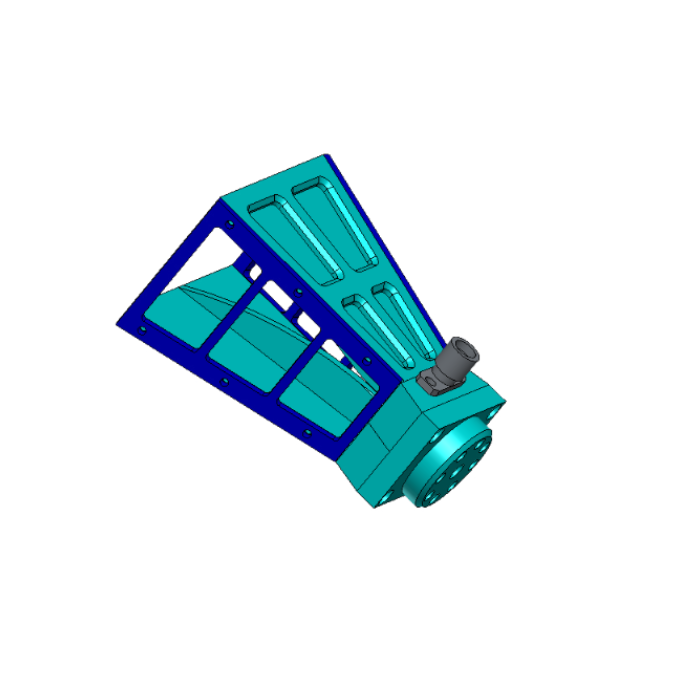

4 GHz to 40 GHz K-Female Double Ridged Broadband Waveguide Horn Antenna
Ultra-High Frequency | Precision Design | Model: HA-0440GA-KF
The HA-0440GA-KF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for ultra-high frequency professional microwave and millimeter-wave validation. Operating across a massive frequency spectrum spanning the continuous 4 GHz to 40 GHz range, this laboratory-grade antenna provides stable directional gain profiling from 5 to 12 dBi. Precision-machined with optimized inner double ridges, its physical geometry minimizes boundary reflections and guarantees superior radiation directivity with exceptionally low transmission loss. Equipped with a high-precision 2.92mm K-Female coaxial interface connector, this ultra-lightweight 80g antenna safely handles up to 15 Watts of continuous wave (CW) input power and 120 Watts peak power. It stands as an essential reference standard for advanced 5G wireless network testing, millimeter-wave radar development, high-frequency anechoic chamber testing, and comprehensive EMC/EMI compliance sweeps requiring high reliability and accurate repeatable radiation patterns.
Electrical & RF Performance
| Frequency Range Class | 4 GHz to 40 GHz (Millimeter-Wave Ultra-Broadband Optimization) |
| Antenna Radiation Style | Double Ridged Broadband Waveguide Horn Geometry |
| Antenna Gain Curve | 5 to 12 dBi (Stable Continuous Response Profile) |
| Maximum Continuous Power (CW) | 15 Watts (Optimized Thermal Dissipation Capacity) |
| Maximum Peak Power Handling | 120 Watts (Transient Load Peak Limit) |
| Nominal System Impedance | 50 Ohms |

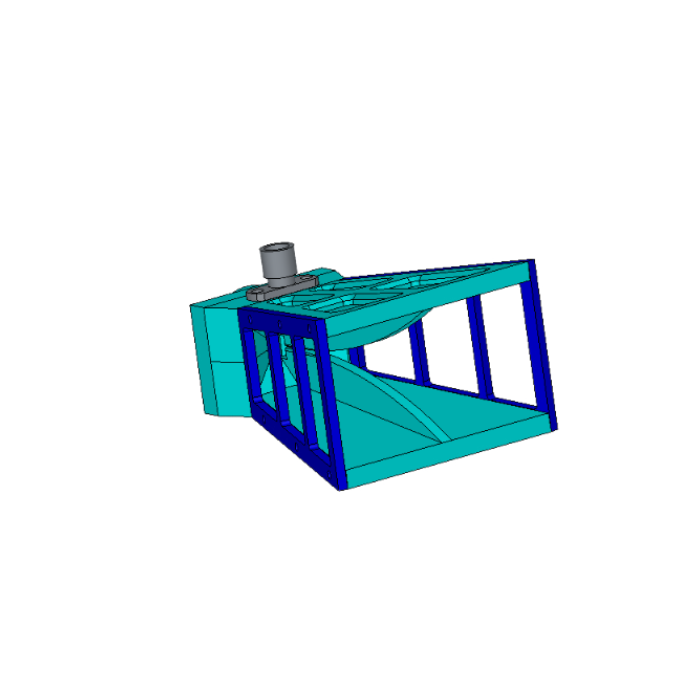

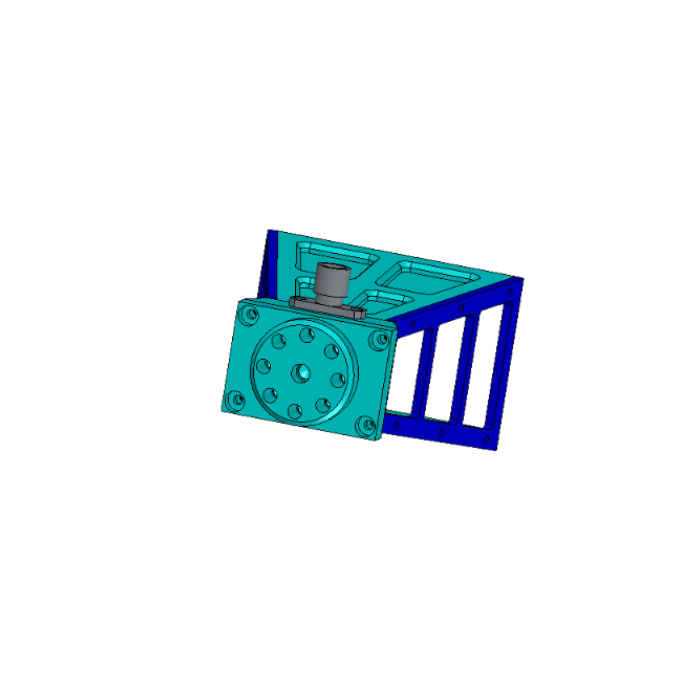

Mechanical & Physical Data

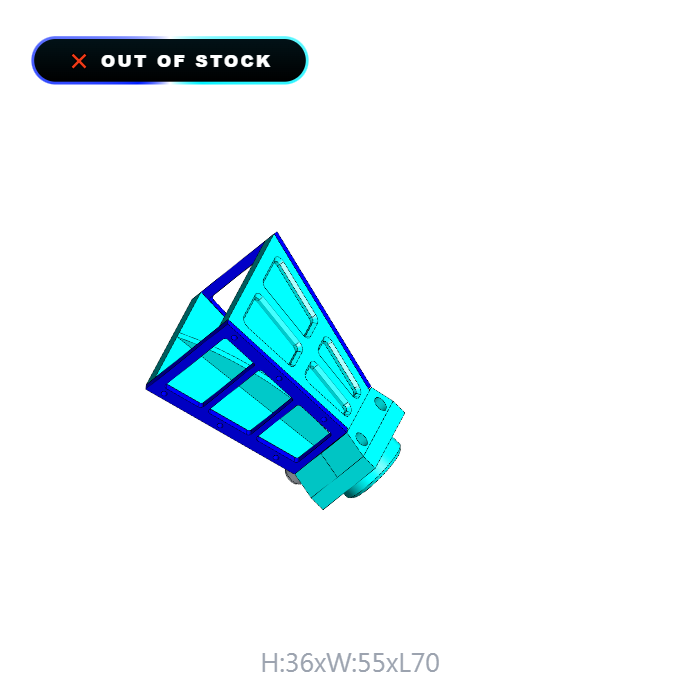

| Physical Dimensions (H x W x L) | 36 x 55 x 70 mm |
| Antenna Net Weight Profile | 80 g (Precision Ultra-Lightweight Design Form Factor) |
| Coaxial Connector Type | Precision 2.92mm K-Female Port Interface |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Ultra-High Frequency Coverage
Continuously covers the 4 GHz to 40 GHz spectrum, providing an all-in-one radiator solution for millimeter-wave development, 5G cellular testing, and satellite radar system analysis.
Precision K-Type Connector
Equipped with a premium 2.92mm (K) connector interface to ensure highly stable, repeatable connectivity and ultra-low VSWR profiles at extremely high frequencies.
Compact & Lightweight Design
At just 80g, this compact horn antenna minimizes mechanical loads, facilitating seamless integration into precision micro-probing systems and space-constrained test fixtures.
Optimized Boundary Geometry
Advanced physical waveguide framing reduces edge scattering parameters, ensuring high-fidelity cross-polarization isolation and excellent directivity patterns.
Contact FT-RF Engineering Division
Contact our technical engineering subdivision today to request official quote sheets, individual traceable gain calibration plots, certified documentation data packets, or customized mounting interface solutions.
