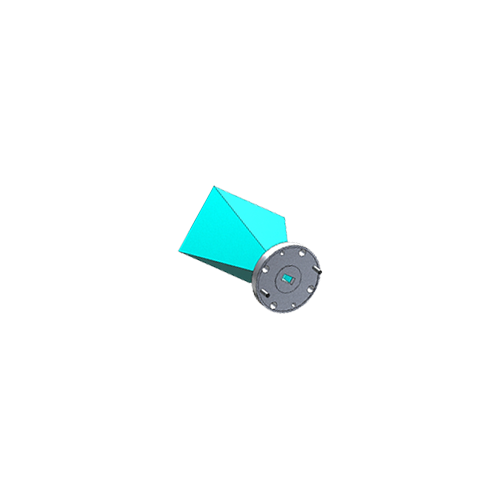

33 GHz to 50 GHz Q-Band Waveguide Input Horn Antenna
Model: WI-22-UG-20 | WR-22 Waveguide | 20 dBi Gain
The WI-22-UG-20 is a high-precision Waveguide Input Horn Antenna specifically engineered for millimeter-wave RF measurements in the 33 GHz to 50 GHz (Q-Band) frequency range[cite: 234, 270]. Featuring a standard WR-22 waveguide interface and a UG flange, it delivers a stable nominal gain of 20 dBi with symmetrical radiation patterns[cite: 234, 236, 266]. This antenna is an essential calibration instrument for high-frequency Signal Integrity verification and professional laboratory setups requiring industrial-grade reliability[cite: 256].
Technical Specifications
Electrical RF Performance
| Frequency Range | 33 GHz to 50 GHz [cite: 234, 270] |
| Waveguide Standard | WR-22 / WG23 / R400 [cite: 264, 268] |
| Nominal Gain | 20 dBi [cite: 234] |
| V.S.W.R (Max) | 1.3 : 1 [cite: 237] |
| -3dB Beamwidth (H-Plane) | 18° [cite: 235] |
| -3dB Beamwidth (E-Plane) | 18° [cite: 235] |
| Maximum Power Handling | 150 Watts (CW) [cite: 235] |
| Impedance | 50 Ohm |
Mechanical & Environmental
| Dimensions (L x W) | 38 x 30 mm [cite: 235] |
| Height | 53.40 mm [cite: 243] |
| Net Weight | 20 g [cite: 235] |
| Waveguide Flange | UG Compatible [cite: 236] |
| Body Material | Aluminum [cite: 235] |
| Design & Origin | Taiwan Design / Made in Taiwan (FT-RF) [cite: 256] |
Key Tactical & Lab Features
Millimeter-Wave Precision
Optimized for Q-Band (33-50 GHz) operations, providing a reliable and traceable 20 dBi gain reference for high-frequency range calibration[cite: 234].
Standardized Interface
Features a precise WR-22 waveguide input and UG flange to ensure seamless integration into standardized millimeter-wave test systems[cite: 234, 236].
Ultra-Lightweight Design
At only 20g, this compact horn antenna is ideal for rigid integration into complex laboratory setups without compromising alignment[cite: 235].
Consolidated Performance Data
Supported by a comprehensive performance database for accurate system calibration and repeatable measurement results.
Request a Professional Quote
Contact our engineering team to obtain individual calibration certificates, VSWR plots, or technical support regarding high-frequency setups[cite: 139].
