WR284 Waveguide Input Antenna (WI Series)
- Select
WI Series • S-Band (2.60 – 3.95 GHz)

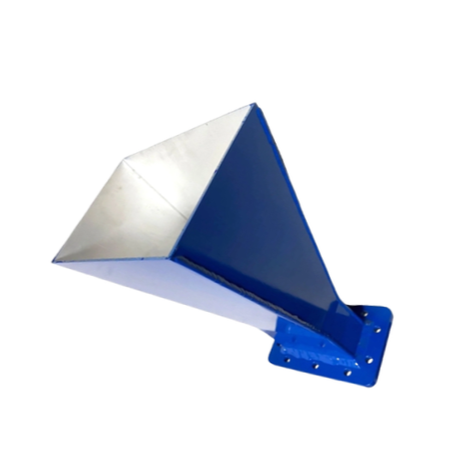

FT-RF WR284 Waveguide Horn Antenna
FT-RF WR284 Waveguide Horn antennas are precision passive pyramidal devices featuring direct WR284 rectangular flange feeds across S-band spectrums (2.60 GHz to 3.95 GHz). Manufactured from high-grade aluminum, they deliver reliable gain calibration and stable linear polarization for radar, Wi-Fi 2.4/3.5GHz, and microwave testing.
Built with heavy-duty structural aluminum walls and standard CPR284F cover flanges, WR284 input horns serve as high-efficiency feeds and reference antennas in NEXRAD weather radars, airport surveillance systems, and anechoic chambers.
🛠️ Engineering & Customization Options
Tailored structural designs and custom bracket options:
- Custom Dimensions: Tailored flare lengths & holes.
- Phase-Matched Sets: Gain and phase matched pairs.
- Chamber Brackets: Low-reflection mounting plates.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 2.60 GHz to 3.95 GHz (S-Band) |
| Input Interface | Direct WR284 Waveguide Flange Feed |
| Available Gain | 10 dBi, 15 dBi, 20 dBi, 25 dBi |
| Flange Configuration | CPR284F / FDP26 Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
WI-284-UDR-10H
WR284 (2.6 to 3.95GHz)10dbi H-Plane Sector Waveguide Horn Input, Flange: UDR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Waveguide size / Flange: | EIA WR-284 / Standard UDR |
| Gain / Wide Pattern Beam: | 10 dBi Typical / 92° Sector |
| Max CW Power / Weight: | 800 Watts / 1600g Core Build |
| Stock: | 0 |
| 2026/06/18 | |
WI-284-UAR-10H
WR284 (2.6 to 3.95GHz) 10dbi H-Plane Sector Waveguide Horn Input, Flange: UAR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Waveguide size / Flange: | EIA WR-284 / Standard UAR |
| Gain / Wide Pattern Beam: | 10 dBi Typical / 92° Sector |
| Max CW Power / Weight: | 360 Watts / 2200g Core Build |
| Stock: | 0 |
| 2026/06/18 | |
WI-284-UDR-10
WR284 Waveguide Horn Antenna (without adapter), 2.6GHz to 3.95GHz frequency band, 10dbi gain, UDR flange
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR284 (S-Band) |
| Stock: | 6 |
| 2026/06/09 | |
WI-284-UAR-10E
WR284 (2.6 to 3.95GHz) 10dbi E-Plane Sector Waveguide Horn Input, Flange: UAR
View Details
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Waveguide size / Flange: | EIA WR-284 / Standard UAR |
| Gain / Wide Pattern Beam: | 10 dBi Typical / 112° Sector |
| Max CW Power / Weight: | 800 Watts / 1250 g Core Build |
| Stock: | 0 |
| 2026/06/18 | |
NEW
WI-284-UAR-10
WR284 Waveguide Horn Antenna (without adapter), 2.6GHz to 3.95GHz frequency band, 10dbi gain, UAR flange
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi (VSWR ≤ 1.3) |
| Waveguide Size: | WR-284 (UAR / 800W) |
| Stock: | 0 |
| 2026/06/18 | |
WI-284-UDR-10E
WR284 ( 2.6GHz to 3.95GHz ) 10dbi E-Plane Sector Waveguide Input Horn Antenna, Flange: UDR
View Details
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Waveguide size / Flange: | EIA WR-284 / Standard UDR |
| Gain / Wide Pattern Beam: | 10 dBi Typical / 112° Sector |
| Max CW Power / Weight: | 800 Watts / 1200g Core Build |
| Stock: | 0 |
| 2026/06/18 | |
WI-284-UAR-15E
WR284 (2.6 to 3.95GHz) 15dbi E-Plane Sector Waveguide Horn Input, Flange: UAR
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Waveguide size / Flange: | EIA WR-284 / Standard UAR |
| Gain / Wide Pattern Beam: | 15 dBi Typical / 80° Sector |
| Max CW Power / Weight: | 300 Watts / 1900g Core Build |
| Stock: | 0 |
| 2026/06/18 | |
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Waveguide size / Flange: | EIA WR-284 / Standard UAR |
| Gain / Symmetrical Beam: | 15 dBi Typical / 32°×31° |
| Max CW Power / Weight: | 800 Watts / 1450g Core Build |
| Stock: | 0 |
| 2026/06/18 | |
FT-RF
| Frequency Range: | 2.6 GHz - 3.95 GHz |
| Waveguide size / Flange: | EIA WR284 / Type01 Interface |
| Nominal Gain / Style: | 15 dBi / Standard Gain Horn |
| Dimensions (mm) / Weight: | 420 x 270 x 200 mm / 2.2 kg |
| 2026/06/17 | |
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Waveguide size / Flange: | EIA WR-284 / Standard UAR |
| Gain / Symmetrical Beam: | 20 dBi Typical / 18°×17° |
| Max CW Power / Weight: | 600 Watts / 2650g Core Build |
| Stock: | 0 |
| 2026/06/18 | |
FT-RF
| Frequency Range: | 2.6 GHz - 3.95 GHz |
| Nominal Gain: | 20 dBi |
| Waveguide Style: | WR284 (S-Band) |
| Dimensions (LxWxH): | 40 x 32 x 57 cm |
| Stock: | 2 |
| 2026/06/09 | |
