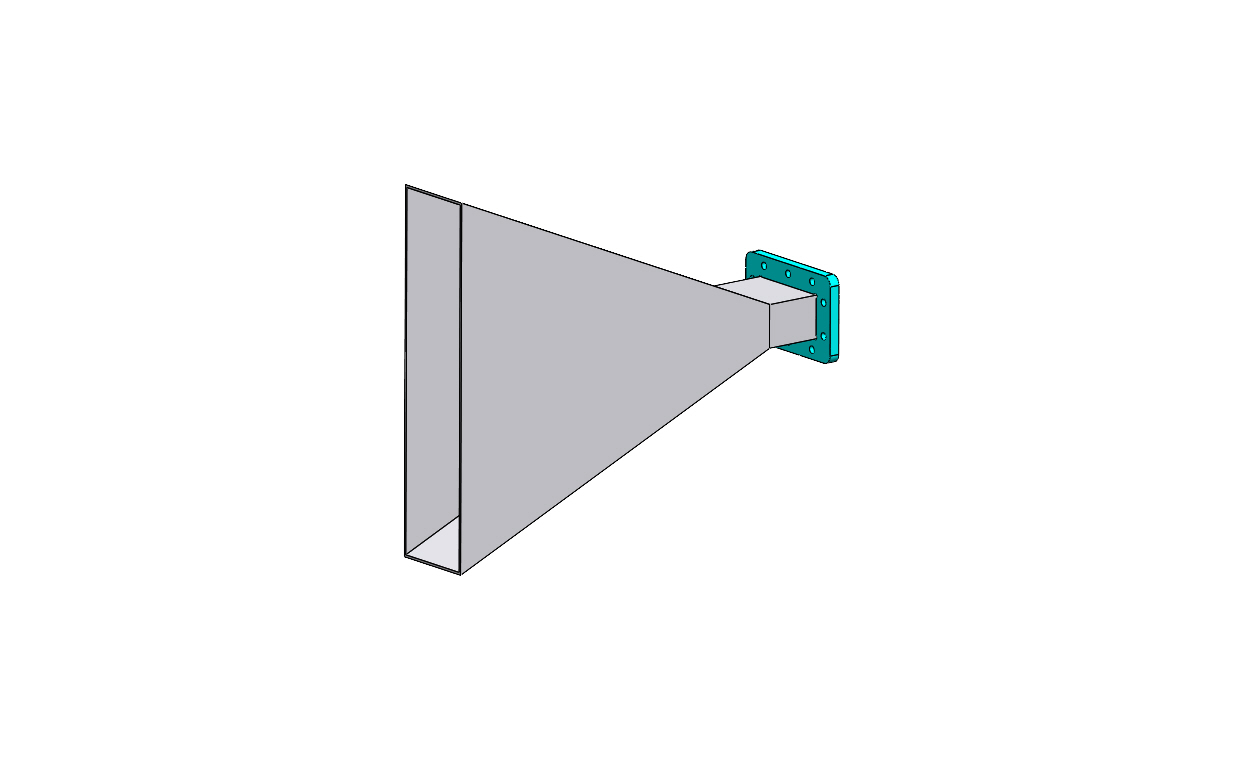

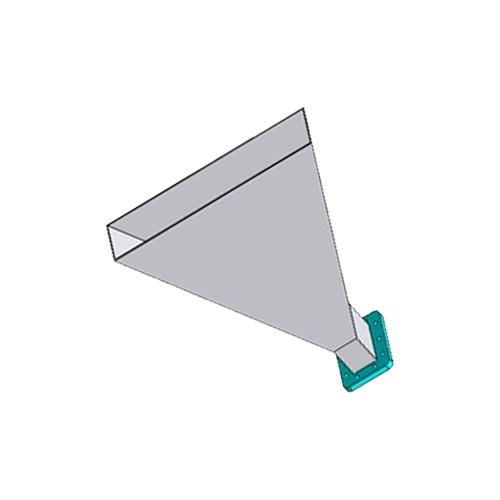

  • WR284 ( 2.6GHz to 3.95GHz ) 10dbi E-Plane Sector Waveguide Input Horn Antenna, Flange: UDR
WR284 ( 2.6GHz to 3.95GHz ) 10dbi E-Plane Sector Waveguide Input Horn Antenna, Flange: UDR

WR284 ( 2.6GHz to 3.95GHz ) 10dbi E-Plane Sector Waveguide Input Horn Antenna, Flange: UDR

Model No: WI-284-UDR-10E

Made in Taiwan
Frequency Range: 5.85 - 8.2 GHz
Gain (Typical): 10 dBi
Peak Power (CW): 800 Watts
📖 DATASHEET

Quantity:
INQUIRY

  • Description & Specification

Professional C-Band Sector Antennas

WI-284-UDR-10E WR-284 Sector Horn Antenna

Advanced C-band sectoral horn antenna (5.85 - 8.2 GHz) featuring a 112° ultra-wide H-plane beamwidth. Engineered for high-power (800W) area monitoring and laboratory RF infrastructure.

Technical Specifications
Frequency Range 5.85 - 8.2 GHz
Gain (Typical) 10 dBi
Peak Power (CW) 800 Watts
V.S.W.R (Max) 1.3 : 1
3dB Beamwidth (H/E) 112° / 28°
Waveguide / Flange WR-284 / UDR

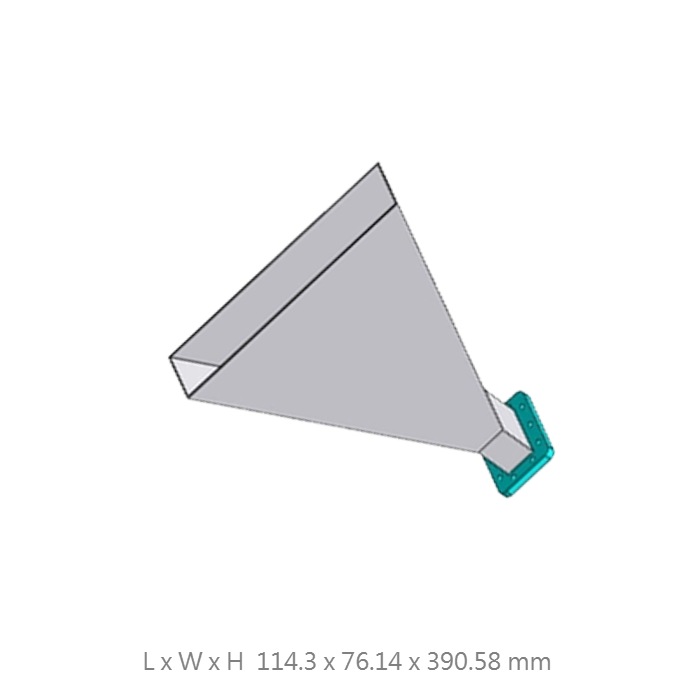

Dimensions / Weight 114.3 x 76.14 x 390.58 mm / 1200g
Design Highlights

112° Sectoral Radiation

Specialized wide-angle H-plane profile optimized for broad-area signal capture and persistent tactical monitoring in the C-band spectrum.

800W Extreme Reliability

Robust aluminum construction designed to handle high-power continuous wave (CW) operations with superior thermal dissipation.

Aerospace-Grade CNC

Precision-machined from high-quality aluminum alloy to ensure mechanical stability and uniform electrical performance in harsh environments.

Customized mounting solutions or specialized calibration certificates are available upon request.
