WR90 Waveguide Adapter (WC)
- Select
WC Series • X-Band (8.2 – 12.4 GHz)

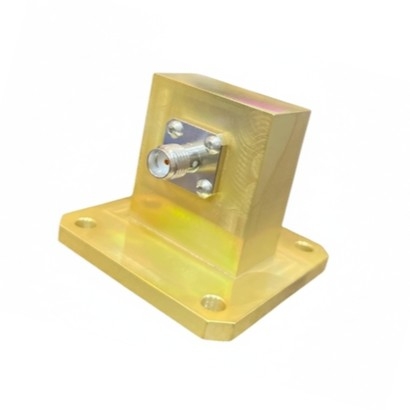

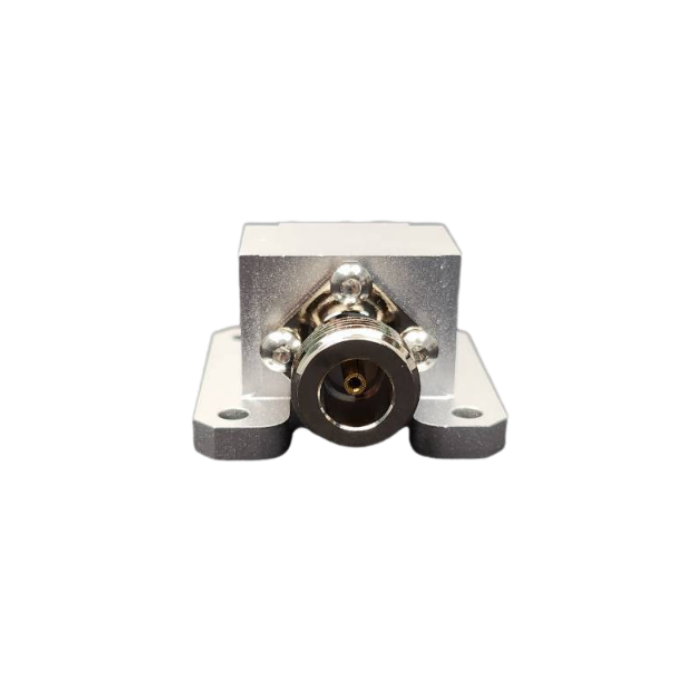

FT-RF WR90 Waveguide Adapter
FT-RF WR90 Waveguide Adapter is a precision-engineered X-Band waveguide-to-coaxial adapter (8.2 GHz to 12.4 GHz) designed to seamlessly connect WR90 waveguide systems with SMA or N-Type coaxial cables and instruments. With ultra-low VSWR and minimal insertion loss, it provides accurate signal coupling for defense radar cross-section (RCS) testing, anechoic chamber calibration, and high-precision measurements.
Constructed from high-precision CNC machined aluminum alloys, this adapter guarantees high cross-polarization rejection (>30 dB) and smooth gain flatness across the entire frequency band, ensuring reliable and repeatable measurement results in laboratory environments.
🛠️ Engineering & Customization Options
Tailored structural designs and calibration deliverables:
- Custom Flange: Tailored flange profiles available.
- Connector Options: SMA or N-Type configurations.
- Matched Sets: Precision dual-channel pairs.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 8.2 GHz to 12.4 GHz (X-Band) |
| VSWR | < 1.25 : 1 |
| Connector Interface | Integrated SMA / N-Type Female Adapter |
| Flange Type | UG-39/U / FDP100 Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
NEW
WC-090-UBR-E1-NF
WR90 Waveguide to Coax Adapter END Launch, 8.2GHz to 12.4GHz, N-Female Connector, UBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Component Type: | End Launch Waveguide to Coax Adapter |
| Waveguide Size: | WR-90 (UG-39/U / N-Female) |
| V.S.W.R (Max): | 1.3 : 1 |
| Power Handling (CW): | 300 Watts |
| Stock: | 0 |
| 2026/10/12 | |
NEW
WC-090-PBR-A2-NF
WR90 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, N-Female Connector, PBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 300 Watts (CW) |
| Waveguide Size: | WR-90 (UG-39/U / N-Female) |
| Stock: | 0 |
| 2026/06/16 | |
NEW
WC-090-PBR-SF
WR90 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, SMA-Female Connector, PBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 250 Watts (CW) |
| Waveguide Size: | WR-90 (UG-39/U / SMA-Female) |
| Stock: | 0 |
| 2026/06/15 | |
NEW
WC-090-PBR-E1-SF
WR90 Waveguide to Coaxial Adapter END launch, 8.2 to 12.4GHz Frequency, SMA-Female Connector, PBR Flange
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 200 Watts (CW) |
| Waveguide Size: | WR-90 (UG-39/U / SMA-F End Launch) |
| Stock: | 0 |
| 2026/08/21 | |
WC-090-D-SF
WR90 1/2 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, SMA-Female Connector, Type D
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | Standard (WR90) |
| Waveguide Size: | WR-90 (1/2 Size / SMA-F) |
| Stock: | 0 |
| 2026/06/16 | |
NEW
WC-090-D2-SF
WR90 1/2 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, SMA-Female Connector, Type D2
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi (Waterproof Radome) |
| Waveguide Size: | WR-90 (SMA-Female SUS) |
| Stock: | 1 |
| 2026/06/09 | |
NEW
WC-090-D3-SF
WR90 1/2 Waveguide to Coaxial Adapter, 8.2 to 12.4GHz Frequency, SMA-Female Connector, Type D3
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 300 Watts (CW) |
| Waveguide Size: | WR-90 (1/2 Height / SMA-F) |
| Stock: | 0 |
| 2026/06/16 | |
NEW
WC-090-UBR-A1-NF
WR90 Waveguide to Coaxial Adapter, UBR Flange: UG-39/U, 8.2 to 12.4GHz Frequency, N-Female Connector
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 300 Watts (CW) |
| Waveguide Size: | WR-90 (UG-39/U) |
| Stock: | 0 |
| 2026/08/21 | |
WC-090-UBR-E2-NF
WR90 (8.2GHz to 12.4GHz) N-Female Endlaunch Rectangular Waveguide to Coaxial Adapter Flange: UBR (Type: E2) (WC-090-UBR-E2-NF)
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Component Type: | Endlaunch Waveguide to Coax Adapter |
| Waveguide Size: | WR-90 (UBR / N-Female) |
| V.S.W.R (Max): | 1.25 : 1 |
| Power Handling: | 150W CW / 3 kW Peak |
| Stock: | 0 |
| 2026/10/12 | |
NEW
WC-090-UBR-E2-SF
WR90 (8.2GHz to 12.4GHz) SMA-Female Endlaunch Rectangular Waveguide to Coaxial Adapter Flange: UBR (Type: E2) (WC-090-UBR-E2-SF)
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Component Type: | Endlaunch Waveguide to Coax Adapter |
| Waveguide Size: | WR-90 (UBR / SMA-Female) |
| V.S.W.R (Max): | 1.25 : 1 |
| Power Handling: | 50W CW / 3 kW Peak |
| Stock: | 3 |
| 2026/10/12 | |
NEW
WC-090-UBR-SF
WR90 (8.2GHz to 12.4GHz) SMA-Female Waveguide Coaxial Adapter Flange: UBR (WC-090-UBR-SF)
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Component Type: | Waveguide to Coax Adapter |
| Waveguide Size: | WR-90 (UBR / SMA-Female) |
| V.S.W.R (Max): | 1.25 : 1 |
| Power Handling: | 50W CW / 500W Peak |
| Stock: | 0 |
| 2026/10/12 | |
NEW
WC-090-UBR-H1-NF
WR90 (8.2GHz to 12.4GHz) N-Female Ridge Short Circuit Waveguide Adapter Flange: UBR (Type: H1) (WC-090-UBR-H1-NF)
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Component Type: | Waveguide to Coax Adapter |
| Waveguide Size: | WR-90 (UBR / N-Female) |
| V.S.W.R (Max): | 1.25 : 1 |
| Power Handling: | 300W CW / 3 kW Peak |
| Stock: | 0 |
| 2026/10/12 | |
