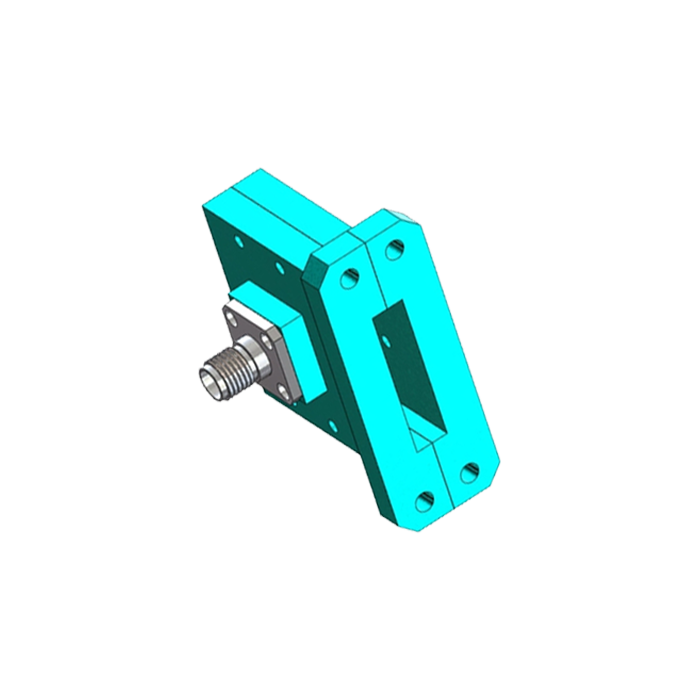

| Frequency Range | 8.2 GHz to 12.4 GHz (X-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.3 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Waveguide Size Standard | EIA WR-90 with 1/2 Height Reduced Profile (R100 / WG16 Layout) |
| Waveguide Flange Designation | UG-39/U Style Flange Standard Layout (UBR Square Flat Cover Format) |
| Coaxial Connector Interface | SMA-Female Interface Premium Port Layout |
| Physical Dimensions (W x H x L) | 45 x 26 x 36 mm |
| Net Weight | 26.6 g (Precision Ultra-Lightweight Micro Build) |
| Body Material Profile | High-Grade Machined Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Precision-optimized internal cavity transition geometry elements eliminate mode path reflections across the full 8.2–12.4 GHz spectrum, ensuring minimal path signal leakage when paired with professional waveguide sub-systems.
Featuring a reduced 1/2 height profile configuration, this adapter structure is specifically engineered for tight path routing, compact system integrations, and low-profile laboratory setups where space is at a premium.
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring consistent internal launcher dimensions, absolute flat positioning alignment, and calibration constancy.
Equipped with a high-durability SMA-Female connector port providing superior electrical contact stability and mechanical thread profile constancy over rigorous repeatable measurement routing cycles.
Weighing an optimized 26.6 g, this ultra-lightweight aluminum component introduces minimal structural load parameters onto precision positioning hardware while maintaining rigid structural tolerances.
Contact our technical engineering team today to request specialized flange drilling patterns, individual certified V.S.W.R plot charts, alternative custom connector ports, or specialized custom surface layouts.
