| Frequency Range | 8.2 GHz to 12.4 GHz (X-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.3 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Waveguide Standard | EIA WR-90 (R100 / WG16 Layout) |
| Waveguide Flange Designation | UG-39/U Style Flange Standard Layout (PBR Pressurizable Cover with Gasket Groove) |
| Coaxial Connector Port | N-Female Interface Premium Port Layout |

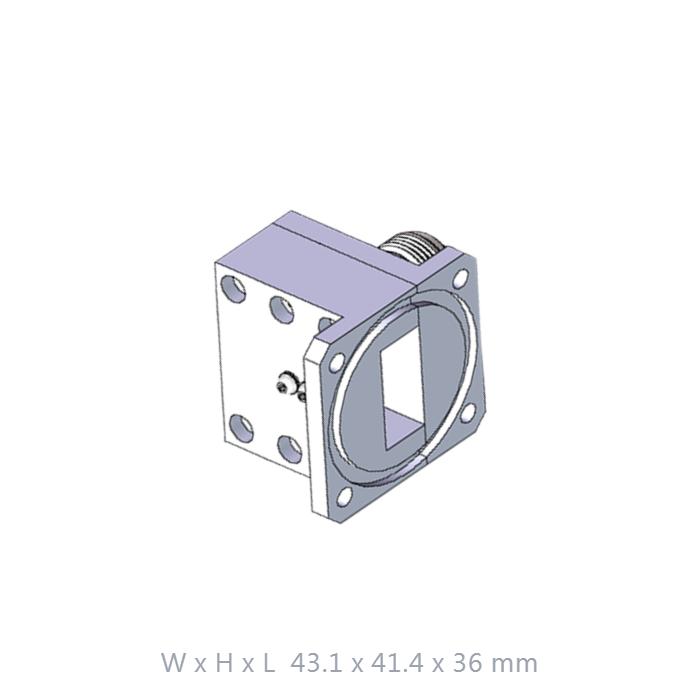

| Physical Dimensions (W x H x L) | 43.1 x 41.4 x 36 mm |
| Net Weight | 85 g (Precision Lightweight Build) |
| Body Material Profile | High-Grade Structural Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Precision-optimized internal transition cavity elements eliminate mode anomalies across the full 8.2–12.4 GHz spectrum, ensuring minimal path signal leakage and maximum coupling efficiency when paired with professional waveguide hardware.
Robustly engineered to safely handle up to 300 Watts of continuous wave (CW) power without thermal drift or impedance breakdown, making it suitable for both intensive laboratory testing and high-intensity transmitter interfaces.
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring consistent internal launcher dimensions, absolute flat positioning alignment, and calibration constancy.
Weighing only 85 g, this ultra-compact adapter profile provides high mechanical rigidity while remaining exceptionally easy to deploy on tactical airborne masts, drone assemblies, or precision laboratory positioners.
Features a standardized square UG-39/U flange with an integrated sealing ring groove (PBR style) for secure, airtight mechanical anchoring, ensuring stable power transitions in demanding commercial or military RF infrastructures.
Contact our technical engineering team today to request specialized custom flange drilling patterns, alternative custom connector ports, individual certified V.S.W.R plot charts, or specialized surface layouts.
