Description & Specification
Compact Waveguide Interface

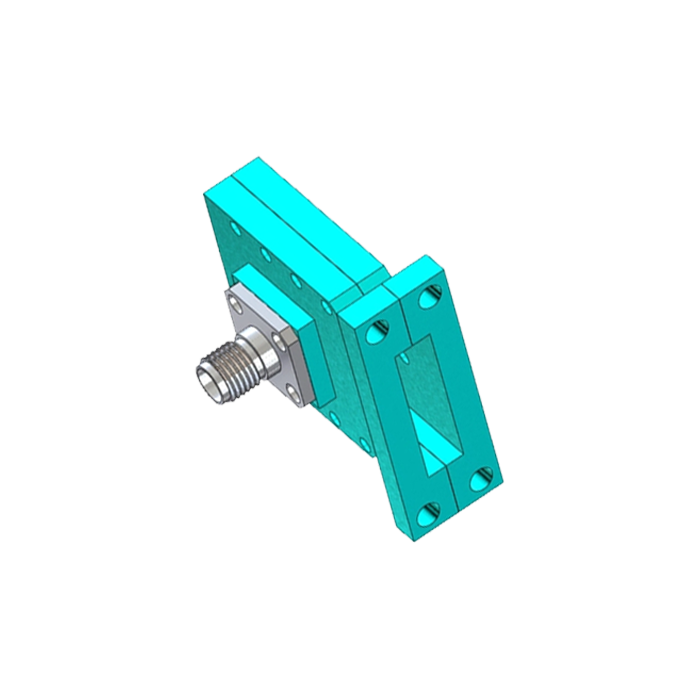

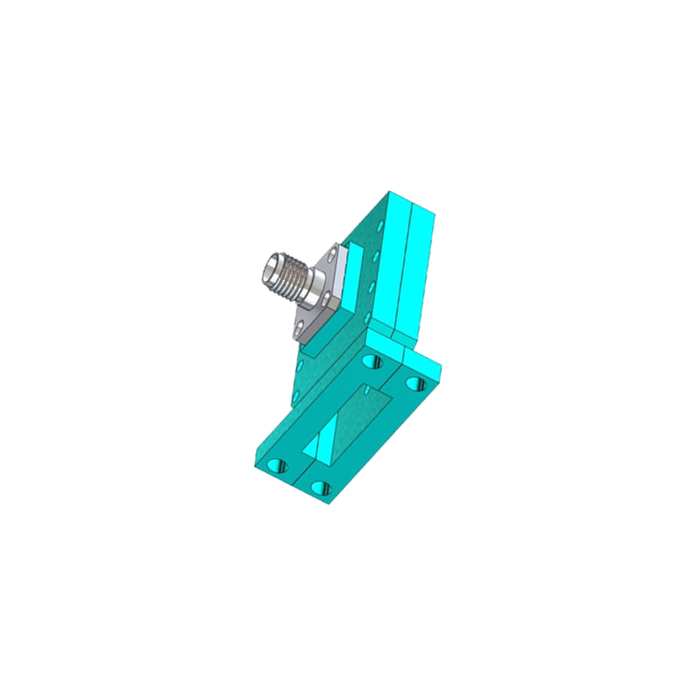

WC-090-D3-SF WR-90 1/2 Adapter
A precision-engineered 1/2 size waveguide transition. Optimized for X-band applications where space efficiency is critical, ensuring seamless signal flow across 8.2 - 12.4 GHz.
Technical Specifications
| Frequency Range | 8.2 - 12.4 GHz |
| Waveguide Type | WR-90 (1/2 Compact Design) |
| Waveguide Flange | UG-39/U |
| Connector Interface | SMA-Female |
| Peak Power (CW) | 300 Watts |
| V.S.W.R (Max) | 1.3 : 1 |
| Weight / Material | 12.83g / CNC Aluminum |
Design & Material Highlights
Ultra-Compact Footprint
Minimal 36x12x35 mm dimensions designed for high-density RF assemblies and integrated radar systems.
Superior Build Integrity
Manufactured from high-grade aluminum with precision surface finishing to ensure low insertion loss and high reliability.
Standard Compliance
Engineered to meet international waveguide standards, providing a professional interface for monitoring and testing.
