WR340 Waveguide Horn
- Select
FT-RF WR340 waveguide horns are engineered as low-loss RF components designed for high-power operations while maintaining exceptional isolation. These waveguide horns are ideal for system designs requiring high power handling, antenna feed networks optimized for phase accuracy, and specialized laboratory testing.

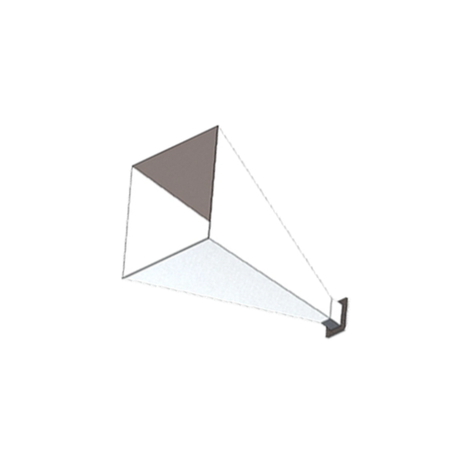

[Image of WR340 Waveguide Horn Antenna structure]The waveguide components and square cover flanges are manufactured from premium-grade aluminum, ensuring a lightweight yet robust construction. Our WR-340 series is available in diverse configurations, including E-Plane, H-Plane, and radome-protected designs to maintain Signal Integrity in demanding environments.
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 2.2 GHz to 3.3 GHz |
| Available Gain | 10 dBi, 15 dBi, 20 dBi |
| Material | High-Quality Sturdy Aluminum |
| Flange Type | Square Cover Flange |
| Certifications | ISO 9001:2015 Certified |
Made in Taiwan
| Frequency Range: | 2.2 - 3.3 GHz |
| Waveguide Size / Flange: | EIA WR-340 / Standard UDR |
| Standard Gain / Pattern: | 20 dBi Typical / 30°×29° Beam |
| Max CW Power / Weight: | 1000 Watts / 5.0 kg Core Build |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/18 | |
Made in Taiwan
| Frequency Range: | 2.2 to 3.3 GHz |
| Waveguide Size / Flange: | EIA WR-340 / Standard UDR |
| Standard Gain / Pattern: | 15 dBi Typical / 30°×29° Beam |
| Max CW Power / Weight: | 1000 Watts / 1.6 kg Core Build |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/18 | |
Made in Taiwan
| Frequency Range: | 2.2 to 3.3 GHz |
| Waveguide Size / Flange: | EIA WR-340 / Standard UDR |
| Standard Gain / Pattern: | 10 dBi Typical / 30°×29° Beam |
| Max CW Power / Weight: | 1000 Watts / 820 g Core Build |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/18 | |
