Description & Specification

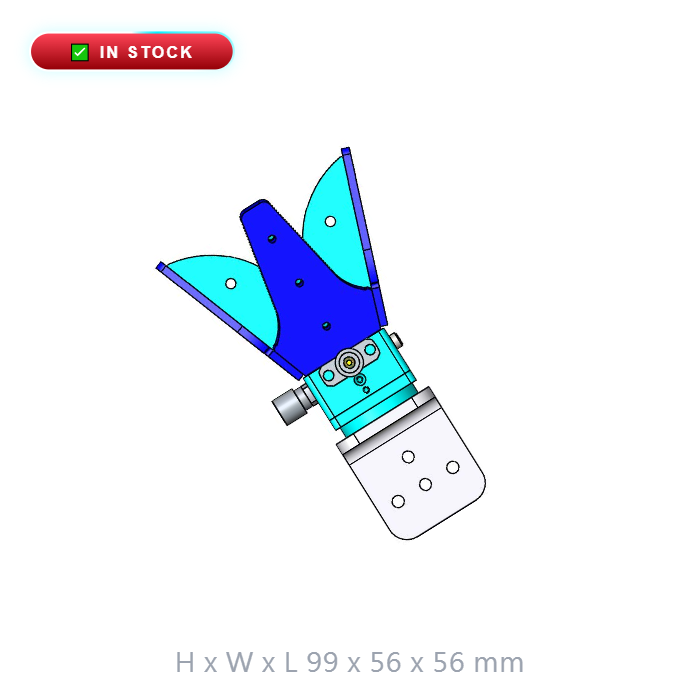

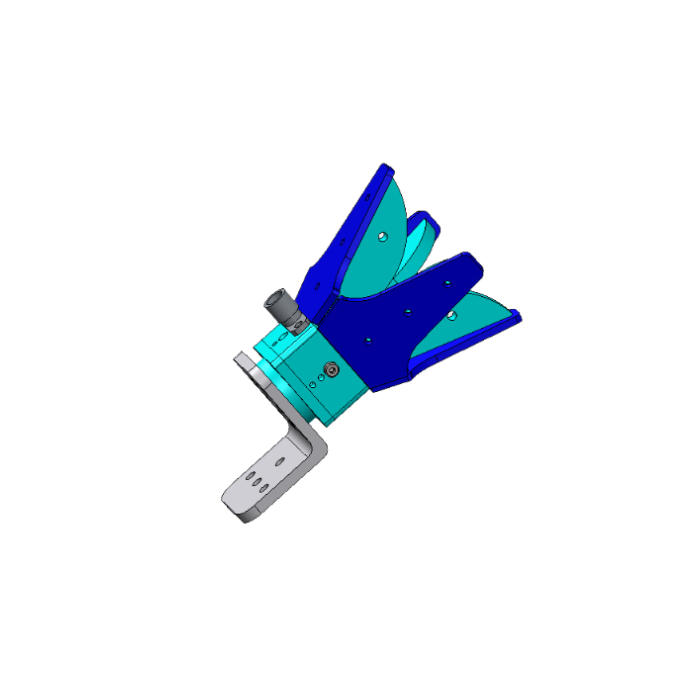

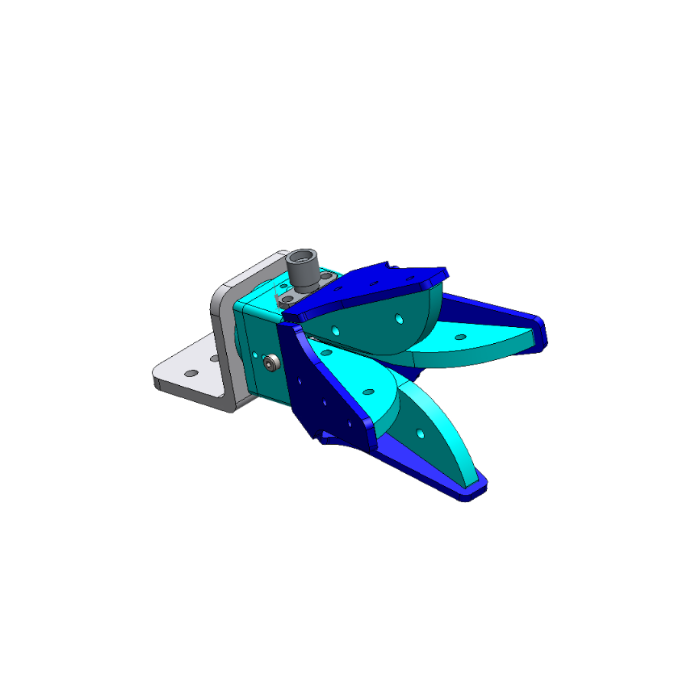

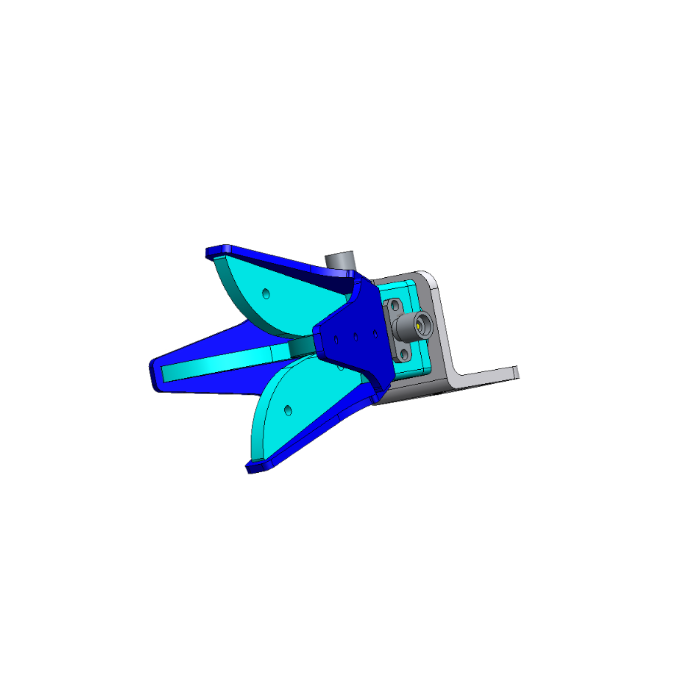

HR-0818GB-KF Double Ridged Broadband Waveguide Horn
Precision Wideband Analysis | Professional RF Measurement | 8 GHz – 18 GHz | 15 dBi
The HR-0818GB-KF is a high-performance Double Ridged Waveguide Horn Antenna specifically engineered for professional wideband RF testing across the 8 GHz to 18 GHz frequency spectrum. This laboratory-grade antenna provides stable gain characteristics (8 to 15 dBi) and refined radiation patterns, making it an essential tool for high-frequency signal analysis, EMI/EMC testing, and antenna gain calibration. Featuring a high-precision K-Female (2.92mm) connector and robust construction, it ensures superior Signal Integrity. Expertly manufactured in Taiwan, it is built to meet the most demanding industrial and scientific measurement standards.
Electrical RF Performance
| Frequency Range | 8 GHz - 18 GHz |
| Antenna Gain | 8 dBi to 15 dBi |
| V.S.W.R | Typical 2.0 |
Mechanical & Interface Data
| Connector Style | K-Female (2.92mm) |
| Dimensions (H x W x L) | 99 x 56 x 56 mm |
| Weight | 66.22 g |
| Origin | Made in Taiwan |
Millimeter-Wave Precision
Seamlessly covers the 8 GHz to 18 GHz range, providing an ideal solution for modern high-frequency signal analysis and radar system testing.
High-Precision K-Type Connector
Equipped with a precision 2.92mm (K-Female) connector to ensure low insertion loss and excellent signal connectivity across the entire band.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, ensuring consistent directional performance and laboratory-grade durability.
Optimized Geometry
Optimized double ridged geometry ensures stable gain and pure radiation patterns for critical high-frequency microwave testing.
Inquire About Professional Horn Solutions
Contact our engineering team for specialized gain calibration data, custom mounting solutions, or technical support regarding high-gain broadband setups.
