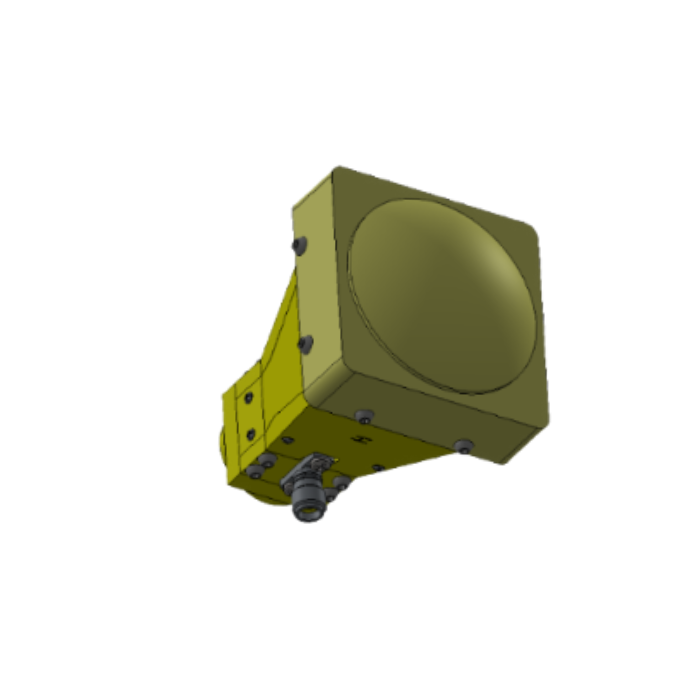

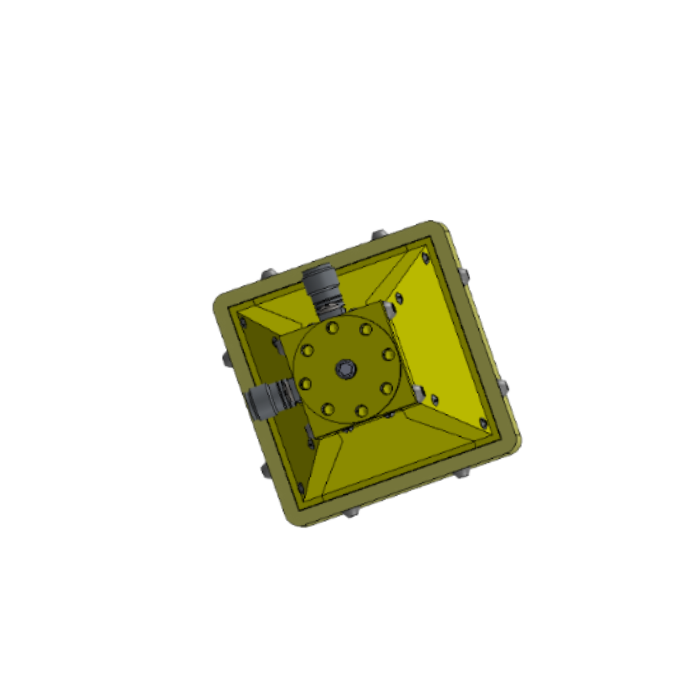

7 GHz to 65 GHz LENS Dual-polarized Horn Antenna
High-Frequency Precision Reference Radiator | Model: HQ-0765GB-VF
The HQ-0765GB-VF is a high-performance LENS Dual-polarized Horn Antenna expertly engineered for professional wideband RF testing across an extensive 7 GHz to 65 GHz frequency range. This laboratory-grade antenna utilizes integrated dielectric LENS technology to achieve optimized radiation pattern symmetry and exceptional gain stability in high-frequency applications. Featuring premium, precision-machined 1.85mm Female coaxial ports, it is an essential instrument for multi-band millimeter-wave measurements, next-generation 5G/6G hardware development, and advanced vehicular EMC/EMI testing setups. Developed and manufactured in Taiwan, it functions as a highly durable reference standard that preserves absolute Signal Integrity across extreme millimeterwave frequencies.
RF & Electromechanical Data
| Frequency Range | 7 GHz to 65 GHz (Continuous Wideband) |
| Antenna Radiator Architecture | LENS-Enhanced Dual-Polarized Horn |
| Coaxial Connector Interface | 1.85mm Female Ports (Precision V-Type Compatible) |
| Nominal Impedance | 50 Ohms |
Mechanical & Hardware Attributes

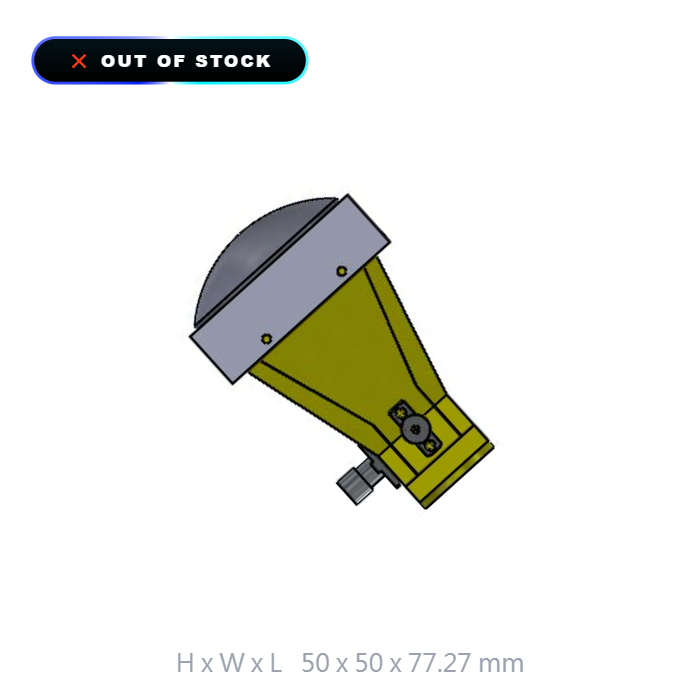

| Physical Dimensions (H x W x L) | 50 x 50 x 77.27 mm |
| Estimated Net Weight | 294.22 g |
| Body Composition Material | High-Grade Structural Alloy with Precision Finish |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Millimeter-wave Performance
Continuous coverage from 7 GHz up to 65 GHz, supporting the most demanding high-frequency wireless standards, next-generation millimeterwave frameworks, and advanced automotive radar evaluation systems.
Dual-Polarization Stability
Enables instantaneous evaluation and simultaneous testing of orthogonal signal polarizations, delivering clean cross-polarization isolation and comprehensive data for complex spatial RF analysis.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control protocols, ensuring exceptional mechanical tolerances, phase center flatness, and enduring calibration stability.
LENS Enhanced Geometry
Integrated dielectric lens design refines the output beamwidth profile and side-lobe radiation characteristics, ensuring precise directional boresight alignment in demanding instrumentation environments.
Inquire About Precision Millimeter-Wave Solutions
Contact our technical engineering team today to obtain certified gain tracking plots, individualized V.S.W.R metrics, non-reflective absorber mount accessories, or custom multi-axis positioning interfaces.
