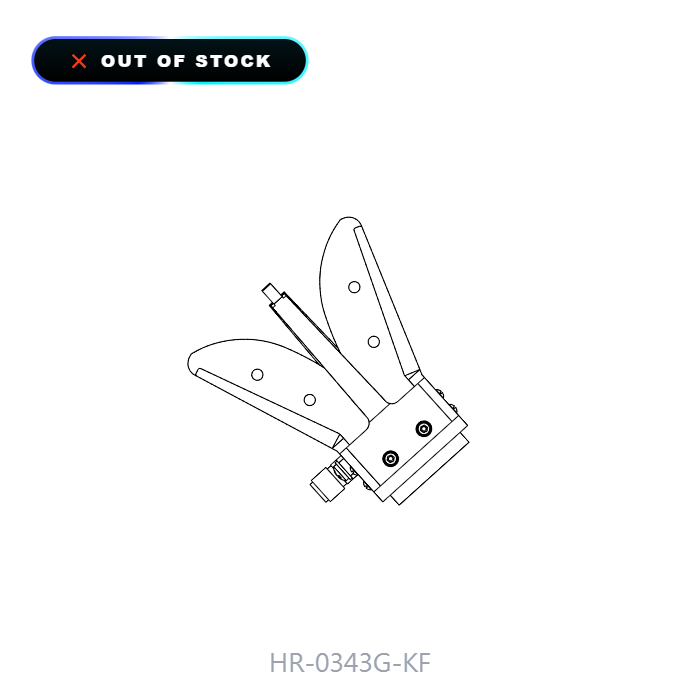

3.3GHz to 43.5GHz Open Boundary Quad-Ridged Horn Antenna
Dual Linear Polarization | 2.92mm (K-Female) | Model: HR-0343G-KF
The HR-0343G-KF is a high-precision Open Boundary Quad-Ridged Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the ultra-wideband spectrum from 3.3 GHz to 43.5 GHz, it provides stable directional gain from 2.5 to 12 dBi with a typical VSWR of 2.0. Featuring an optimized open boundary quad-ridged structure measuring 50 x 50 x 56 mm, it supports dual linear orthogonal polarization with excellent cross-polarization isolation. Constructed from precision CNC-machined aluminum alloy weighing approximately 150 g (136.96 g bare unit), it supports power handling up to 25W CW / 75W Peak and is fitted with high-frequency 2.92mm (K-Female) connectors. It serves as an essential measurement standard for radar testing, broadband spectrum monitoring, EMI/EMC compliance, and microwave laboratory validation.
Technical Specifications
| Frequency Range | 3.3 - 43.5 GHz |
| Antenna Type | Open Boundary Quad-Ridged Horn |
| Nominal Gain | 2.5 - 12 dBi |
| VSWR | Typical 2.0 |
| Polarization | Dual Linear (Orthogonal) |
| Power Handling | 25W CW / 75W Peak |
| Impedance | 50 Ω |

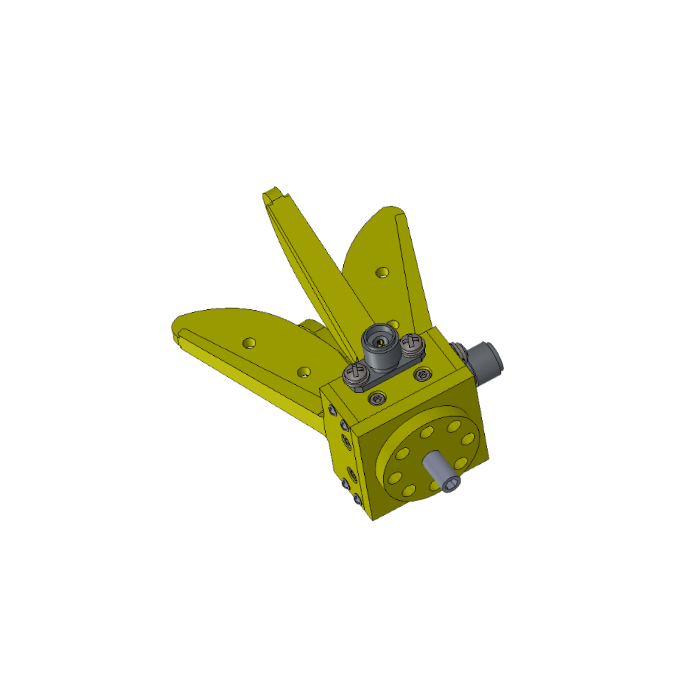

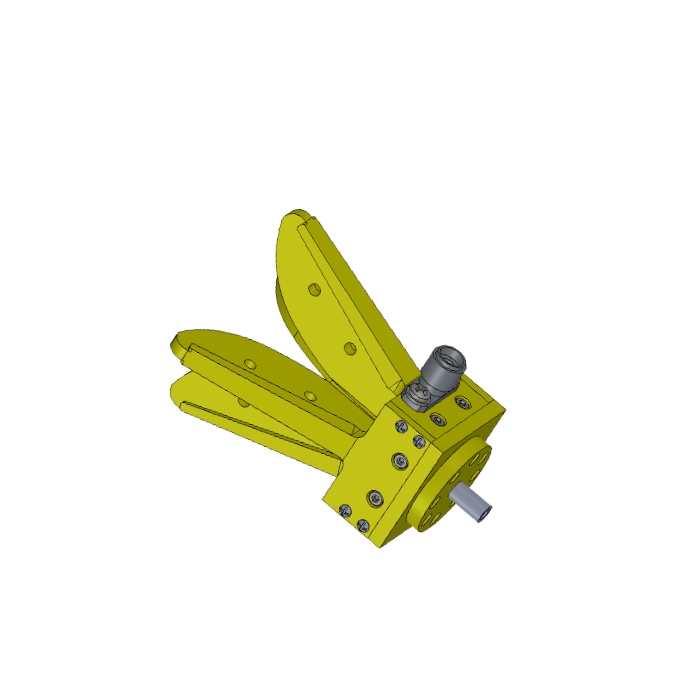

Mechanical & Physical Data

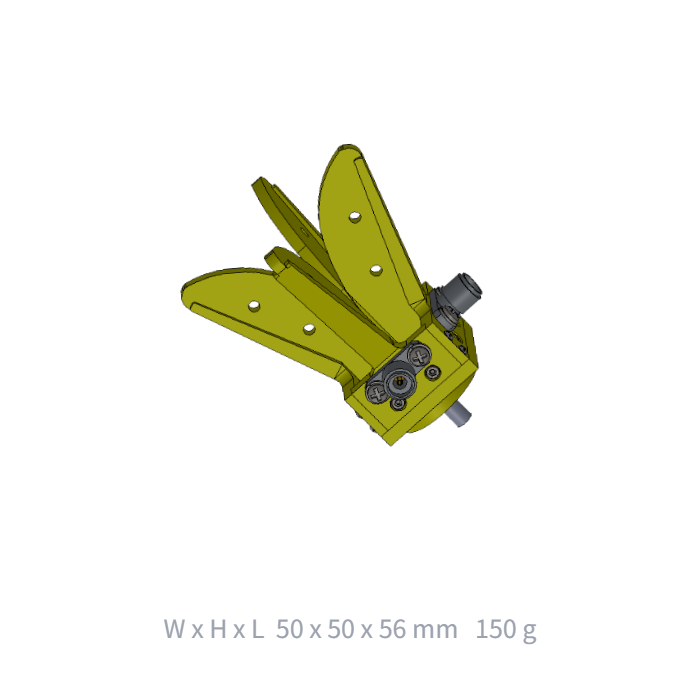

| Dimensions (W x H x L) | 50 x 50 x 56 mm |
| Weight | 150 g (Estimated ~136.96 g) |
| Body Material | Precision Aluminum Alloy |
| Connector | 2.92mm Female (K-Female) |
| Mounting Interface | Precision Mounting Base |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights

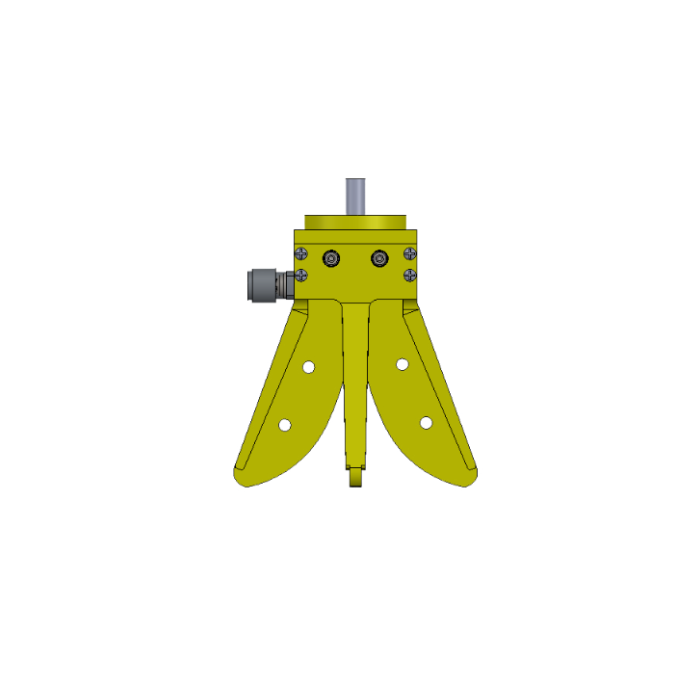

Quad-Ridged Open Boundary
Open boundary quad-ridged geometry minimizes internal reflections and delivers stable radiation patterns across 3.3 GHz to 43.5 GHz.

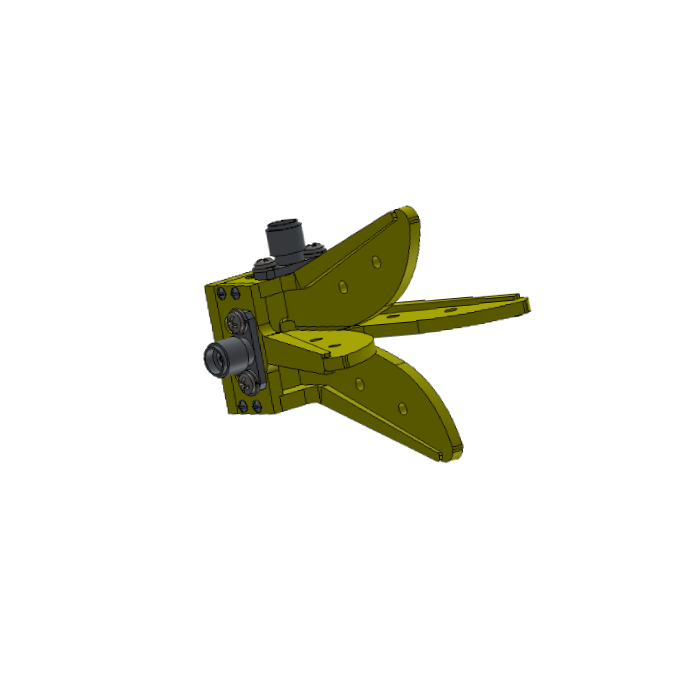

Dual Linear Polarization
Integrated dual orthogonal ports allow simultaneous horizontal and vertical signal measurement with high channel isolation.

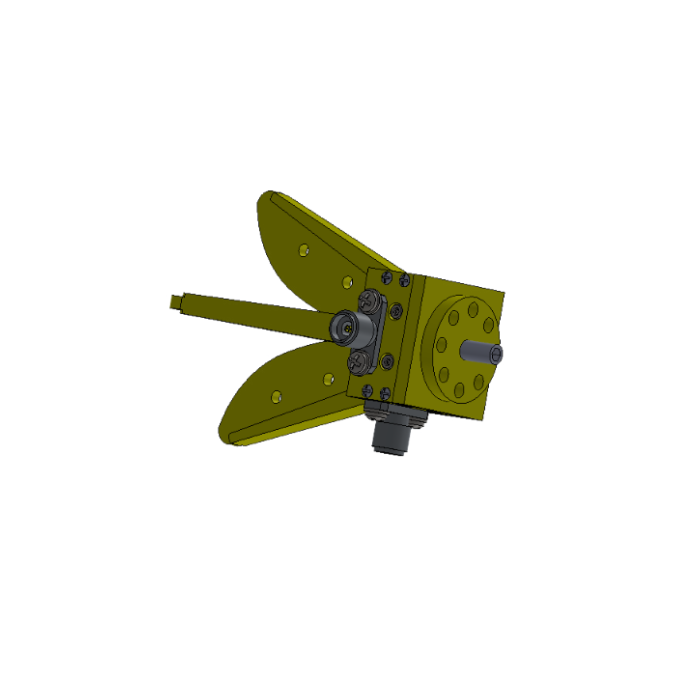

Precision 2.92mm Connector
Fitted with high-frequency 2.92mm (K-Female) connectors ensuring low insertion loss and dependable millimeter-wave mating.
Taiwanese Precision
Precision CNC machined from high-grade aluminum alloy in Taiwan for maximum mechanical repeatability and RF stability.
