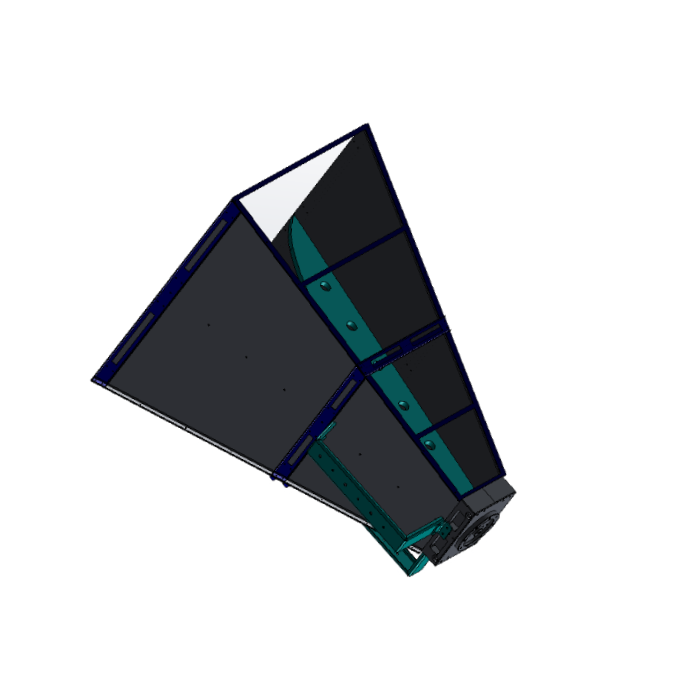

300 MHz to 10 GHz Double Ridged Waveguide Horn Antenna
High-Power Handling Reference Radiator | Model: HA-03M10GH-NF
The HA-03M10GH-NF is a high-power Double Ridged Broadband Waveguide Horn Antenna expertly designed for professional wideband RF testing across an extensive 300 MHz to 10 GHz frequency range. This laboratory-standard antenna features optimized dual-ridge internal geometry to achieve an exceptionally wide operating bandwidth, delivering smooth gain characteristics from 4 to 16 dBi and stable directional pattern configurations. Engineered for severe testing environments, it manages extreme continuous wave power levels up to 1000 Watts (CW) at 1 GHz and 200 Watts (CW) at 12 GHz. Fully developed and manufactured in Taiwan, this heavy-duty antenna utilizes a precision Stainless Steel (SUS) N-Female connector interface, making it an indispensable instrument for multi-band EMC/EMI compliance immunity testing, anechoic chamber calibration, and industrial high-power signal monitoring deployments.
RF & Electromechanical Data
| Frequency Range | 300 MHz to 10 GHz (Continuous Broadband) |
| Antenna Nominal Gain | 4 to 16 dBi |
| Maximum Input Power (CW) | 1000 Watts @ 1 GHz | 200 Watts @ 12 GHz |
| Nominal Impedance | 50 Ohms |
Mechanical & Hardware Attributes
| Antenna Design Profile | Double Ridged Waveguide Horn |
| Coaxial Connector Interface | N-Female (Stainless Steel SUS) |

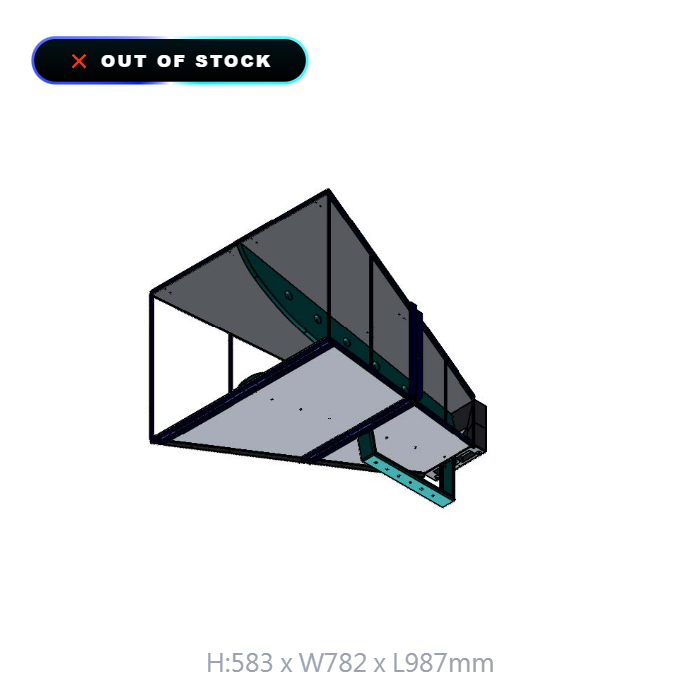

| Physical Dimensions (H x W x L) | 583 x 782 x 987 mm |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
High Power Handling
Capable of managing up to 1000 Watts continuous wave (CW) and 3KW peak power, making it the definitive option for intensive electromagnetic immunity testing and high-power transmission arrays.
Broadband Coverage
Continuous coverage across the 300 MHz to 10 GHz spectrum eliminates the mechanical need to swap multiple antennas during wideband laboratory test setups, optimizing cycle times.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control protocols, ensuring exceptional structural rigidity, pattern cleanliness, and enduring calibration stability.

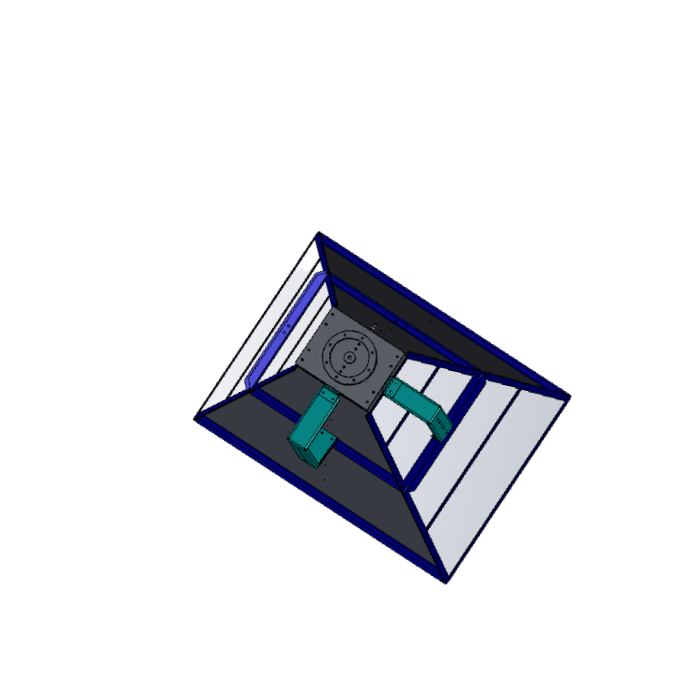

Rugged Geometry Optimization

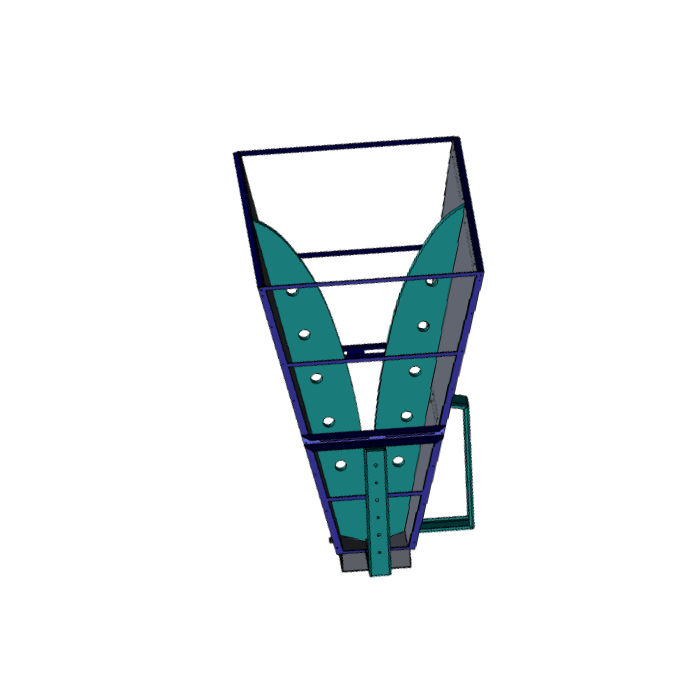

Heavy-duty architecture with optimized internal guide profiles effectively minimizes boundary interference, delivering smooth cross-polarization isolation and pure toroidal fields for critical testing.
Inquire About Broadband Horn Solutions
Contact our technical engineering team today to obtain certified gain factor metrics, specialized multi-axis positioning mounts, heavy-duty tripod configurations, or full V.S.W.R plot reports.
