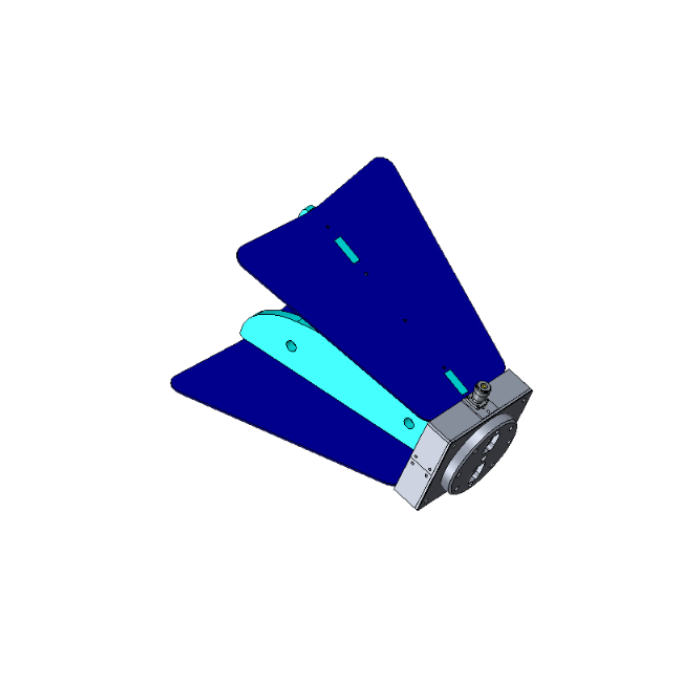

700MHz to 18GHz N-Female Open Boundary Double Ridge Broadband Horn Antenna
Broadband Performance | Open Boundary Design | Model: HB-07M18GA-NF
The HB-07M18GA-NF is a professional-grade Open Boundary Double Ridge Broadband Horn Antenna specifically engineered for high-precision RF testing from 700 MHz to 18 GHz[cite: 2]. This antenna offers a stable gain of 4 to 15 dB and optimized radiation characteristics, making it an essential tool for EMC/EMI testing, antenna gain measurements, and anechoic chamber calibrations[cite: 2]. Expertly crafted in Taiwan, it features a ruggedized construction with a precision stainless steel N-Female (SUS) connector, ensuring exceptional signal integrity and reliability across its extensive frequency range[cite: 2].

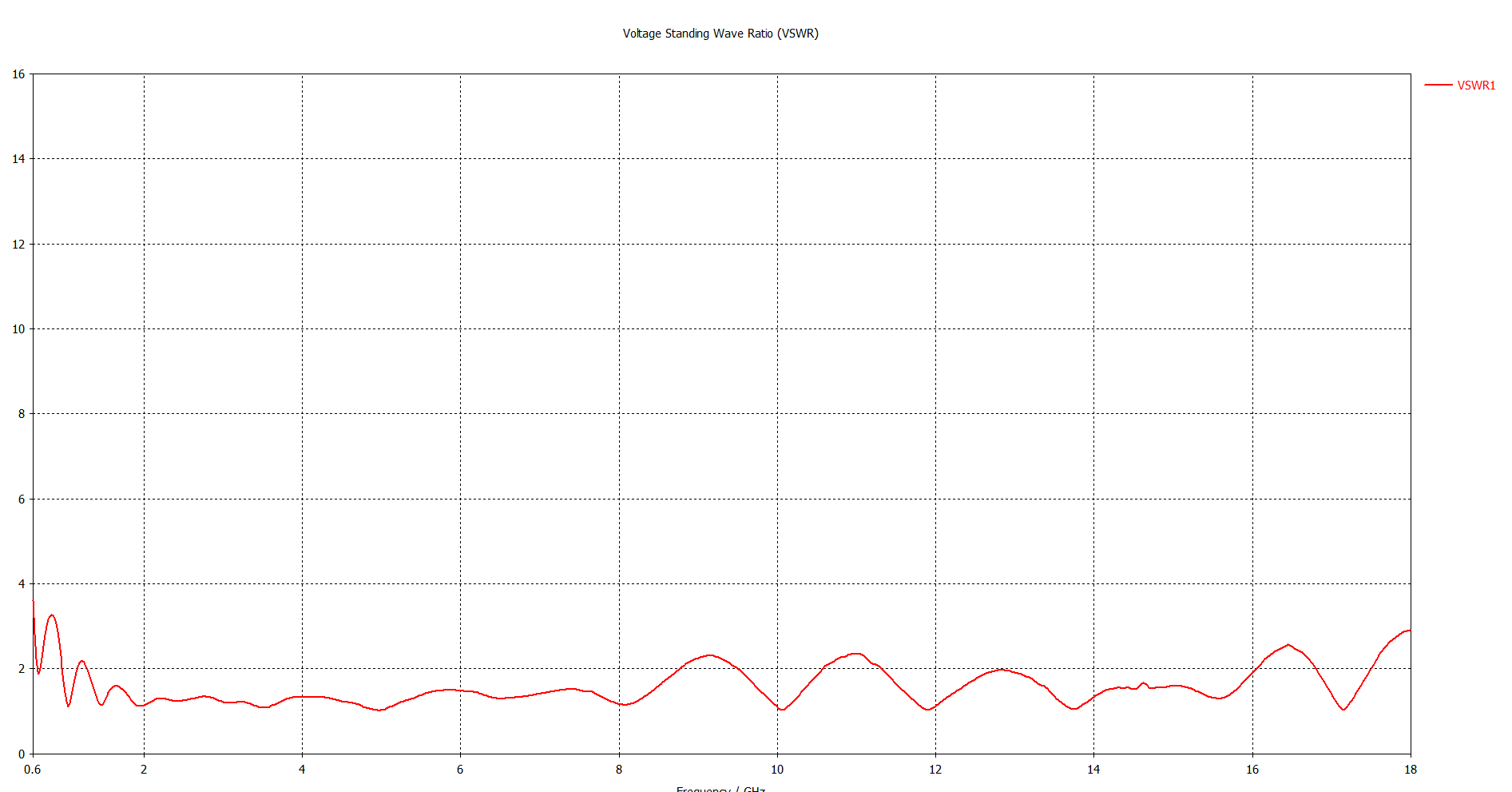

Technical Specifications
| Frequency Range | 700 MHz - 18 GHz |

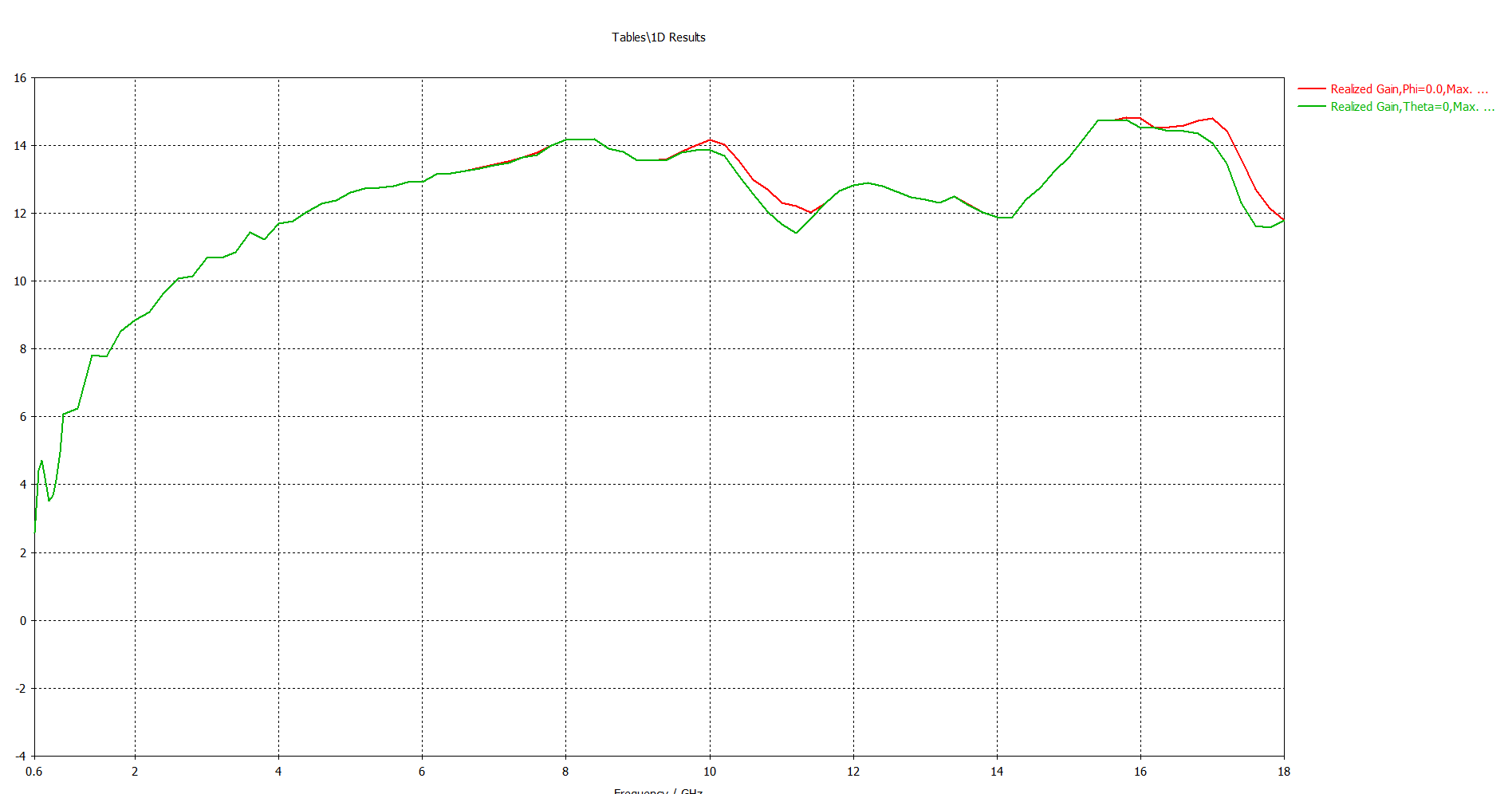

| Antenna Gain | 4 - 15 dB |
| -3dB Beamwidth | V: 16° / H: 15° |
| Max Power (CW) | 125 W |
| Peak Power | 350 W |
| Connector | N-Female (SUS) |

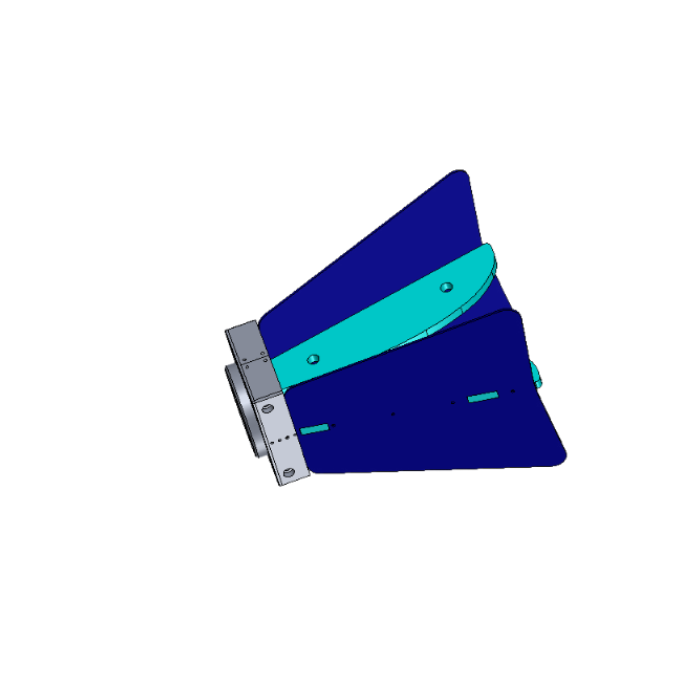

Mechanical & Physical Data

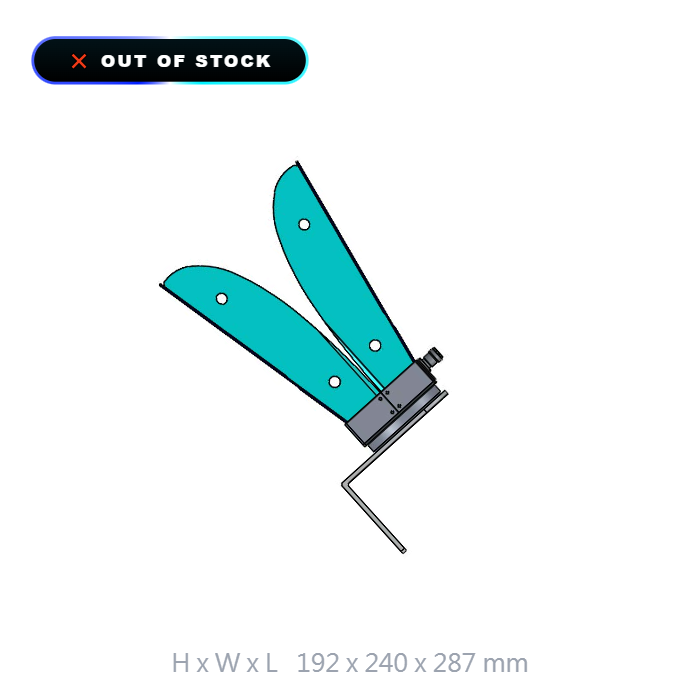

| Dimensions (H x W x L) | 192 x 240 x 287 mm |
| Weight | 2500 g |
| Mounting Thread | M8 x 1.25 / M6 x 1.0 |
| Country of Origin | Taiwan |
Key Design & Feature Highlights
Broadband Continuous Coverage
Covers a wide continuous frequency range from 700 MHz to 18 GHz, eliminating the need for multiple antenna swaps in lab setups[cite: 2].
Open Boundary Architecture
Optimized open boundary geometry significantly reduces interference and ensures pure radiation patterns for critical measurements.
High-Reliability Construction
Precision-manufactured in Taiwan with premium components, providing stable performance and durability in demanding RF environments[cite: 2].
High Precision Directivity
Engineered for high-precision directional measurements and stable signal integrity in professional microwave testing.
