WR90 Waveguide Input Antenna (WI)
- Select
WI Series • X-Band (8.2 – 12.4 GHz)
FT-RF WR90 Waveguide Input Antenna
FT-RF WR90 Waveguide Input Antenna is a precision-engineered X-Band waveguide input antenna (8.2 GHz to 12.4 GHz) designed for seamless integration into high-frequency waveguide systems. With an optimized input structure, it provides excellent signal coupling and stable radiation characteristics for defense radar cross-section (RCS) testing, anechoic chamber calibration, and high-precision measurement systems.
Constructed from high-precision CNC machined aluminum alloys, this antenna guarantees high cross-polarization rejection (>30 dB) and smooth gain flatness across the entire frequency band, ensuring reliable and repeatable measurement results in laboratory environments.
🛠️ Engineering & Customization Options
Tailored structural designs and calibration deliverables:
- Custom Flange: Tailored flange profiles available.
- Waveguide Size: WR90 or customized sizes.
- Matched Sets: Precision dual-channel pairs.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 8.2 GHz to 12.4 GHz (X-Band) |
| VSWR | < 1.25 : 1 |
| Connector Interface | Waveguide Input (WR90) |
| Flange Type | UG-39/U / FDP100 Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
WI-90-UBR-10

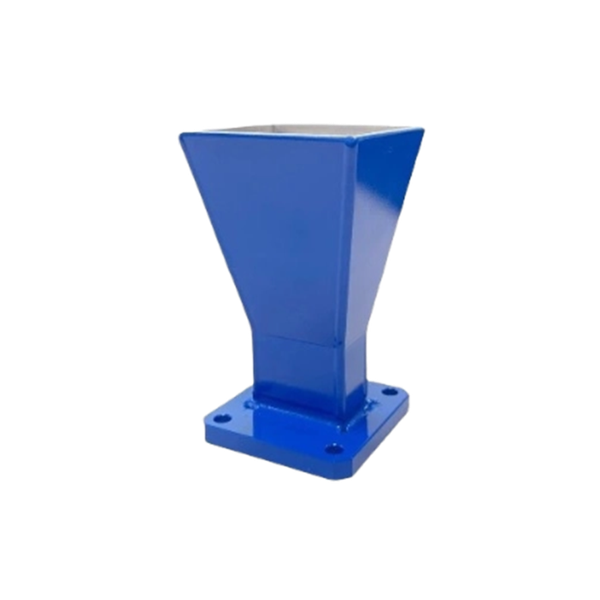

WR90 Waveguide Horn Antenna UBR UG-39/U Flange, without Adapter, operating from 8.2 to 12.4GHz, 10 dbi
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR90 (X-Band) |
| Stock: | 18 |
| 2026/06/09 | |
WI-90-UBR-15
WR90 Waveguide Horn Antenna Flange: UBR UG-39/U without Adapter, operating from 8.2 GHz to 12.4GHz, 15dbi gain
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 15 dBi |
| Waveguide Size: | WR90 (X-Band) |
| Stock: | 52 |
| 2026/06/09 | |
NEW
WI-90-UBR-15E
WR90 Waveguide E-Plane sectoral Horn Antenna without Adapter, UBR UG-39/U Flange, operating from 8.2 to 12.4 GHz, 15dbi gain
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Sectoral Horn Antenna |
| Nominal Gain: | 15 dBi (16°×110°) |
| Waveguide Size: | WR-90 (UBR / 500W) |
| Stock: | 0 |
| 2026/08/24 | |
NEW
WI-90-UBR-15H
WR90 Waveguide Horn Input Flange: UBR UG-39/U, 8.2 GHz to 12.4 GHz 15dbi, H-Plane Sectoral
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR-90 (No Adapter / 25g) |
| Stock: | 4 |
| 2026/06/09 | |
WI-90-UBR-20
WR90 Waveguide Horn Antenna without Adapter, UBR UG-39/U Flange, operating from 8.2 to 12.4 GHz, 20 dbi gain
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 20 dBi |
| Waveguide Size: | WR90 (X-Band) |
| Stock: | 27 |
| 2026/06/09 | |
WI-90-UBR-20E
WR90 8.2 GHz to 12.4 GHz 20dbi E-Plane Waveguide Horn Input Flange: UBR UG-39/U
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi Calibrated (12°×91° Beam) |
| Waveguide Size: | WR-90 (UG-39/U / 500W) |
| Stock: | 0 |
| 2026/06/22 | |
WI-90-UBR-25-BL
WR90 Waveguide Horn Antenna UBR UG-39/U Flange, without Adapter, operating from 8.2 to 12.4GHz, 25 dbi
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 25 dBi (High Gain) |
| Waveguide Size: | WR90 (X-Band) |
| Stock: | 4 |
| 2026/06/09 | |
NEW
WI-90-PBR-10
WR90 Waveguide Horn Antenna, operating from 8.2 to 12.4GHz, 10 dbi, PBR Flange (without Adapter)
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi (54°×54°) |
| Waveguide Size: | WR-90 (PBR / 500W) |
| Stock: | 0 |
| 2026/08/24 | |
NEW
WI-90-PBR-10E
WR90 Waveguide Horn Antenna, E-plane sectoral horn antenna, operating from 8.2 to 12.4GHz, 10 dbi, PBR Flange (without Adapter)
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | E-Plane Sectoral Horn |
| Nominal Gain: | 10 dBi (112°×46°) |
| Waveguide Size: | WR-90 (PBR UG-39/U / 500W) |
| Stock: | 0 |
| 2026/08/24 | |
NEW
WI-90-PBR-10H
WR90 Waveguide Horn Antenna, H-Plane sectoral horn antenna, operating from 8.2 to 12.4GHz, 10 dbi, PBR Flange (without Adapter)
View Details
FT-RF
| Frequency Range: | 3.3 - 4.9 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 300 Watts (CW) |
| Waveguide Size: | WR-229 (PAR/CPR / N-F) |
| Stock: | 0 |
| 2026/06/11 | |
NEW
WI-90-PBR-10-R
WR90 Waveguide Horn Antenna with radome design, operating from 8.2 to 12.4GHz, 10 dbi, PBR Flange (without Adapter)
View Details
FT-RF
| Frequency Range: | 2.6 - 3.95 GHz |
| Antenna Type: | Waveguide to Coaxial Adapter |
| Nominal Gain: | 300 Watts (CW) |
| Waveguide Size: | WR-284 (PAR / N-Female) |
| Stock: | Contact us |
| 2026/06/15 | |
WI-90-UBR-10E
WR90(8.2 to 12.4GHz)10dbi E-Plane Sector Waveguide Horn Input / Flange:UBR-UG-39/U
View Details
FT-RF
| Frequency Range: | 8.2 - 12.4 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR90 (X-Band) |
| Stock: | 4 |
| 2026/06/09 | |
