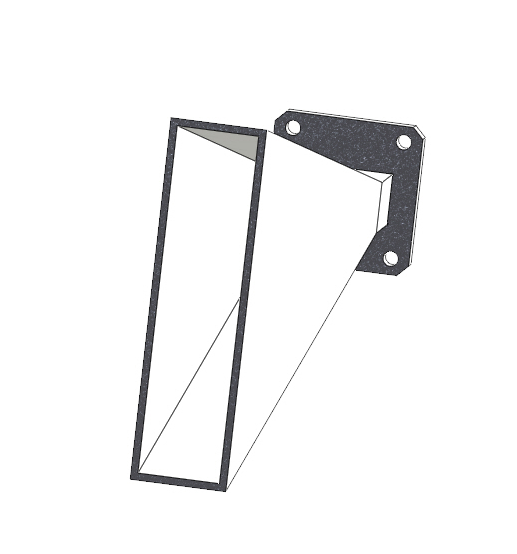

8.2 GHz to 12.4 GHz WR-90 E-Plane Sectoral Horn Antenna
Model: WI-90-UBR-15E | 15 dBi Fan-Beam | X-Band Surveillance
The WI-90-UBR-15E is a precision-engineered X-Band Sectoral Horn Antenna professionally flared in the E-plane to deliver specialized Fan-Beam characteristics. Operating within the 8.2 GHz to 12.4 GHz spectrum, this antenna produces a highly focused 16° H-plane beam while maintaining an expansive 110° coverage in the E-plane. It is an essential instrument for radar imaging, sectoral surveillance, and high-intensity EMI/EMC Testing where vertical coverage and horizontal resolution are critical.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 8.2 GHz to 12.4 GHz |
| Waveguide Standard | WR-90 / R100 / WG16 |
| Antenna Type | E-Plane Sectoral (Fan-Beam) |
| Nominal Gain | 15 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H-Plane) | 16° (Focused Resolution) |
| -3dB Beamwidth (E-Plane) | 110° (Expansive Coverage) |
| Maximum Power Handling | 500 Watts (CW) |
Mechanical & Construction

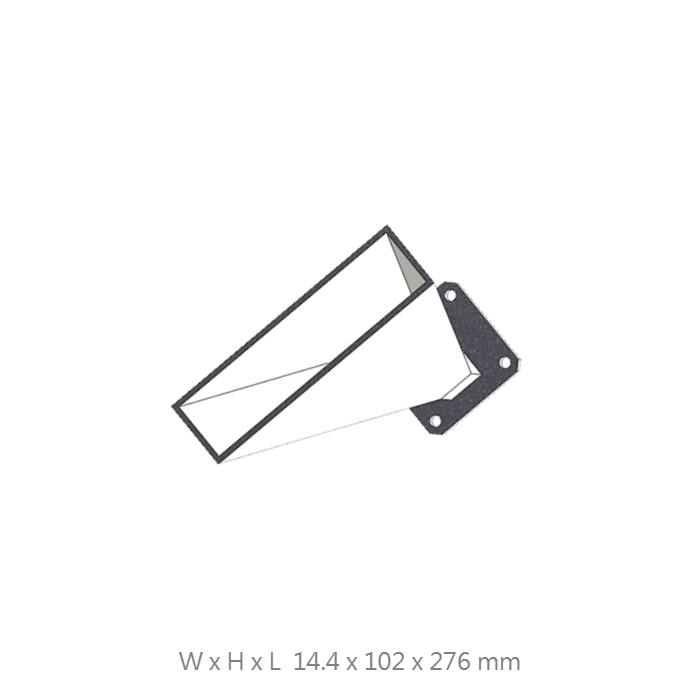

| Dimensions (W x H x L) | 14.4 x 102 x 276 mm |
| Net Weight | 250 g (Precision Aluminum) |
| Waveguide Flange | UG-39/U Style (UBR) |
| Protection Structure | Waterproof Customization Available |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
Expansive E-Plane Coverage
Delivers a wide 110° sectoral coverage in the E-plane combined with a sharp 16° H-plane beam, providing the ideal pattern for radar resolution and broad vertical scanning applications.
Direct Waveguide Integration
Equipped with a standardized UG-39/U flange for direct coupling with WR-90 waveguide systems, eliminating adapter losses and ensuring maximum efficiency in high-power setups.
500W Continuous Stability
Built from premium-grade machined aluminum to handle robust 500W CW power loads, providing a reliable radiator for high-intensity laboratory and tactical field missions.
High-Fidelity Surveillance
Optimized for strip-map imaging and sectoral monitoring, ensuring superior gain flatness and electromagnetic pattern stability across the entire operating band.
Request a Professional Quote
Contact our engineering team to obtain individual radiation patterns, custom waterproof builds, or specialized mounting interfaces.
