HS-51-UBR-25-KF Standard Gain Horn Antenna
High-Power Microwave Solution | Precision WR-51 Waveguide | 15 GHz – 22 GHz | 25 dBi
The HS-51-UBR-25-KF is a high-performance Standard Gain Horn Antenna specifically engineered for professional wideband microwave testing across the 15 GHz to 22 GHz frequency spectrum. This laboratory-grade radiator provides a nominal gain of 25 dBi with exceptionally linear radiation patterns, making it an essential instrument for high-frequency signal analysis, anechoic chamber calibrations, and EMC pre-compliance testing. Featuring a high-precision WR-51 Waveguide structure with a standard UBR Flange, it supports maximum power handling up to 180W (CW) with a low VSWR of 1.3. Expertly manufactured from premium aluminum in Taiwan, it is built to meet demanding industrial and scientific calibration standards.
Electrical RF Performance
| Frequency Range | 15 GHz - 22 GHz |
| Nominal Antenna Gain | 25 dBi |
| V.S.W.R | 1.3 |
| Maximum Power Handling | 180 Watts (CW) |
| H-plane Beamwidth (-3dB) | 13° |
| E-plane Beamwidth (-3dB) | 12° |
Mechanical & Interface Data
| Waveguide Type | WR-51 |
| Waveguide Flange | UBR |

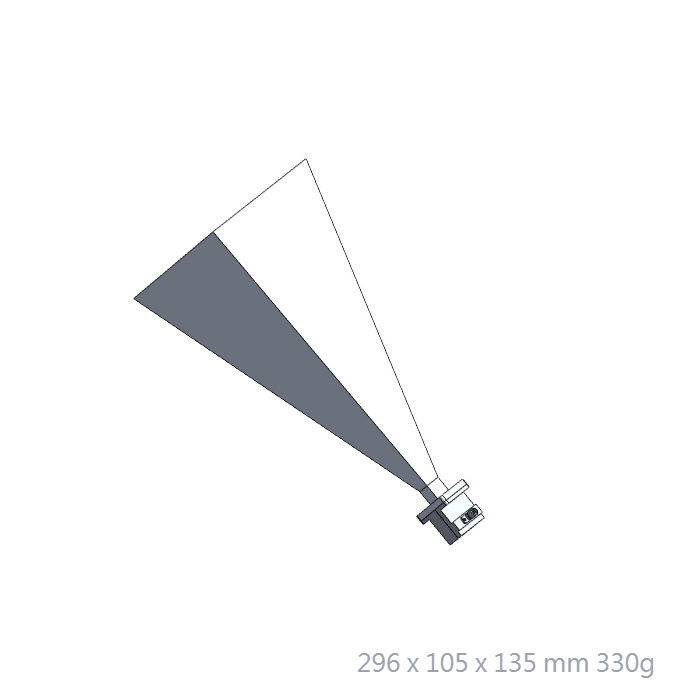

| Dimensions (W x H x L) | 135 x 105 x 296 mm |
| Net Weight | 330 g |
| Body Material | Aluminum |
| Manufacturing Origin | Made in Taiwan (FT-RF) |
High Gain Performance
Delivers a high 25 dBi directional gain coupled with narrow beamwidths (12°-13°) for precise microwave illumination and path loss calibrations.
Standard Waveguide Interface
Utilizes a precision WR-51 waveguide input with a robust UBR flange configuration to ensure secure alignment and optimal signal performance.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, providing reliable phase stability and enduring laboratory-grade consistency.
High-Power Aluminum Frame
Constructed from lightweight, premium aluminum alloy to support up to 180W power handling while maintaining stable thermo-mechanical properties.
Inquire About Professional Horn Solutions
Contact our engineering team for specialized gain calibration data, custom mounting solutions, or technical support regarding high-gain broadband setups.
