| Frequency Range Class | 15 to 22 GHz (K-Band Continuous Optimization) |
| Waveguide Standard Size | EIA WR-51 / R180 / WG19 Layout Geometry Architecture |
| Nominal Gain (Typical) | 10 dBi |
| V.S.W.R Profile (Max) | ≤ 1.3 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 500 Watts (CW Continuous Wave Thermal Limit) |
| -3dB Beamwidth (H-Plane) | 16° (Narrow Focused Azimuth Envelope) |
| -3dB Beamwidth (E-Plane) | 100° (Expansive Elevation Fan-Beam Optimization) |
| Nominal System Impedance | 50 Ohms |

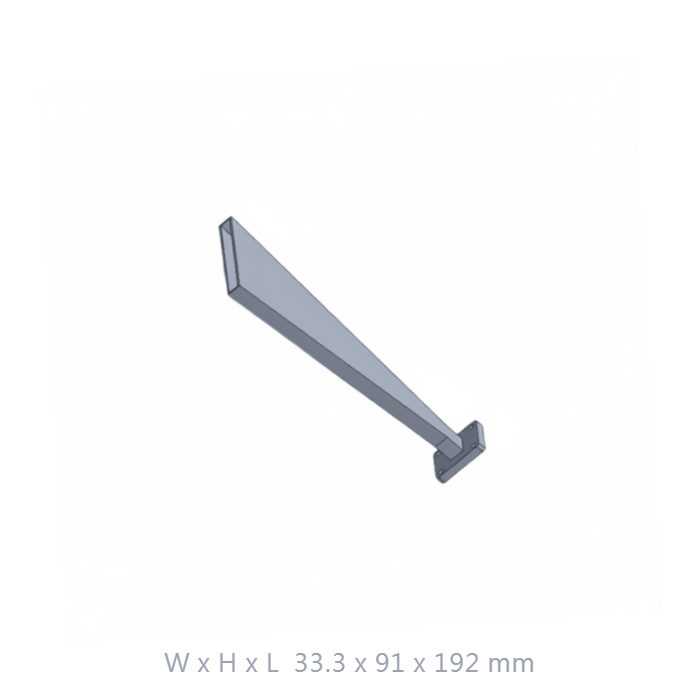

| Physical Dimensions (W x H x L) | 33.3 x 91 x 192 mm |
| Net Weight Profile | 105 g (Precision Ultra-Light Build) |
| Waveguide Flange Layout | Standardized UBR Style Square Interface Face |
| Input Interface Launcher | Direct Waveguide Input (No Adapter Power Loss) |
| Structural Body Material | High-Grade Precision Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Specialized sectoral flare yields a massive 100° beamwidth in the elevation plane, ideal for broad-area vertical illumination in EMC susceptibility testing and multi-point tracking arrays.
Designed with a direct WR-51 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-precision millimeter-wave setups.
Robustly machined from premium aluminum to handle massive 500W CW power loads while maintaining structural integrity during high-intensity Signal Management testing missions.
Optimized for the 15-22 GHz band, ensuring gain flatness and pattern stability required for advanced wireless research, satellite link characterization, and localized monitoring.
Contact our engineering team for specialized gain calibration data, custom mounting solutions, or technical support regarding high-gain broadband setups.
