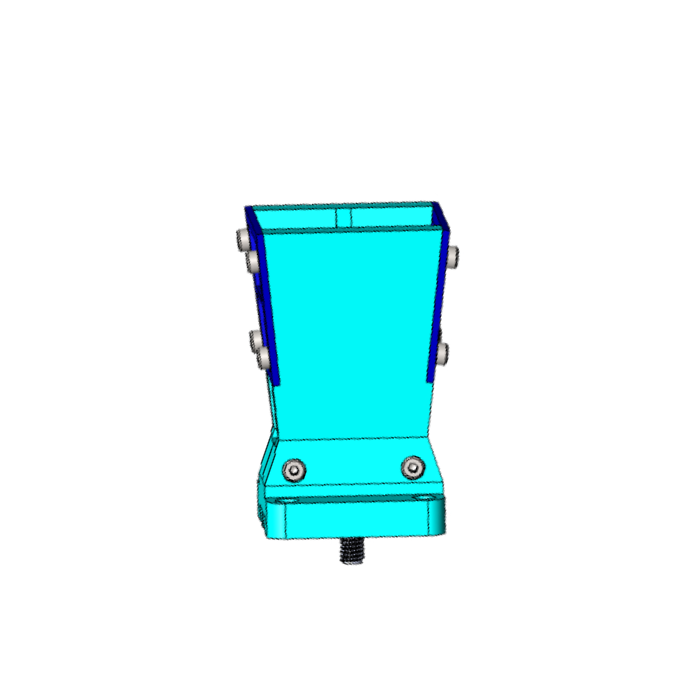

5 GHz to 55 GHz V-Female Double Ridged Broadband Waveguide Horn Antenna
Broadband Precision | Millimeter-Wave Performance | Model: HA-0555GA-VF
The HA-0555GA-VF is a high-performance Double Ridged Waveguide Horn Antenna specifically engineered for professional wideband RF testing across a broad 5 GHz to 55 GHz frequency range. This antenna provides consistent gain (5 to 12 dB) and stable directional patterns, making it an essential tool for millimeter-wave measurements, 5G development, and EMC/EMI testing. Expertly manufactured in Taiwan, it features a ruggedized construction with a precision V-Female (1.85mm) connector to ensure superior signal integrity in demanding laboratory environments.
Technical Specifications
| Frequency Range | 5 GHz to 55 GHz |
| Antenna Gain | 5 to 12 dB |
| -3dB Beamwidth | V: 26° / H: 26° |
| Max Power (CW) | 5 W |
| Peak Power | 30 W |
| Connector Style | V-Female (1.85mm) |

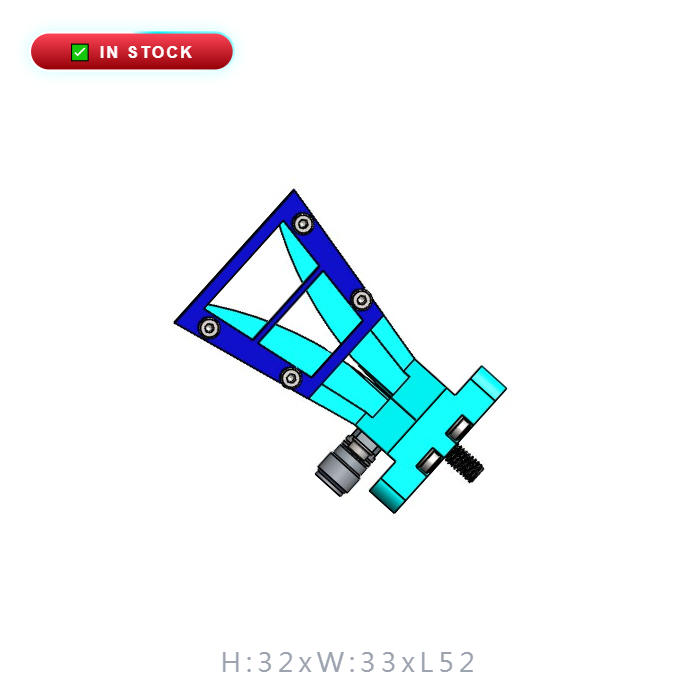

| Dimensions (H x W x L) | 32 x 33 x 52 mm |
| Weight | 60 g |
| Origin | Made in Taiwan |
Wideband Continuous Coverage
Seamlessly covers 5 GHz to 55 GHz, eliminating the need for multiple antenna swaps during wideband frequency analysis.

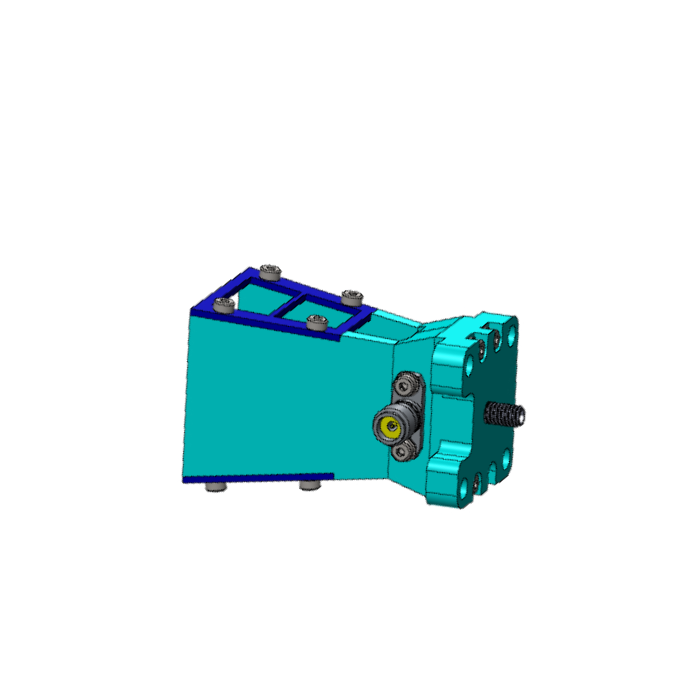

Precision Millimeter-Wave Connector
Equipped with a high-grade V-Female (1.85mm) interface for excellent signal transmission and reliability at high frequencies.
Compact & Lightweight
Precision-manufactured in Taiwan with a weight of only 60g, designed for easy integration into standard laboratory test setups.

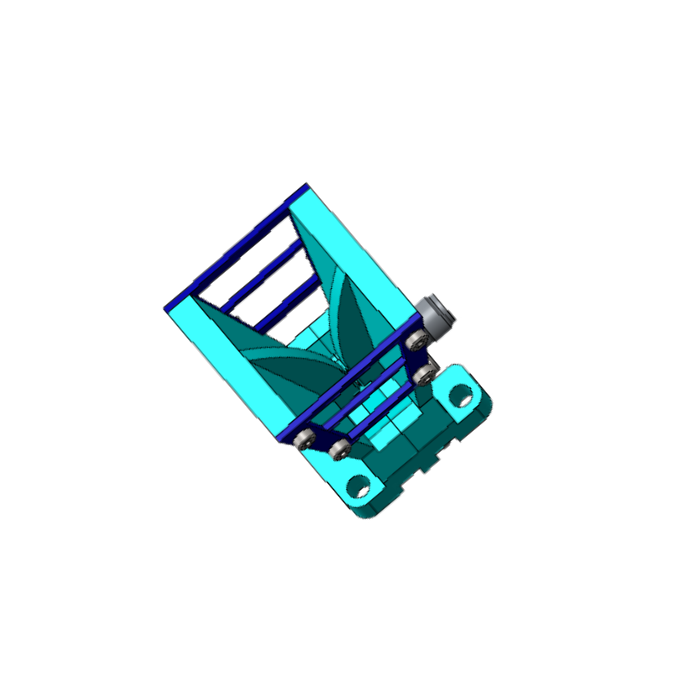

Optimized double ridged geometry ensures pure radiation patterns for critical high-frequency measurement applications.
