HA-025M12GH-NF High Gain Horn
High Power Type H Double-Ridged Horn | 250 MHz – 12 GHz | 15 dBi
The HA-025M12GH-NF is a high-performance, high-gain double-ridged horn antenna (Type: H) professionally engineered for demanding broadband testing and high-power communication systems across a wide 250 MHz to 12 GHz frequency range. This laboratory-grade antenna delivers an improved gain profile reaching up to 15 dBi, while demonstrating exceptional high power handling capability of 1KW peak power and 600W continuous wave (CW) power. Featuring a premium stainless steel N-Female interface and a robust aluminum alloy construction, it provides outstanding Signal Integrity, directional performance, and durability for advanced signal monitoring and EMC testing environments.
Electrical RF Performance
| Frequency Range | 250 MHz – 12 GHz |
| Antenna Type | High Gain Double-Ridged Horn (Type H) |
| Gain | 2 to 15 dBi |
| Max CW Power | 600W |
| Peak Power | 1KW (1000W) |
| Application | Advanced broadband testing, high-power communication, EMC testing, signal monitoring |
Mechanical & Interface Data
| Connector | N-Female (SUS) |

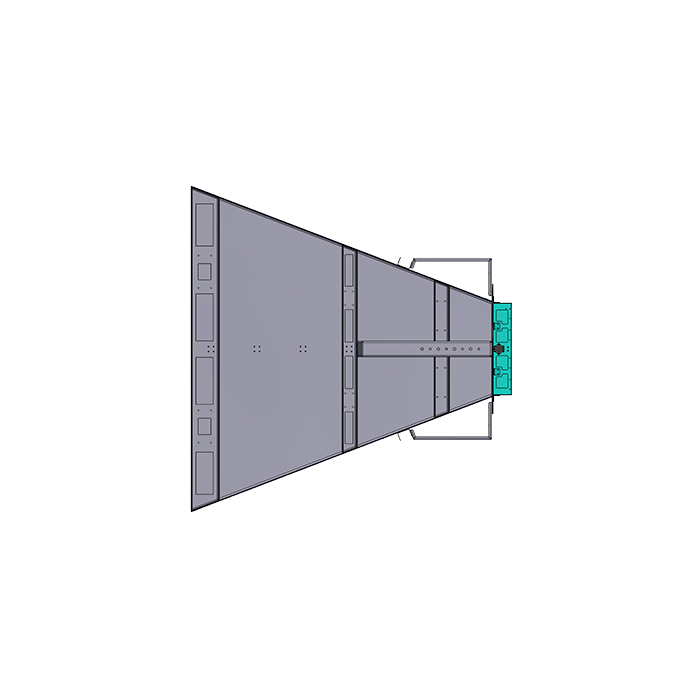

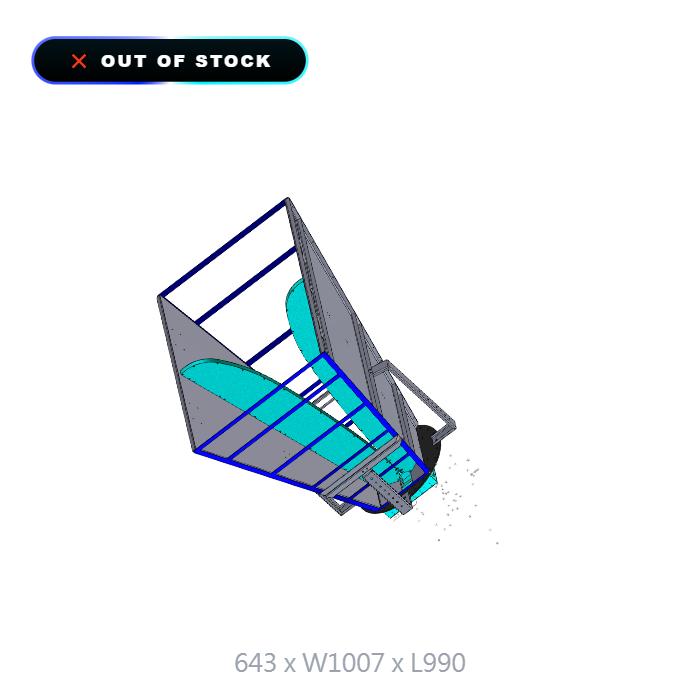

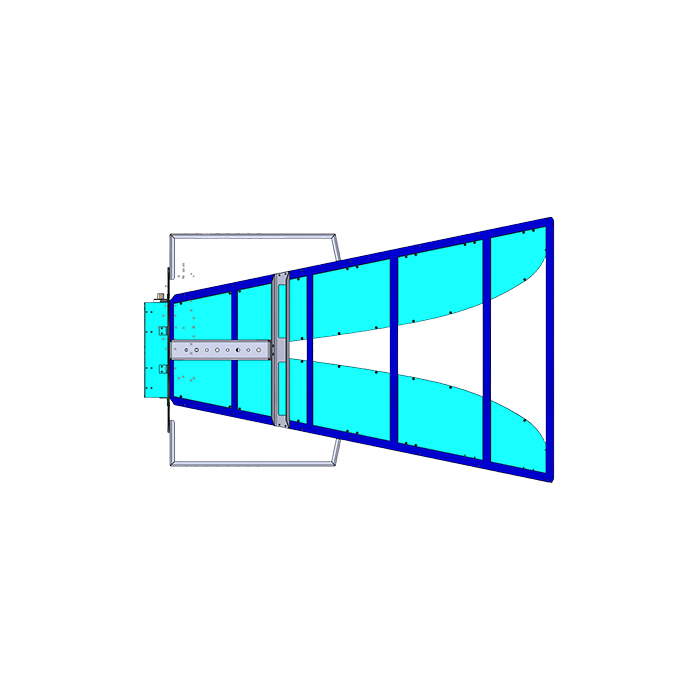

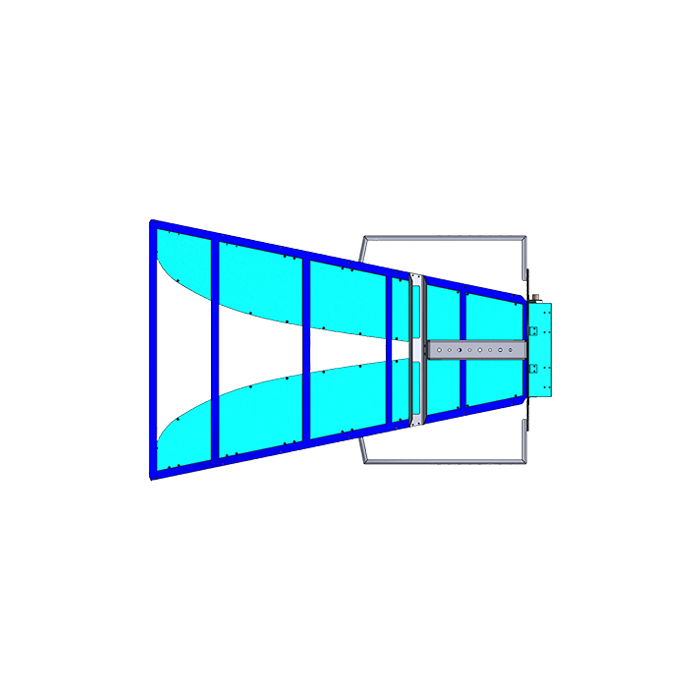

| Size (L x W x H) | 990 x 1007 x 643 mm |
| Weight (approx.) | 13 kg |
| Material | Aluminum alloy (standard) |
High Power Capacity
Supports 1KW peak power and 600W continuous wave power, making it exceptionally reliable for high-intensity transmission and communication fields.
Extended High-Gain Architecture
Provides an enhanced gain profile from 2 to 15 dBi, optimized for precise directionality across a broad sub-gigahertz to microwave spectrum.
Robust Structural Design
Constructed with premium standard aluminum alloy to achieve stable geometric tolerances, minimizing measurement deviations in complex setups.
Versatile Measurement Core
An ideal instrumentation asset for advanced wideband validation, critical EMC/EMI testing configurations, and high-precision signal monitoring architectures.
Inquire About Professional Horn Solutions
Contact our engineering team for specialized gain calibration data, custom mounting solutions, or technical support regarding high-gain broadband setups.
