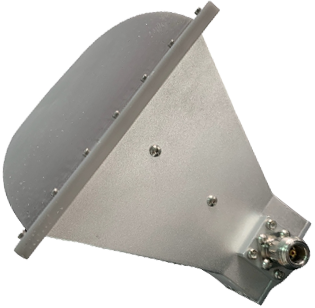

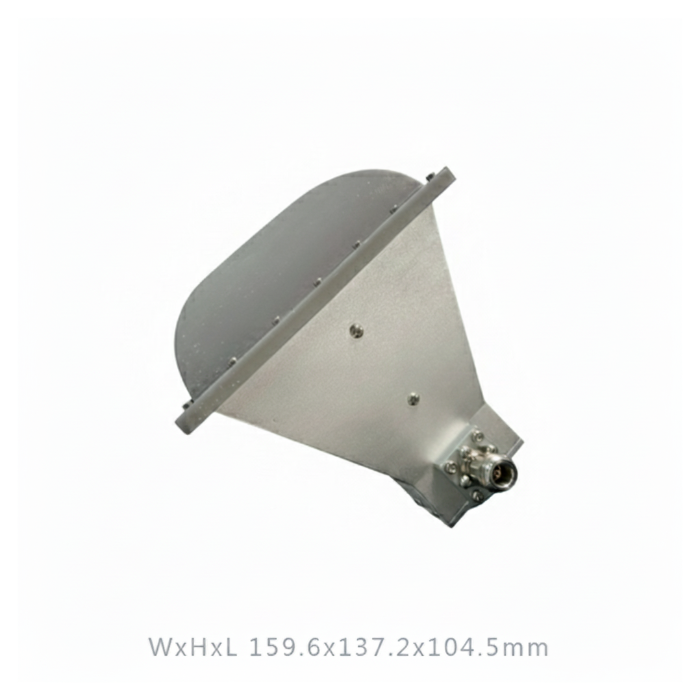

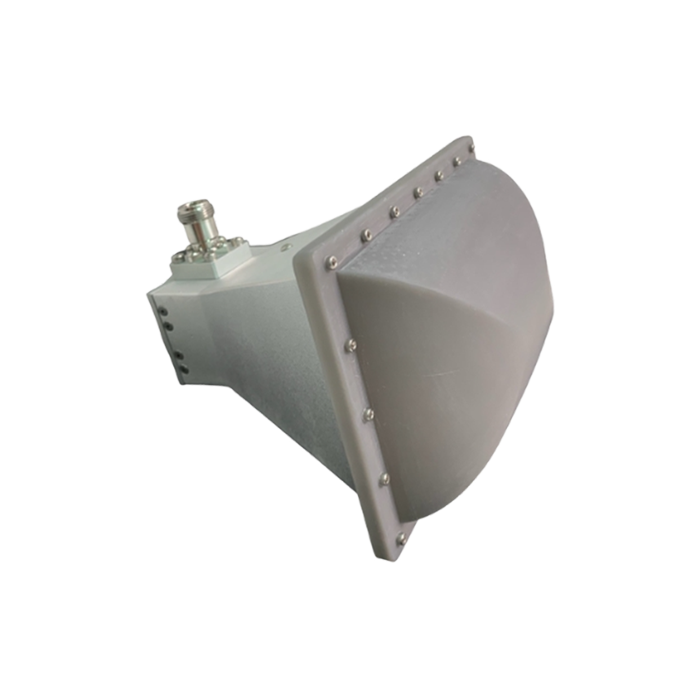

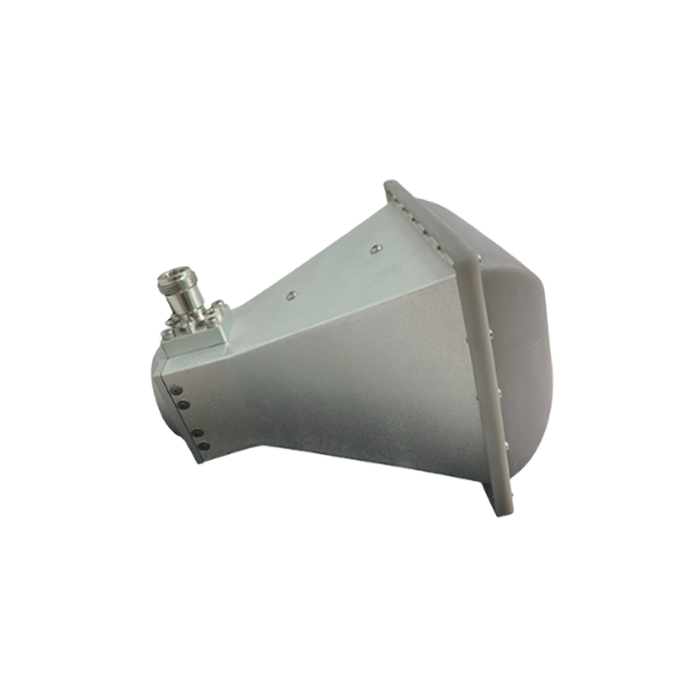

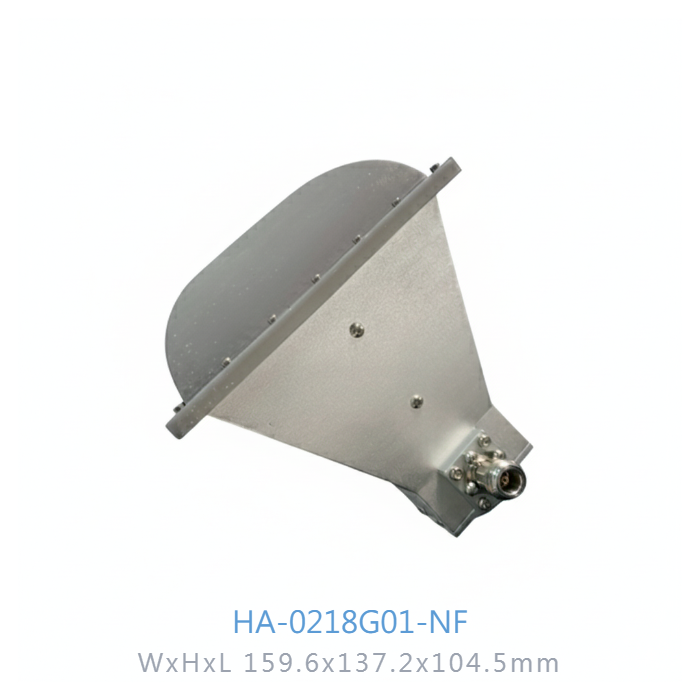

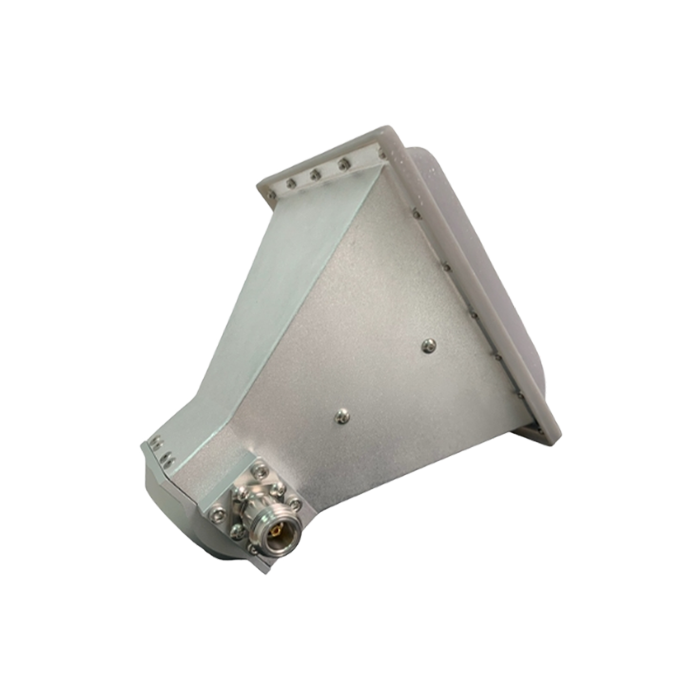

2GHz to 18GHz Double-Ridged Horn Antenna
Broadband Directional Antenna | 300W High Power Handling
The 2GHz to 18GHz Double-Ridged Horn Antenna is a high-performance, single-polarized directional radiator professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan for professional microwave measurements and complex RF validation setups. Operating continuously across an expansive multi-octave spectrum from 2 GHz to 18 GHz, it provides reliable, single-hardware coverage for S, C, X, and Ku communication bands. Precision CNC-machined from premium structural 6061 Aluminum alloy with an integrated DC Short safety design, it ensures excellent structural integrity and low return loss while safeguarding connected measurement instrumentation from transient surges. Equipped with an ultra-durable stainless steel N-Female coaxial connector interface, this compact 513g antenna delivers a flat gain profile up to 15 dBi and an optimized average VSWR under 2.0 : 1, making it the definitive reference standard for laboratory EMI/EMC compliance sweeps, anechoic chamber testing, and advanced directional signal monitoring.
Electrical & RF Performance
| Frequency Range Class | 2 GHz - 18 GHz (Continuous Multi-Band Microwave Optimization) |
| Antenna Radiation Style | Double-Ridged Waveguide Horn Geometry (Directional) |
| Nominal Gain Profile | 2 dBi to 15 dBi (Stable Continuous Response Profile) |
| V.S.W.R Profile (Average) | ≤ 2.0 : 1 (Precision Broadband Impedance Matching) |
| Maximum Continuous Power Handling | 150 Watts (CW Continuous Wave Limit) |
| Maximum Peak Power Handling | 300 Watts (Transient Load Peak Limit) |
| Beamwidth Profile (Horz / Vert) | 39° / 25° |
| Polarization Configuration | Linear (Vertical or Horizontal Orientation) |
| Nominal System Impedance | 50 Ohm |
Mechanical & Environmental Specifications
| Physical Dimensions (W x H x D) | 159.6 x 137.2 x 104.2 mm |
| Antenna Net Weight Profile | 513 g (Precision Lightweight Form Factor) |
| Structural Body Composition | Premium High-Grade 6061 Aluminum Alloy |
| Coaxial Connector Type | N-Female (Precision Durable Stainless Steel Construction) |
| Mounting Adaptability Options | L-Type Bracket Layout (with standard M8, M5, or 1/4 inch holes) |
| Environmental Safety Protection | IP54 Rated (Optimized for Indoor Environments) |
| Regulatory Safety Compliance | RoHS Compliant Architecture |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
High Power Capability
Reliably supports up to 300W peak power and 150W continuous wave thermal loads, providing a robust radiator framework for high-intensity RF testing and demanding EMI/EMC environments.
Lightning & Surge Protection
Integrated static leakage and lightning shunt paths protect expensive connected measurement instrumentation and spectrum analyzers from high-voltage transient surges.
Uniform Gain Response
Maintains an exceptionally predictable 2-15 dBi gain profile across the multi-octave spectrum, ensuring repeatable, traceably accurate data acquisition and field strength validations.
Precision Build Architecture
CNC machined from premium 6061 Aluminum alloy panels in Taiwan to guarantee exceptional mechanical integrity, long-term polarization health, and unwavering structural stability.
Need a Professional Consultation?
Contact our technical engineering division today to request official quote sheets, individual traceable gain calibration matrices, customized mechanical mounting frames, or technical support regarding broadband setups.
