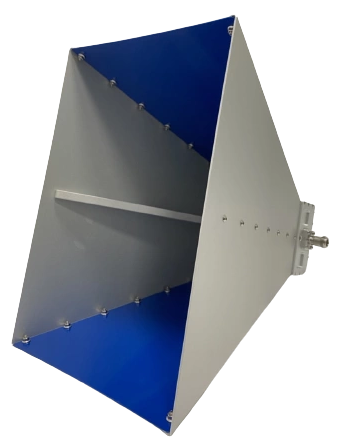

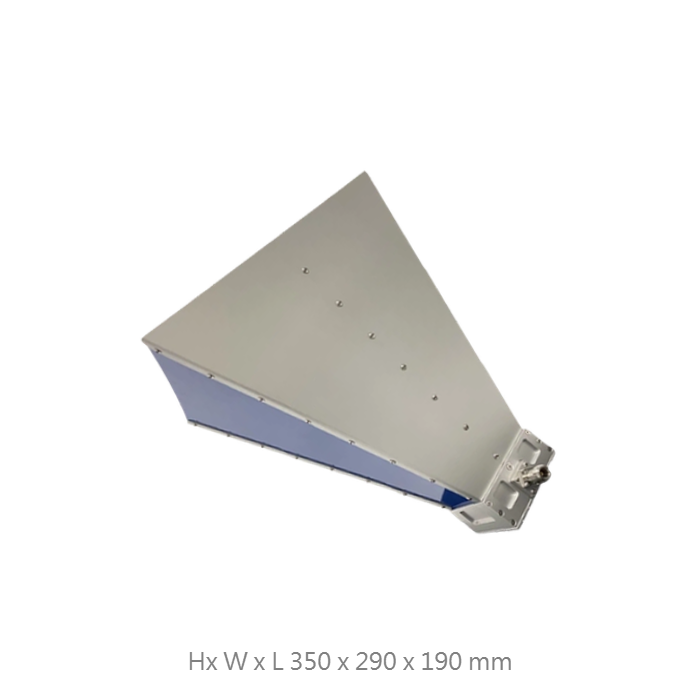

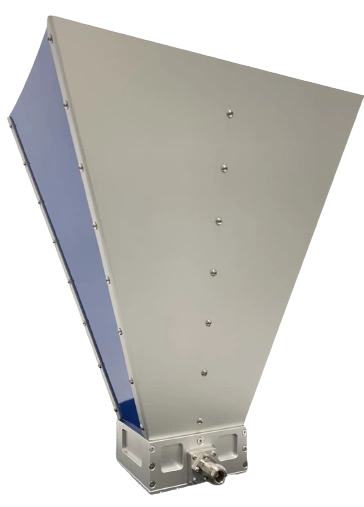

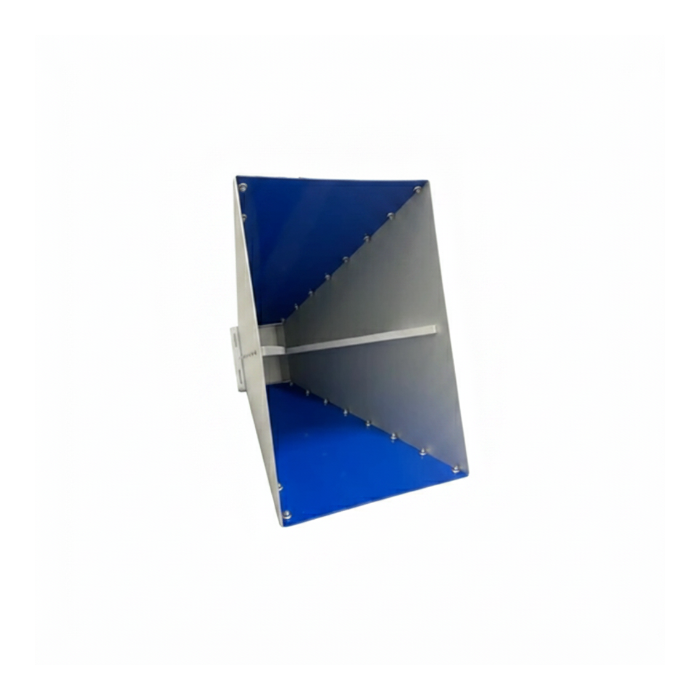

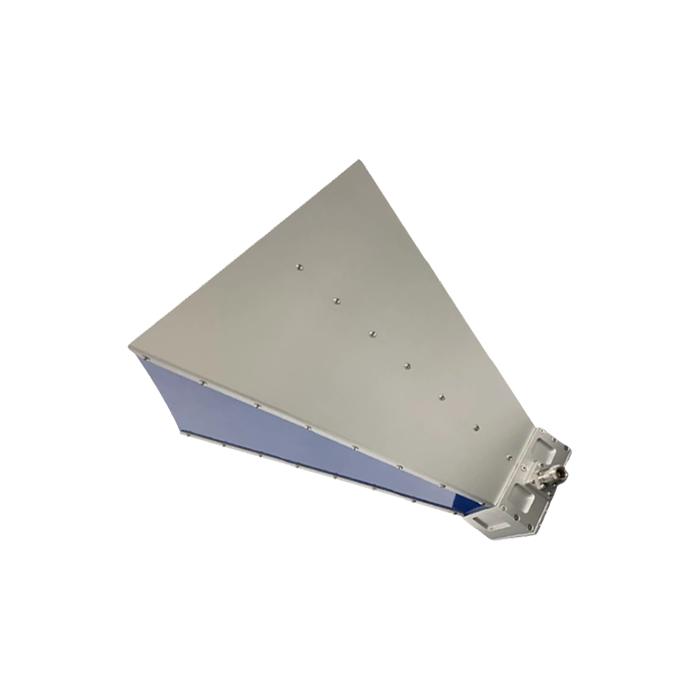

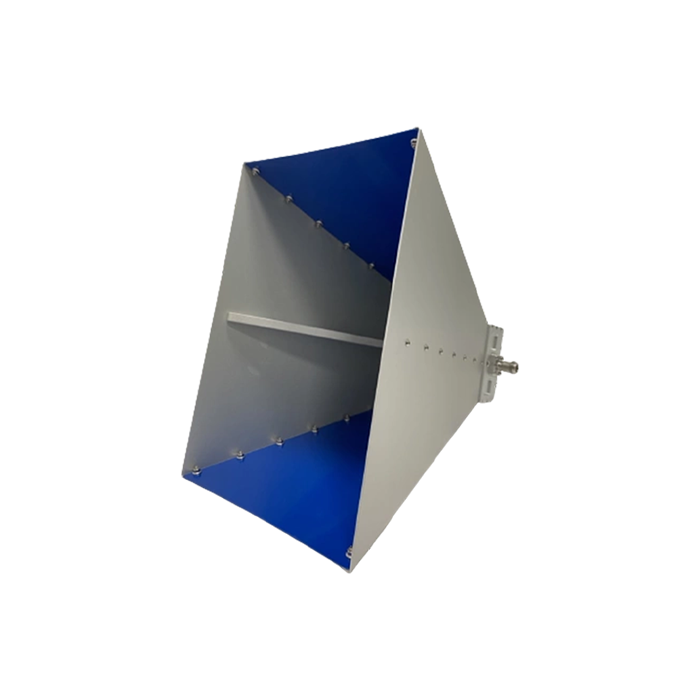

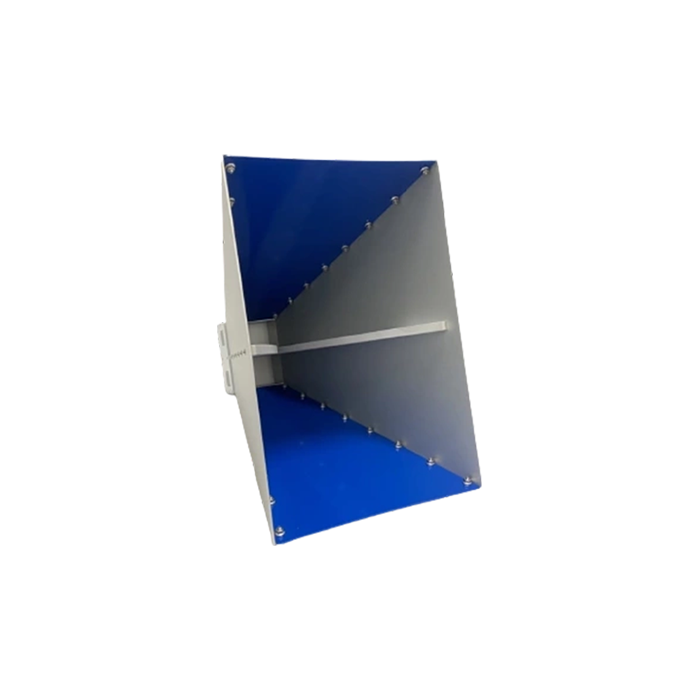

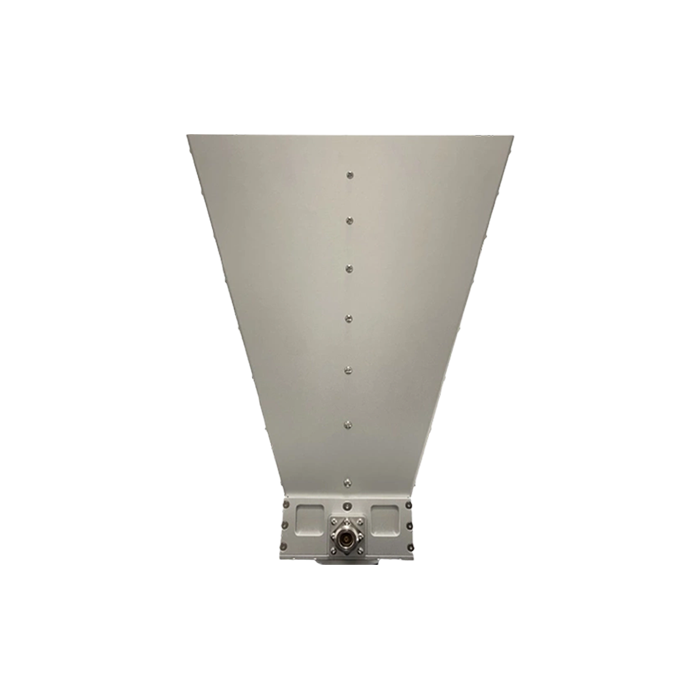

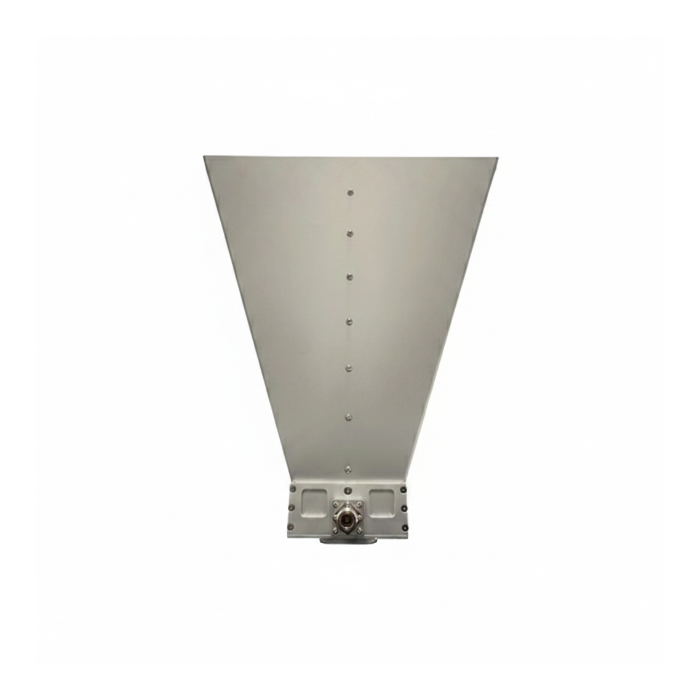

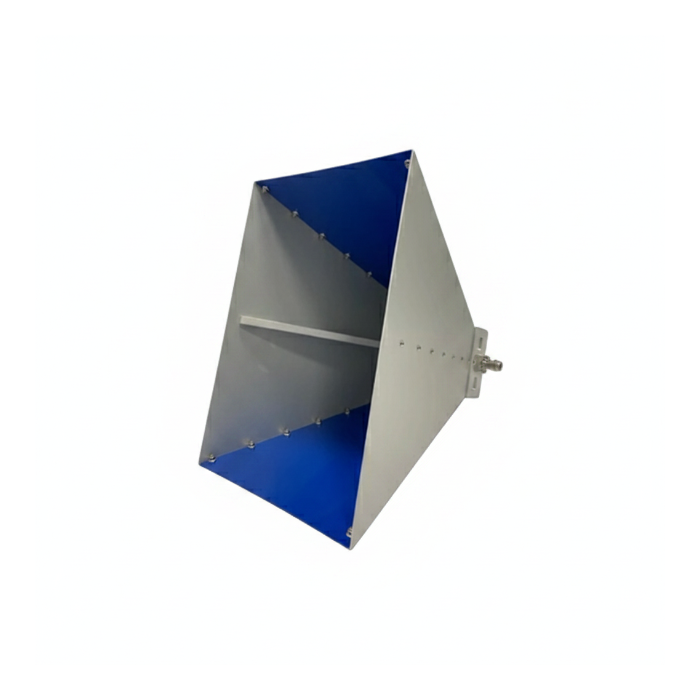

600MHz to 17GHz Double Ridged Broadband Waveguide Horn Antenna
Broadband Precision | -5 to 17 dBi Gain | Model: HA-06M17G-NF
The HA-06M17G-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Serving as the advanced upgraded generation of the HA-065M08G-NF, it operates across the continuous 600MHz to 17GHz frequency spectrum, delivering directional gain profiling from -5 to 17 dBi with low VSWR across 2GHz to 17GHz and high power handling of 500W. Constructed from durable aluminum alloy with a lightweight net weight of 1.38 kg and fitted with a precision N-Female connector, this antenna supports integrated DC Short lightning protection. It serves as an essential measurement standard for EMC/EMI laboratory compliance, wideband surveillance, and precision RF testing.
Technical Specifications
| Frequency Range | 600MHz - 17GHz |
| Antenna Type | Double Ridged Horn (Upgraded from HA-065M08G-NF) |
| Nominal Gain | -5 to 17 dBi |
| VSWR | 600M-2GHz: 3.5:1 / 2GHz-17GHz: 2:1 |
| Power Handling | 500W |
| Antenna Factor | 24 - 45 dB/m |
| Impedance / Lightning Protection | 50 Ω / DC Short Protection |
Mechanical & Physical Data
| Dimensions (L x W x H) | 343 x 289 x 192 mm |
| Weight | 1.38 kg |
| Connector | N-Female |
| Material | Aluminum Metal Alloy |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Ultra-Broadband Coverage
Seamless operation from 600MHz to 17GHz for wideband emission testing, radar surveillance, and signal detection.
Robust Power Capacity
Delivers robust 500W power handling with integrated DC Short lightning protection for demanding RF environments.
Precision N-Female Connector
Fitted with a precision N-Female interface ensuring minimal insertion loss and repeated mating durability.
Lightweight 1.38 kg Build
Precision CNC machined from high-grade aluminum alloy, compliant with RoHS, WEEE, CE, and FCC standards.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
