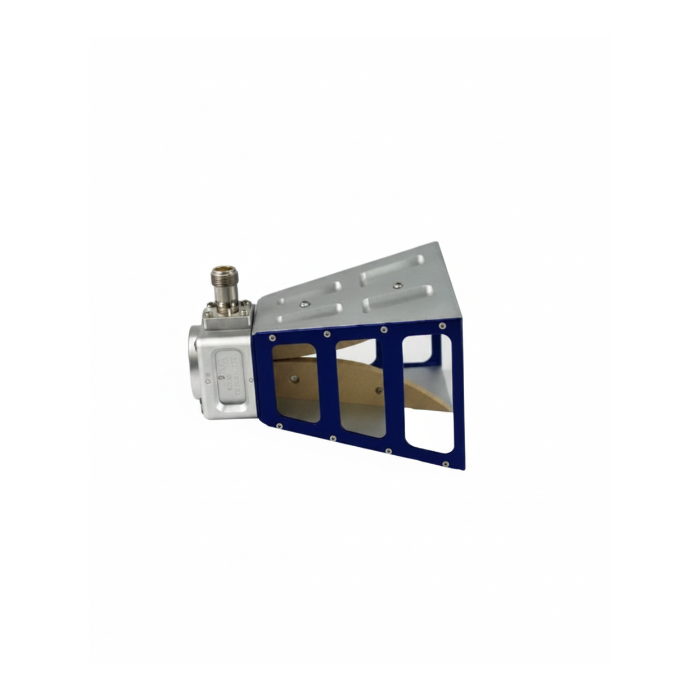

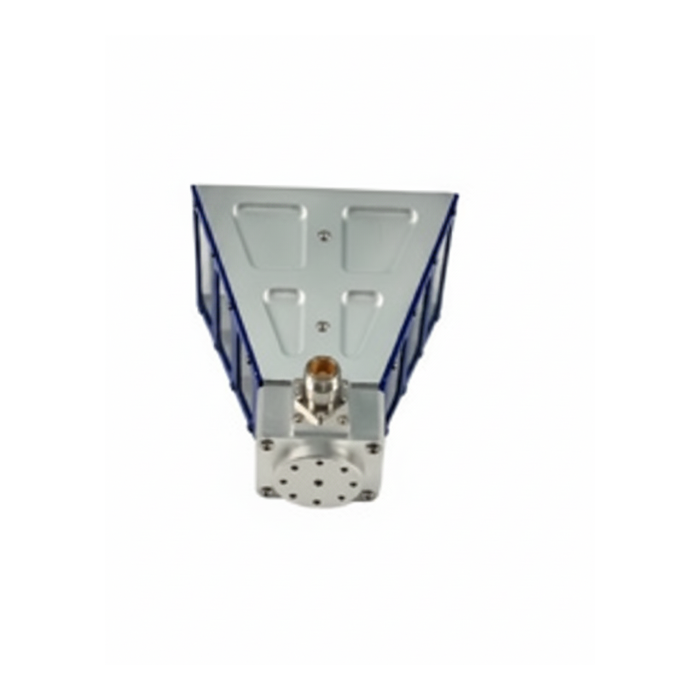

2GHz to 10GHz Double Ridged Broadband Horn Antenna
Broadband Directional Antenna | 300W High Power Handling
The 2GHz to 10GHz Double Ridged Broadband Horn Antenna is a robust solution for medium-band microwave applications. Precision-crafted in Taiwan from high-grade 6061 Aluminum alloy and a stainless steel N-female connector, it provides high directional gain ranging from 5 to 18 dBi. Featuring DC short lightning protection and a low VSWR, this antenna is optimized for signal monitoring, lab testing, and broadband communications across S, C, and X-bands.
Technical Specifications
Electrical Specifications
[Image of 2-10GHz double ridged horn antenna radiation pattern beamwidth]| Frequency Range | 2 GHz - 10 GHz |
| V.S.W.R | 2.0 : 1 (Average) |
| Antenna Type | Single Polarized Broadband Horn |
| Radiation | Directional |
| Gain | 5 dBi to 18 dBi |
| Antenna Factor | 24 - 40 dB/m |
| Maximum Power | 300W (Peak) / 150W (Continuous) |
| Vertical Beam-width | 90° - 10° |
| Horizontal Beam-width | 60° - 10° |
| Impedance | 50 Ohm |
| Front-to-Back Ratio (FBR) | 10 - 35 dB |
| Connector | N-Female (Stainless Steel) |
Mechanical & Environmental Specifications

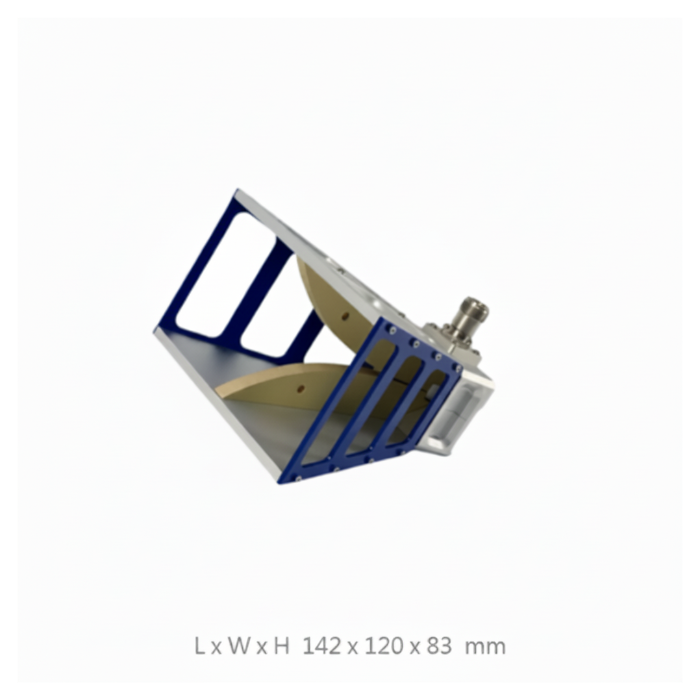

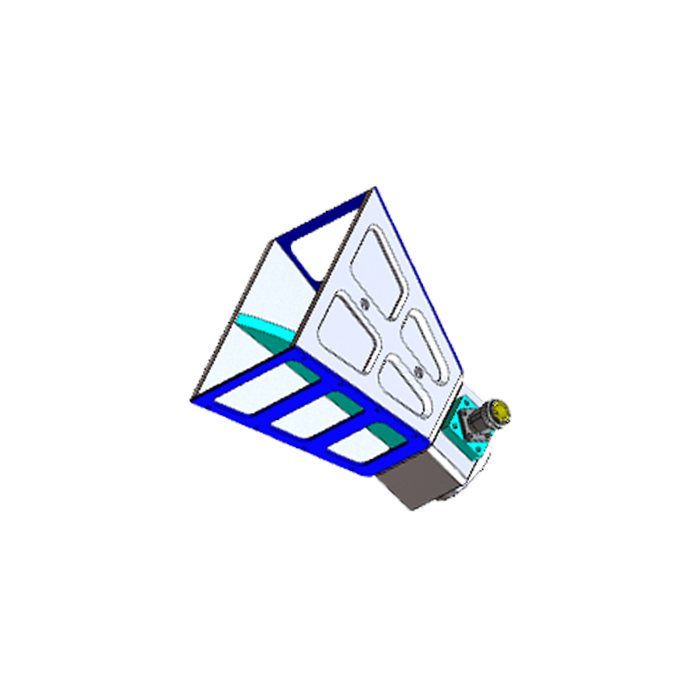

[Image of 2-10GHz horn antenna mechanical dimensions diagram]| Dimensions (Diameter) | 120 x 83 mm |
| Length | 142 mm |
| Antenna Weight (N.W) | 350 g |
| Material | 6061 Aluminum Alloy |
| Mounting Options | L-Type Aluminum Bracket (M8, M5, or 1/4 inch) |
| Indexing Ring Mounting | 22mm Tube Compatible |
| Application | Indoor |
| Operating Temperature | -10°C to +60°C |
| Compliance | RoHS Compliant |
Key Features
Broad High Gain
Delivers an impressive gain up to 18 dBi, ensuring strong signal reception for microwave monitoring.
Delivers an impressive gain up to 18 dBi, ensuring strong signal reception for microwave monitoring.
High Power Handling
Reliably handles up to 300W peak power for high-intensity laboratory and system-level applications.
Reliably handles up to 300W peak power for high-intensity laboratory and system-level applications.
DC Short Safety
Integrated lightning protection design prevents electrical damage to connected instrumentation.
Integrated lightning protection design prevents electrical damage to connected instrumentation.
Lightweight Aluminum Build
Constructed from 6061 Aluminum, weighing only 350g for easy installation on tripods or test setups.
Constructed from 6061 Aluminum, weighing only 350g for easy installation on tripods or test setups.
Precise VSWR Control
Maintains a low average VSWR of 2:1 for efficient RF power transfer and minimal reflections.
Maintains a low average VSWR of 2:1 for efficient RF power transfer and minimal reflections.
Consolidated Database
Supported by a consolidated performance database for accurate calibration and reliable results.
Supported by a consolidated performance database for accurate calibration and reliable results.
Contact Us
For quotes, calibration sheets, or technical support regarding the 2-10GHz Broadband Horn, please contact us:
