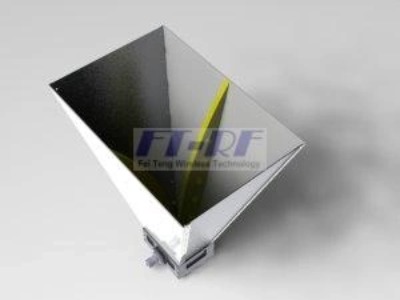

650 MHz to 8 GHz Double Ridged Broadband Horn Antenna
High-Power Broadband Solution | 600W Peak Power Handling
The 650 MHz to 8 GHz Double Ridged Broadband Horn Antenna is a high-performance directional antenna designed for professional RF measurement and high-power testing. Constructed from 6061 Aluminum alloy with a stainless steel N-female connector, it offers a wide frequency coverage with a uniform gain profile. This Taiwan-made antenna features DC short lightning protection and is ideal for EMI/EMC testing, monitoring systems, and laboratory research.
Technical Specifications
Electrical Specifications
| Frequency Range | 650 MHz - 8 GHz |
| V.S.W.R | 2.0 : 1 (Average) |
| Antenna Type | Double Ridged Horn |
| Gain | 3 dBi to 17 dBi |
| Maximum Power Handling | 600W (Peak) / 300W (Continuous) |
| Connector | N-Female (Stainless Steel) |
Env. & Mechanica

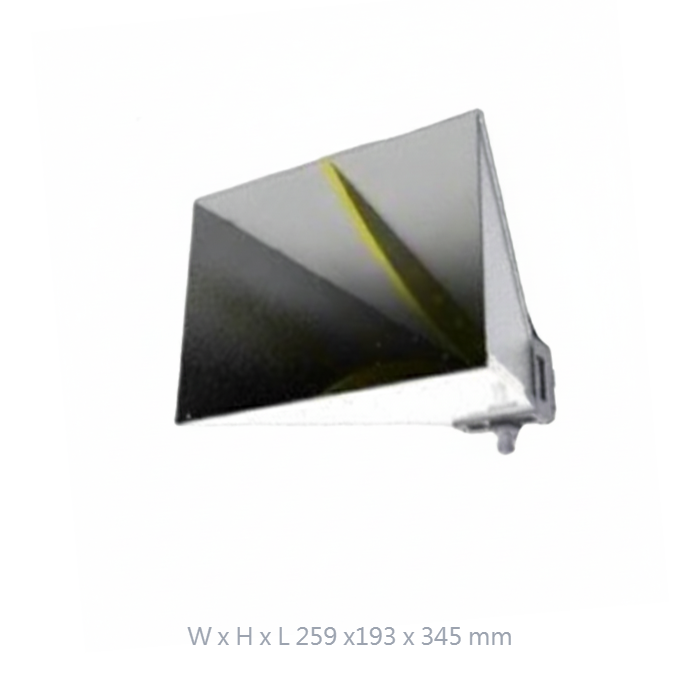

| Dimensions (Max Diameter) | 289 x 193 mm |
| Antenna Weight (G.W) | 1450 g |
| Material | 6061 Aluminum Alloy |
| Compliance | RoHS Compliant |
Key Features
High Peak Power Handling
Up to 600W peak power, perfect for high-intensity RF testing.
Up to 600W peak power, perfect for high-intensity RF testing.
DC Short Protection
Integrated safety design safeguards measurement instrumentation.
Integrated safety design safeguards measurement instrumentation.
Broadband Efficiency
Low average VSWR ensures minimal reflection across the band.
Low average VSWR ensures minimal reflection across the band.
Uniform Gain Stability
Maintains stable gain for highly accurate data acquisition.
Maintains stable gain for highly accurate data acquisition.
Premium Taiwan Quality
Precision-manufactured using high-grade 6061 Aluminum.
Precision-manufactured using high-grade 6061 Aluminum.
Consolidated Database
Backed by a comprehensive performance database for reliability.
Backed by a comprehensive performance database for reliability.
