700MHz to 18GHz Double Ridged Broadband Waveguide Horn Antenna (HA-07M18G-NF)
Fei Teng Wireless - Horn Antenna Specialist
10 out of
10
-
Description & Specification
700MHz to 18GHz Double Ridged Broadband Waveguide Horn Antenna
Broadband Precision | 4 to 18 dBi Gain | Model: HA-07M18G-NF
The HA-07M18G-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Covering the wide microwave spectrum from 700 MHz to 18 GHz, it provides high directional gain ranging from 4 to 18 dBi and a typical VSWR of 2.0:1. Constructed from precision CNC machined aluminum alloy, it features an aperture profile measuring 290 x 187 mm with an overall length of 242 mm, weighing approximately 1.83 kg (1832.97 g bare / 1555.07 g net subassembly). Fitted with a high-durability N-Female coaxial connector supporting 100W CW / 350W Peak RF power, it includes dedicated M5 and M8 mounting interfaces and versatile support options, offering an industry standard for EMC/EMI compliance testing, laboratory microwave measurements, and broadband RF field monitoring.
Technical Specifications
| Frequency Range | 700 MHz - 18 GHz |
| Antenna Type | Double Ridged Waveguide Horn |
| Nominal Gain | 4 to 18 dBi |
| V.S.W.R | Typical 2.0:1 |
| Radiation & Polarization | Directional | Linear |
| Continuous Power (CW) | 100 Watts |
| Peak Power Handling | 350 Watts |
| Beamwidth (-3dB) | H-Plane: 38° | E-Plane: 47° |
| Impedance | 50 Ω |
| Connector | N-Female |

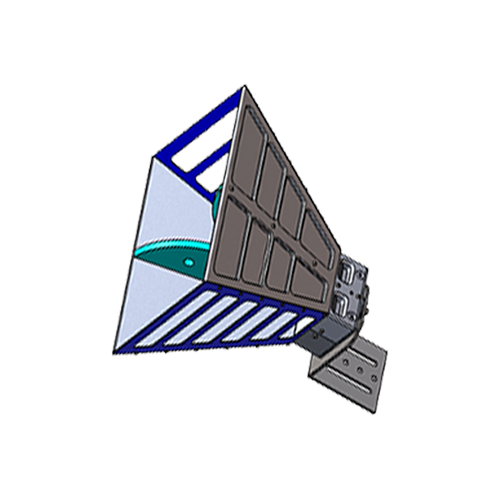

Mechanical & Physical Data

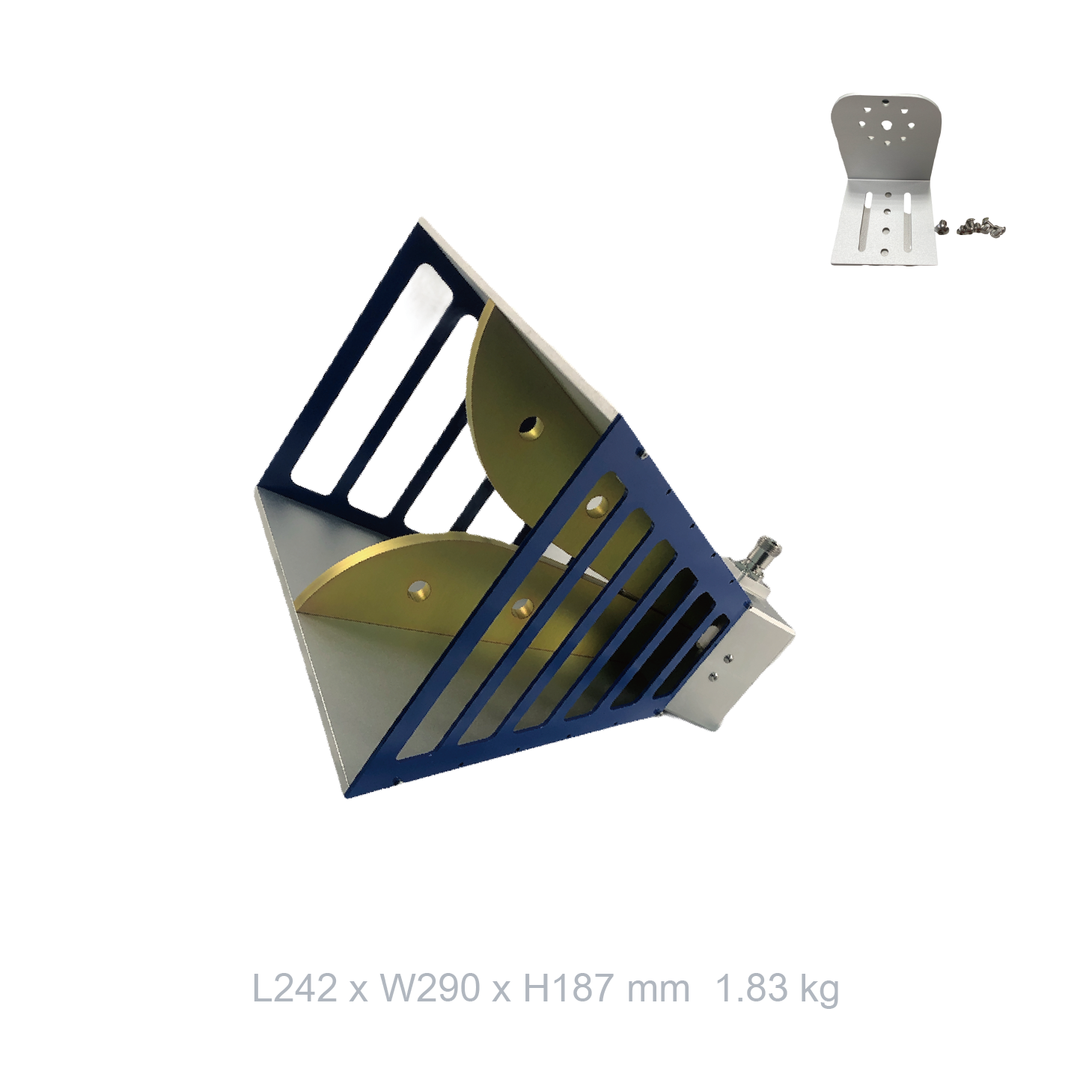

| Dimensions (L x W x H) | 242 x 290 x 187 mm |
| Antenna Weight (N.W) | 1.83 kg (1832.97 g) |
| Body Material | Precision CNC Aluminum Alloy |
| Mounting Interface | M8.00 x 1.25 (Depth 10mm) & M5.00 x 0.8 Patterns |
| Mounting Bracket Options | L-Type Support (Mounting A) / 22mm Round Bar (Mounting B) |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Ultra-Broadband Coverage
Covers continuous 700 MHz to 18 GHz frequency range with stable directional gain from 4 to 18 dBi.
High Power Rating
Supports continuous input power up to 100W CW and 350W peak power handling capability.
Precision N-Female Feed
Equipped with a rugged 50-ohm N-Female coaxial connector delivering high RF repeatability.
Taiwanese Precision
CNC machined from premium aluminum alloy in Taiwan with dual L-bracket and 22mm bar mounting options.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
