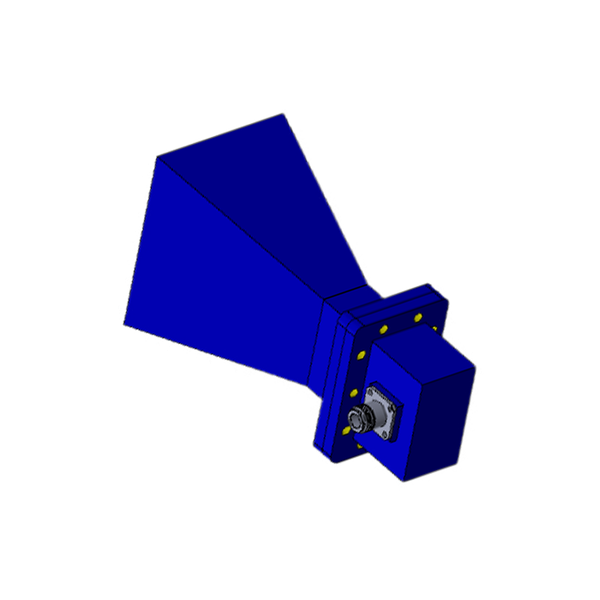

WR229 Standard Gain Horn Antenna

WR187 waveguide horn
HS-229-UDR-10A-NF

WR229 3.3GHz to 4.9GHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, N-Female Connector

View Details
  • Waveguide Type: WR-229
  • Frequency: 3.3 GHz to 4.9 GHz
  • Waveguide Coaxial Adapter Model: WC-187-UDR-NF
  • Waveguide input Mode: WI-187-UDR-20
  • Connector: N-Female(SUS)
  • V.S.W.R: 1.25
  • Gain: 10 dBi
  • Wieght(g): 6700
  • Size (mm): 121x94x221
WR187 Standard gain horn
HS-229-UDR-15A-NF

WR229 3.3GHz to 4.9GHz 15dbi Standard Gain Waveguide Horn Antenna, UDR Flange, N-Female Connector

View Details
  • Waveguide Type: WR-229
  • Frequency: 3.3 GHz to 4.9 GHz
  • Waveguide Coaxial Adapter Model: WC-229-UDR-NF
  • Waveguide input Mode: WI-229-UDR-20
  • Connector: N-Female
  • V.S.W.R: 1.25
  • Gain: 15 dBi
  • Wieght(g): 910
  • Size (mm): 154x114x326
WR187 3.9GHz to 5.85GHz 10dbi Stand Gain Waveguide Horn Flange Type:01 Antenna
HS-229-UDR-20A-NF

WR229 3.3GHz to 4.9GHz 20dbi Standard Gain Waveguide Horn antenna, UDR Flange, N-Female Connector

View Details
  • Waveguide Type: WR-229
  • Frequency: 3.3 GHz to 4.9 GHz
  • Waveguide Coaxial Adapter Model: WC-229-UDR-NF
  • Waveguide input Mode: WI-229-UDR-20
  • Connector: N-Female
  • V.S.W.R: 1.25
  • Gain: 20 dBi
  • Wieght(g): 2400
  • Size (mm): 224x318x651
