Description & Specification

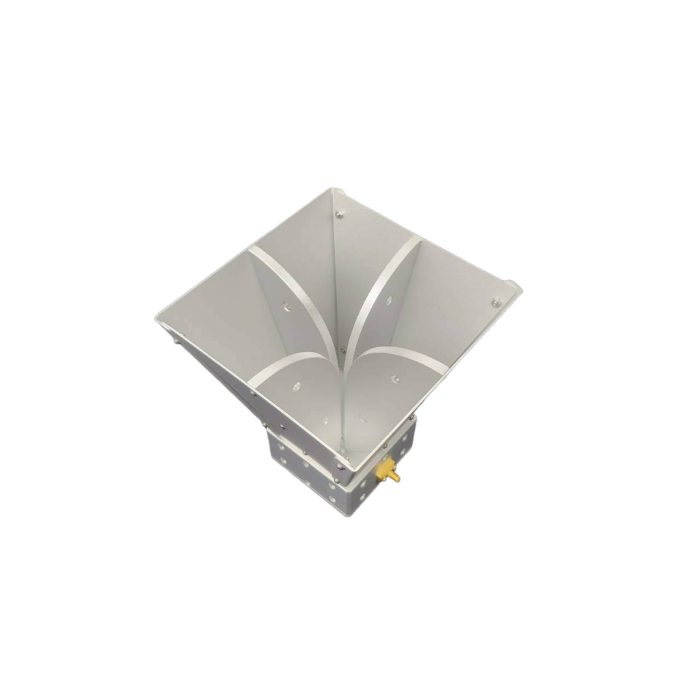

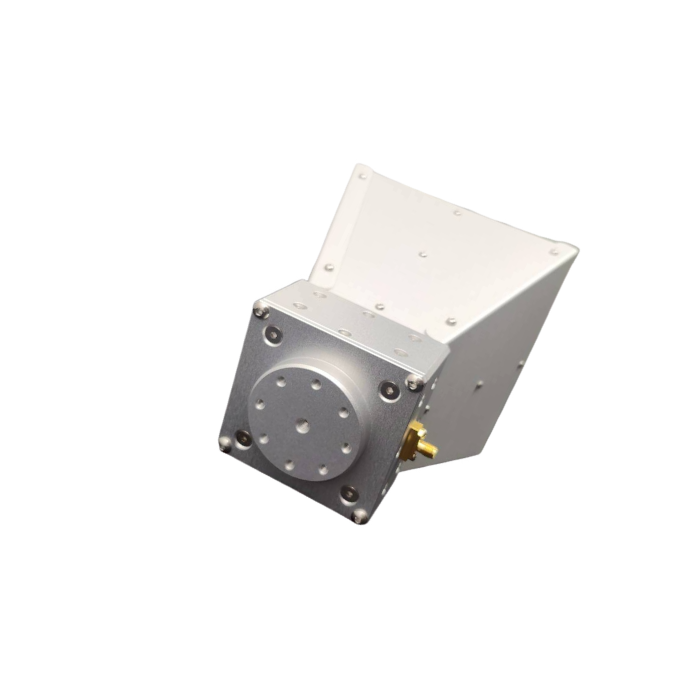

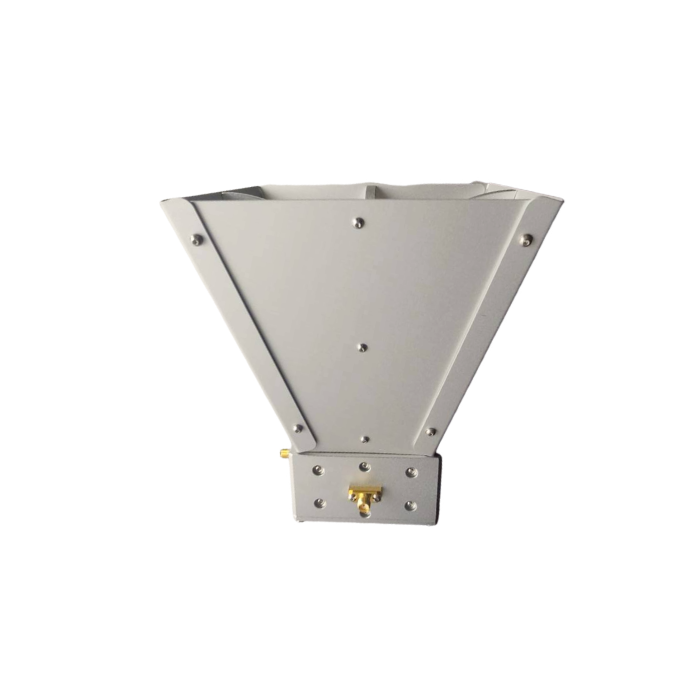

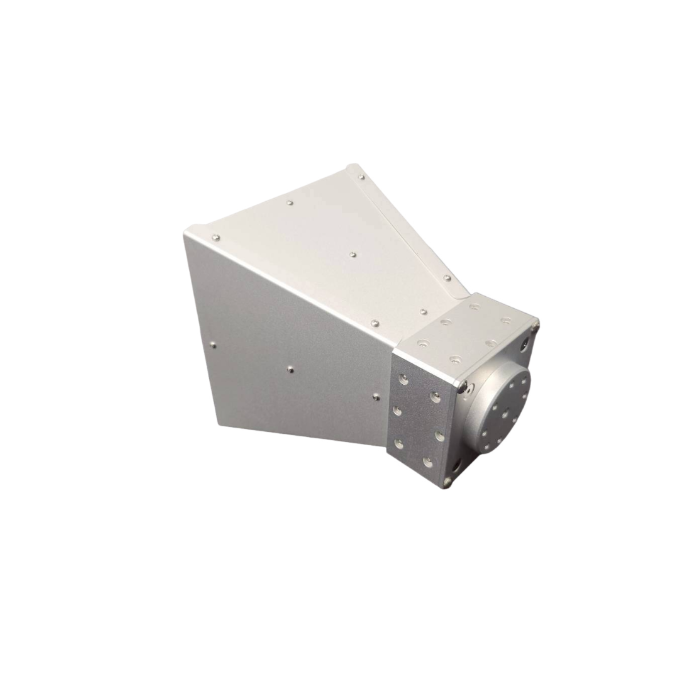

HQ-0212GA-KF Quad-Ridged Broadband Horn
Professional Quad-Ridged Design | Wideband Measurement Excellence | 2 GHz – 12 GHz | 14 dBi
The HQ-0212GA-KF is a high-performance Quad-Ridged Broadband Horn Antenna specifically engineered for professional wireless measurement environments from 2 GHz to 12 GHz. This laboratory-grade antenna delivers excellent gain performance (6 to 14 dBi) and stable radiation patterns, making it an ideal tool for EMI/EMC testing, anechoic chamber measurements, and signal monitoring. Equipped with a precision 2.92mm (K-Female) connector and a robust high-quality structure, it ensures signal transmission integrity and reliable measurement results. Developed and manufactured in Taiwan, this product fully complies with professional industrial and scientific calibration standards.
Electrical RF Performance
| Frequency Range | 2 GHz - 12 GHz |
| Antenna Gain | 6 to 14 dBi |
| V.S.W.R | Typical 2.5 |
| Max Power (CW) | 25 W |
| Peak Power | 50 W |
Mechanical & Interface Data
| Connector Type | 2.92mm (K-Female) |

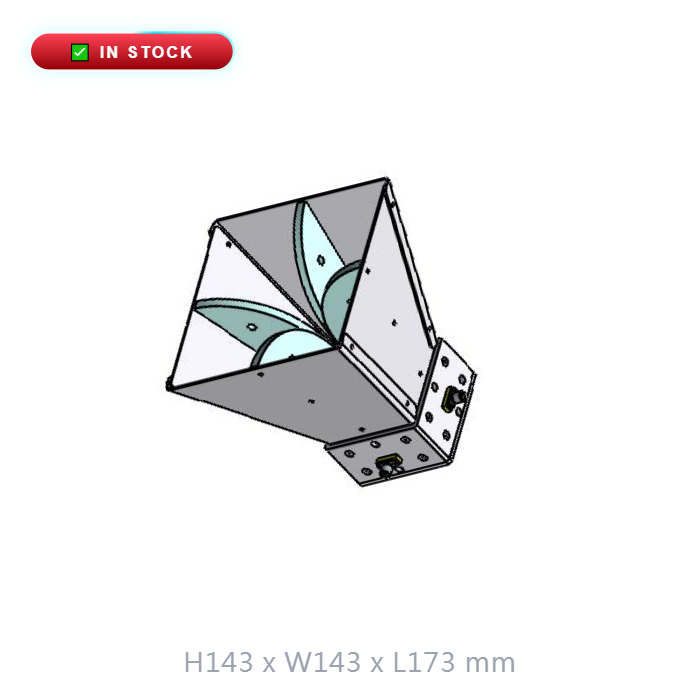

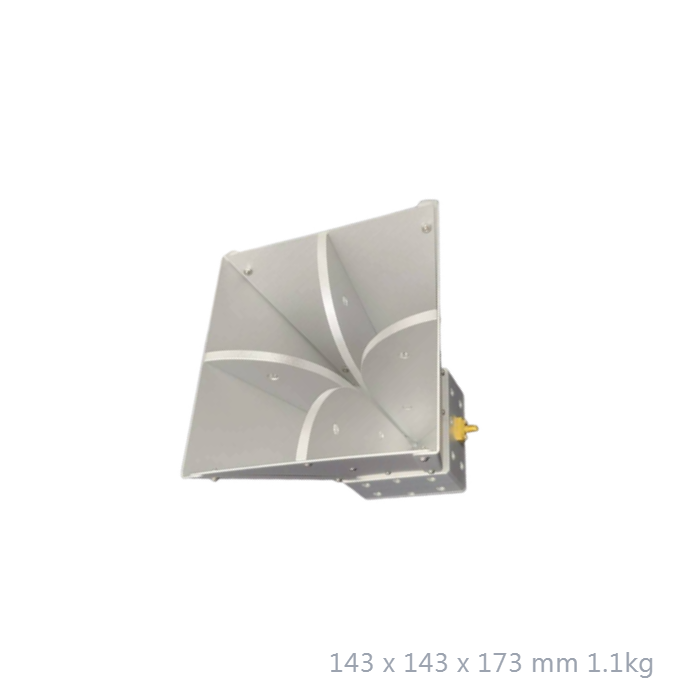

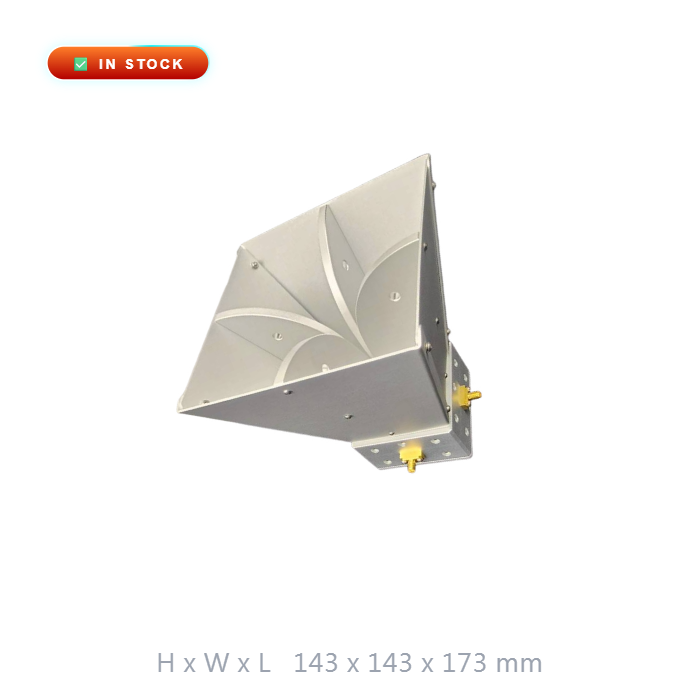

| Dimensions (H x W x L) | 143 x 143 x 173 mm |
| Weight | 1.1 kg |
| Origin | Made in Taiwan |
Quad-Ridged Geometry
Utilizes advanced quad-ridged technology to provide superior directivity and pattern stability across the 2-12 GHz band, suitable for dual-polarization or wideband analysis needs.
Continuous Wideband Coverage
Seamlessly covers multiple microwave bands, allowing a single antenna to meet diverse testing requirements and reducing the operational cost of frequent antenna changes.
Taiwanese Precision Engineering
Rigorous quality control by FT-RF ensures that every antenna maintains excellent performance stability and durability in high-frequency environments.
Optimized Performance
Optimized structural geometry ensures pure radiation patterns and stable gain, providing precise data for professional high-frequency microwave measurements.
Inquire About Professional Horn Solutions
Contact our engineering team for specialized gain calibration data, custom mounting solutions, or technical support regarding high-gain broadband setups.
