NON-METALLIC EMI TEST INFRASTRUCTURE
EMI Mountings & Tripods (LM)

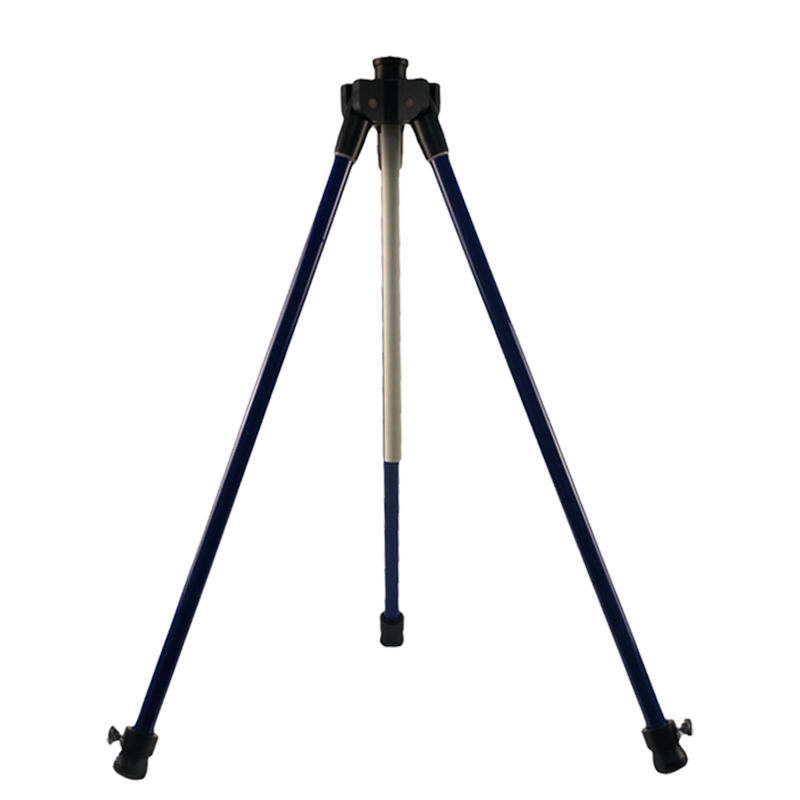

The FT-RF Antenna Tripod LM-series is constructed from high-quality glass fiber and durable plastic materials, ensuring a robust and non-metallic structure ideal for minimizing RF interference and scattering during testing.
Conveniently designed to be collapsed for easy storage and transport, the LM-series is engineered for versatility in both indoor anechoic chambers and outdoor field testing setups. Additionally, the heavy-duty LM-508 Antenna Tripod model is specially designed to support larger and heavier loads, such as huge horn antennas or pan-tilt positioning systems.
*Custom tripod heights, mounting fixtures, and heavy-duty load configurations are available upon request.
⚡ Engineering Highlights
Low Interference Build
Constructed from high-quality glass fiber and non-conductive plastics to minimize RF reflection in EMC/EMI test setups.
Collapsible & Portable
Smart collapsible design allows effortless folding, convenient transport, and compact storage between field test sites.
Indoor & Outdoor Capable
Versatile weather-resistant structure with smooth, easily adjustable height mechanisms for indoor chambers and outdoor ranges.
Heavy Duty Model LM-508
Reinforced mechanical architecture built to support huge horn antennas, heavy broad-spectrum arrays, and pan-tilt units.
Key Operational Applications:
| Key Technical Parameter | Specification Overview |
|---|---|
| Material Architecture | High-Quality Glass Fiber & Non-Metallic Plastic (Low Interference) |
| Structural Features | Collapsible Frame & Easily Adjustable Height Settings |
| Operating Environment | Indoor Anechoic Chambers & Outdoor Field Testing Ranges |
| Heavy Load Support Model | LM-508 (Designed for Huge Horn Antennas & Pan-Tilt Systems) |
| Primary Function | Low-Scatter Antenna Mounting & Precision Height Positioning |
Non-Metallic Glass Fiber Collapsible & Adjustable Height Heavy Duty LM-508 Model
🛠️ Customization & Engineering Options
We accept designs and customizations of various specifications and forms to meet your unique measurement needs:
- Custom Height Ranges: Tailored leg extension lengths for unique chamber dimensions.
- Custom Mounting Plates: Specialized mounting interfaces for heavy horn brackets.
- Pan-Tilt Integration: Motorized positioning drive mounts and adapter plates.
- Ruggedized Carry Cases: Custom flight cases for field testing and logistics.
Direct Technical Support: info-tw@ft168.com.tw
📐 Recommended Testing Accessories
Enhance your measurement setup with compatible mounting and RF equipment:
Made in Taiwan
| Model Number: | LM-508 |
| Maximum Payload: | 50 kg |
| Max Extract Height: | 2.5 m |
| Material Geometry: | Glass Fiber & Plastic |
| Lead Time: | 📩 info-tw@ft168.com.tw |
| Stock: | 0 |
| 2026/06/23 | |
Made in Taiwan
| Height Range: | 84.1 - 140.5 cm |
| Max Load: | 22.5 kg |
| Material: | Glass Fiber & Plastic |
| Net Weight: | 8 kg |
| Stock: | 13 |
| 2026/06/09 | |
