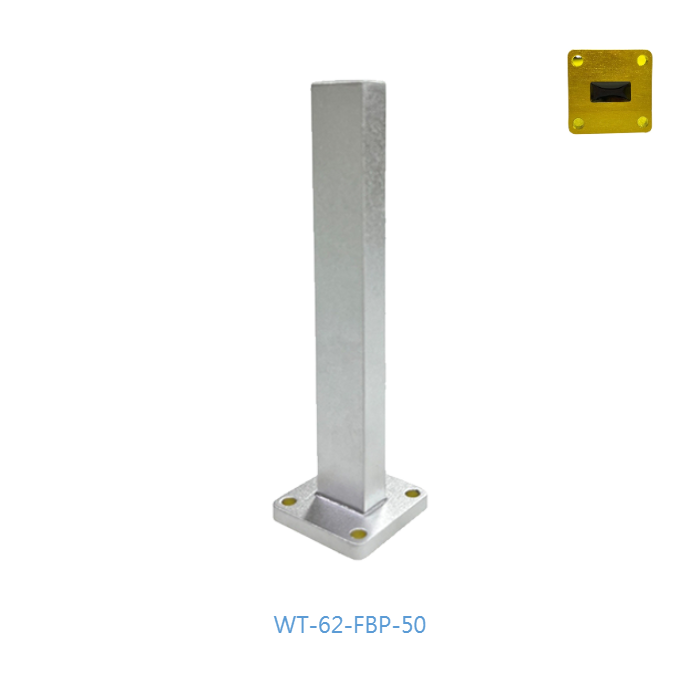

WT-62-FBP-50 Waveguide Termination
Ku-Band Low Power Waveguide Load (WR62)

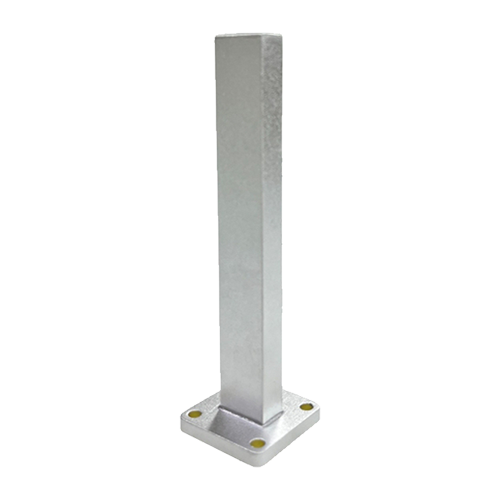

The WT-62-FBP-50 is an ultra-precision low power waveguide termination designed for the Ku-band spectrum. Operating effectively between 12.4 GHz and 18.0 GHz, it maintains an outstanding low VSWR performance (≤ 1.05). This exceptionally lightweight model (0.04 kg) features a Square FBP140 Flange, making it the ideal solution for high-density system-level terminations and test bench dummy load applications with power capacity up to 50W.
Technical Specifications
Electrical Specifications
[Image of WR62 waveguide dimensions and rectangular profile]| Frequency Range | 12.4 - 18.0 GHz |
| Waveguide Band | Ku-Band |
| Waveguide Size | EIA WR62 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 2W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications

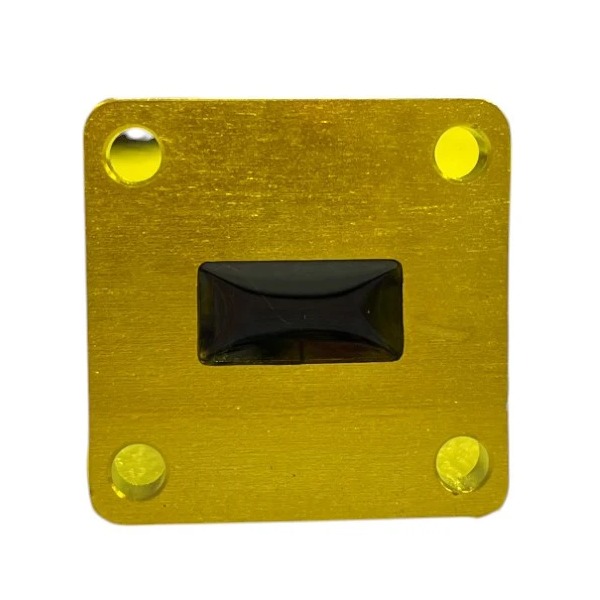

[Image of FBP140 waveguide flange bolt pattern]| Flange Style | Square |
| Flange Designation | FBP140 |
| Net Weight | 0.04 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Superior VSWR Performance
Maintains a maximum VSWR of 1.05 for high-accuracy signal absorption and minimal reflection loss.
Maintains a maximum VSWR of 1.05 for high-accuracy signal absorption and minimal reflection loss.
Optimized Ku-Band Coverage
Tailored for the 12.4 GHz to 18.0 GHz range, perfect for high-frequency satellite and radar system testing.
Tailored for the 12.4 GHz to 18.0 GHz range, perfect for high-frequency satellite and radar system testing.
Ultra-Lightweight & Compact
Precision-engineered at only 0.04 kg, optimized for space-constrained system architectures and field use.
Precision-engineered at only 0.04 kg, optimized for space-constrained system architectures and field use.
FBP140 Square Flange
Standard square flange interface ensures precision alignment and standardized mechanical mounting.
Standard square flange interface ensures precision alignment and standardized mechanical mounting.
50W CW Power Capacity
Reliably handles continuous wave power levels from 2W up to 50W with excellent electrical stability.
Reliably handles continuous wave power levels from 2W up to 50W with excellent electrical stability.
Taiwan Engineering Quality
Precision-manufactured in Taiwan to meet stringent industrial and laboratory tolerances.
Precision-manufactured in Taiwan to meet stringent industrial and laboratory tolerances.
Contact Us
For quotes or technical inquiries about the WT-62-FBP-50, please contact us:
