Description & Specification

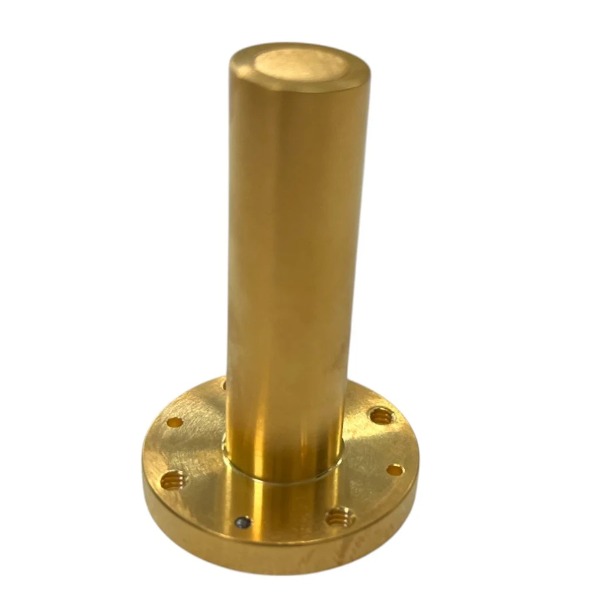

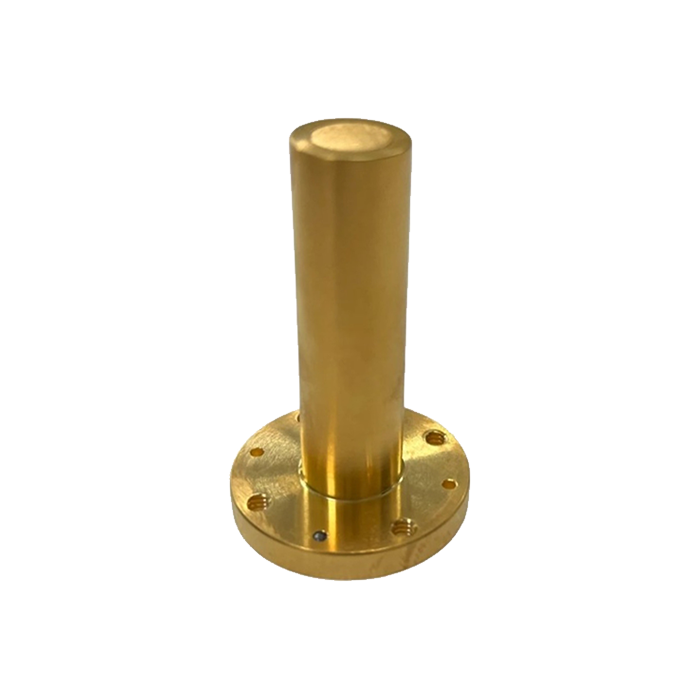

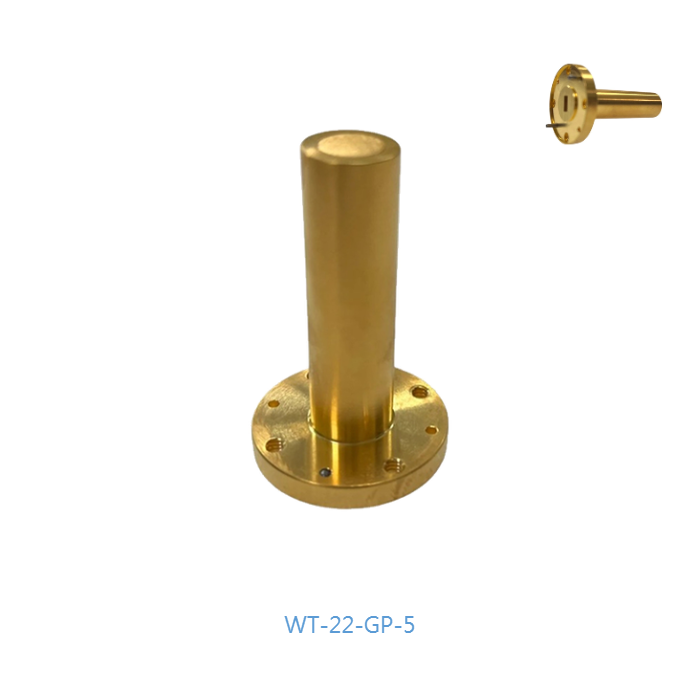

WT-22-GP-5 Waveguide Termination
Q-Band Low Power Waveguide Load (WR22)
The WT-22-GP-5 is a high-precision low power waveguide termination specifically engineered for Q-band operations. Operating effectively within the millimeter-wave range of 33.0 GHz to 50.0 GHz, it provides an exceptional low VSWR performance (≤ 1.10). This model features a Round FUGP400 Flange, making it a reliable solution for system-level integrations and laboratory test bench configurations requiring precision termination at moderate power levels.
Technical Specifications
Electrical Specifications
[Image of WR22 waveguide dimensions and Q-band rectangular profile]| Frequency Range | 33.0 - 50.0 GHz |
| Waveguide Band | Q-Band |
| Waveguide Size | EIA WR22 |
| VSWR (Max) | 1.10 : 1 |
| Power Handling (CW) | 0.25W - 5W |
| Power Handling (Peak) | 0.5 KW |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
[Image of FUGP400 round flange bolt hole pattern and alignment pins]| Flange Style | Round |
| Flange Designation | FUGP400 |
| Net Weight | 0.055 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Precision VSWR Performance
Maintains a maximum VSWR of 1.10 for highly efficient signal absorption and minimal back-reflection in Q-band systems.
Maintains a maximum VSWR of 1.10 for highly efficient signal absorption and minimal back-reflection in Q-band systems.
Optimized Q-Band Coverage
Tailored for the 33.0 GHz to 50.0 GHz range, supporting high-frequency research and advanced radar development.
Tailored for the 33.0 GHz to 50.0 GHz range, supporting high-frequency research and advanced radar development.
Durable WR22 Construction
Standard rectangular waveguide interface ensures robust electrical contact and long-term stability in test environments.
Standard rectangular waveguide interface ensures robust electrical contact and long-term stability in test environments.
FUGP400 Round Flange
Equipped with a precision round flange interface for standardized and high-integrity mechanical integration.
Equipped with a precision round flange interface for standardized and high-integrity mechanical integration.
High Peak Power Handling
Capable of managing up to 0.5 KW peak power, providing safety and reliability in pulsed signal applications.
Capable of managing up to 0.5 KW peak power, providing safety and reliability in pulsed signal applications.
Precision Taiwan Quality
Manufactured to stringent tolerances in Taiwan to ensure consistent performance for critical RF applications.
Manufactured to stringent tolerances in Taiwan to ensure consistent performance for critical RF applications.
Contact Us
For quotes or technical inquiries about the WT-22-GP-5, please contact us:
