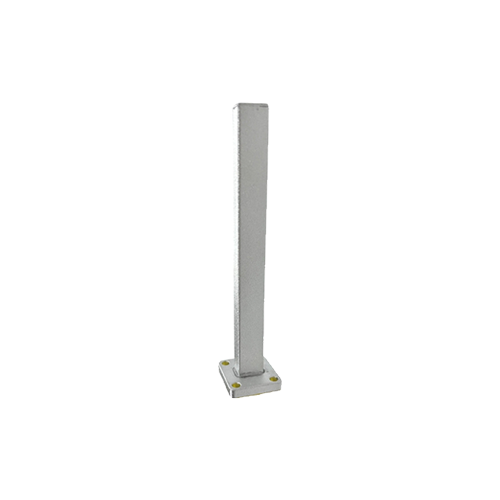

WR34 Low Power Load, FBP260

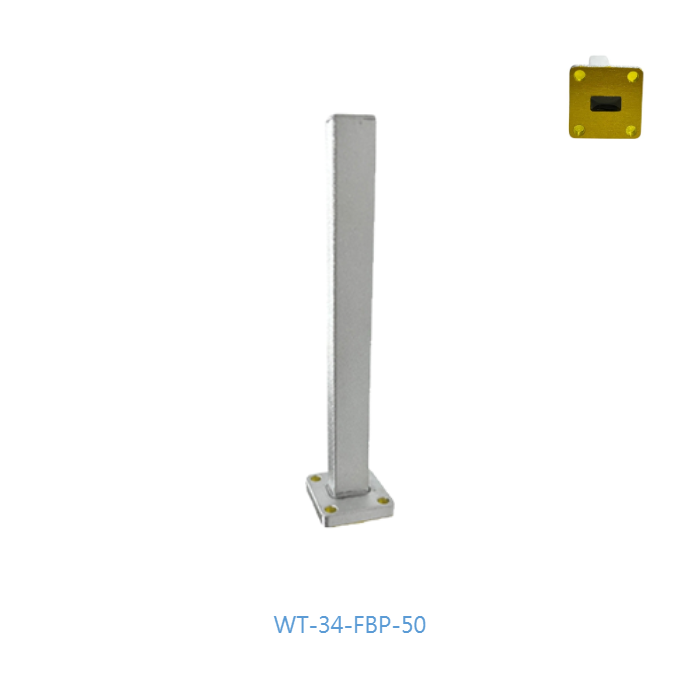

Model No: WT-34-FBP-50

Made in Taiwan
Frequency Range: 22.0 - 33.0 GHz
Waveguide Size: WR34 (EIA)
VSWR (Max): 1.05 : 1
Power Handling: 50 Watts (CW)
Stock: 0
2026/06/17
Quantity:
INQUIRY

K/Ka-Band Precision Low Power Waveguide Termination

Precision Millimeter-Wave Dummy Load | Square FBP260 Flange | 22.0 GHz – 33.0 GHz
The WT-34-FBP-50 is a laboratory-grade millimeter-wave (mmWave) Low Power Waveguide Termination Load professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for absolute signal absorption and calibration isolation routines across the continuous 22.0 GHz to 33.0 GHz K and Ka-Band spectrum. Meticulously optimized to enforce strict impedance matching and prevent critical boundary reflections, this premium dummy load delivers an exceptionally flat and low maximum V.S.W.R profile of ≤ 1.05 : 1. Precision CNC machined from high-grade structural alloys in Taiwan, the interior architecture integrates a high-homogeneity absorbing element that effectively dampens millimeter-wave energy without field or path distortion. Equipped with a standardized precision FBP260 Square Flange interface layout, this ultra-lightweight 0.015 kg component ensures flawless electromechanical concentricity and zero boundary RF leakage, safely managing continuous wave power loads up to 50 Watts (CW) with excellent thermal dissipation. Its optimized ultra-compact structural footprint makes it the definitive choice for mass-sensitive airborne tracking, next-generation satellite communications, millimeter-wave radar development, system-level architecture integrations, and mission-critical Signal Integrity diagnostics inside professional laboratory test bench configurations.



Electrical Specifications
Frequency Range 22.0 GHz to 33.0 GHz (Continuous K & Ka-Band Optimization)
Waveguide Size Designation EIA WR34 (R260 / WG21 Rectangular Architecture Layout)
V.S.W.R Profile (Max) ≤ 1.05 : 1 (Superior Precision Minimal Reflection Performance)
Power Handling (CW) 0.5 Watts to 50 Watts (Continuous Wave Power Safety Range)
Waveguide Load Type Low Power Precision Fixed Dummy Load Termination
Waveguide Geometry Type Rectangular Waveguide Format
Material & Mechanical Parameters
Waveguide Flange Style Square Precision Interface Layout Style
Flange Designation Standard FBP260 Square Flange Pattern Layout
Net Weight 0.015 kg / 15 g (Extreme Lightweight Payload Geometry)
Manufacturing Origin Taiwan Design & Made in Taiwan (Precision Finished Core)



Superior VSWR Stability

Maintains a rigorous maximum VSWR performance threshold of 1.05 across the continuous band, providing highly accurate signal absorption with minimal reflection loss in millimetric bands to isolate and preserve high-value instrumentation paths.

K/Ka-Band Optimization

Specifically tailored for the continuous 22.0 GHz to 33.0 GHz frequency range, providing crucial load matching for next-generation satellite communications and advanced millimeter-wave radar systems.

Taiwanese Engineering Excellence

Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring absolute flange concentricity, micro internal throat smoothness, and reproducible calibration reference criteria.

Ultra-Compact Millimeter Design

Precision-engineered footprint weighing a mere 0.015 kg (15 g), highly optimized to reduce total mechanical stress in mass-sensitive airborne tracking grids and satellite system payloads.

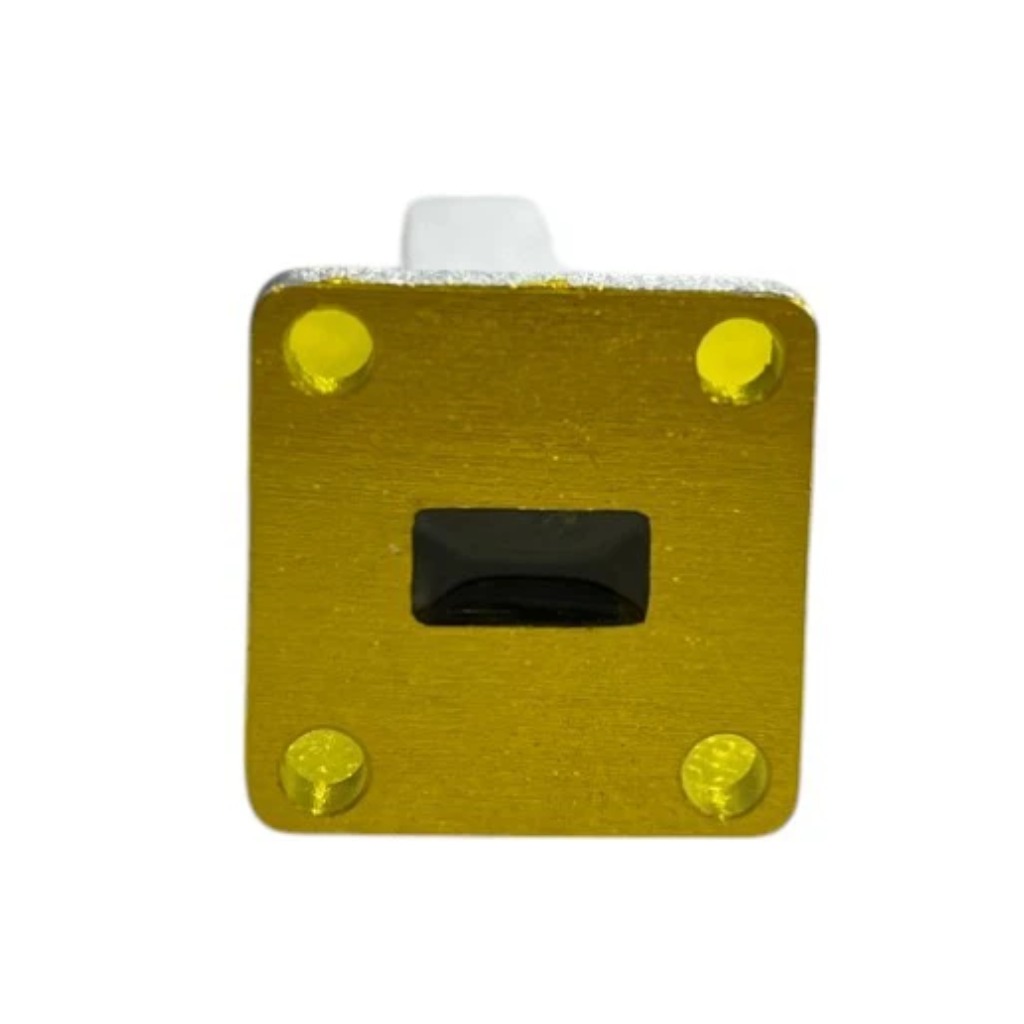

FBP260 Square Flange Layout

Equipped with a certified square flat FBP260 cover flange format, securing standardized mechanical integration, precise alignment, and low-leakage connection boundaries inside professional waveguide networks.

50W CW Power Capacity

Robustly engineered structural core effortlessly handles continuous wave power levels up to 50W with excellent thermal dissipation and unwavering electrical integrity under constant operation cycles.

Contact Us / Technical Support

Contact our technical engineering division today to request official quote sheets, individual certified VSWR plot data sheets, unique structural mechanical drawings, or alternative flange layout adaptations.
