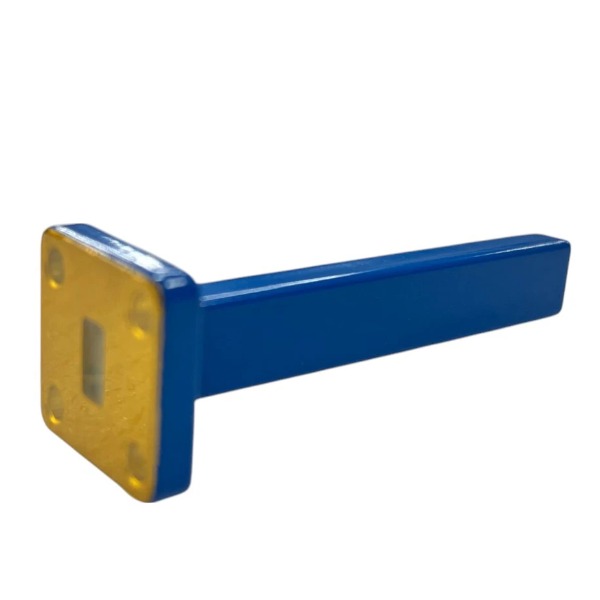

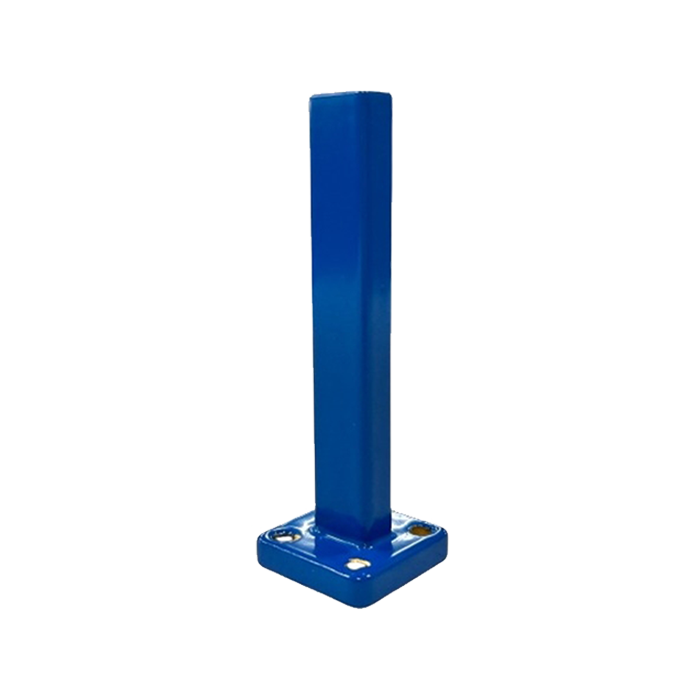

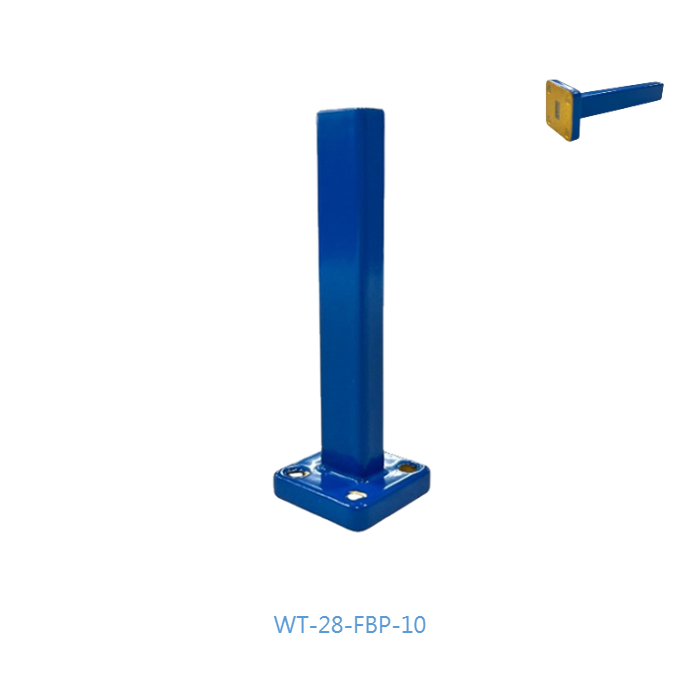

Ka-Band Precision Low Power Waveguide Termination
Precision Millimeter-Wave Dummy Load | Square FBP320 Flange | 26.5 GHz – 40.0 GHz
The WT-28-FBP10 is a laboratory-grade millimeter-wave (mmWave) Low Power Waveguide Termination Load professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for absolute signal absorption and calibration isolation routines across the continuous 26.5 GHz to 40.0 GHz Ka-Band spectrum. Meticulously optimized to enforce strict impedance matching and prevent critical boundary reflections, this premium dummy load delivers an exceptionally flat and low maximum V.S.W.R profile of ≤ 1.05 : 1. Precision CNC machined from high-grade structural alloys in Taiwan, the interior architecture integrates a high-homogeneity absorbing element that effectively dampens millimeter-wave energy without field or path distortion. Equipped with a standardized precision FBP320 Square Flange interface layout, this ultra-lightweight 0.015 kg component ensures flawless electromechanical concentricity and zero boundary RF leakage, safely managing continuous wave power loads up to 10 Watts (CW) and peak power surges up to 0.5 KW. Its optimized ultra-compact structural footprint makes it the definitive choice for mass-sensitive airborne tracking, next-generation satellite communications, millimeter-wave radar development, system-level architecture integrations, and mission-critical Signal Integrity diagnostics inside professional laboratory test bench configurations.
Electrical Specifications
| Frequency Range | 26.5 GHz to 40.0 GHz (Continuous Ka-Band Optimization) |
| Waveguide Size Designation | EIA WR28 (R320 / WG22 Rectangular Architecture Layout) |
| V.S.W.R Profile (Max) | ≤ 1.05 : 1 (Superior Precision Minimal Reflection Performance) |
| Power Handling (CW) | 0.25 Watts to 10 Watts (Continuous Wave Power Safety Range) |
| Power Handling (Peak Surge) | 0.5 KW (500 Watts Peak Shock Capacity for Pulsed Signals) |
| Waveguide Load Type | Low Power Precision Fixed Dummy Load Termination |
| Waveguide Geometry Type | Rectangular Waveguide Format |
Mechanical & Environmental Specifications
| Waveguide Flange Style | Square Precision Interface Layout Style |
| Flange Designation | Standard FBP320 Square Flange Pattern Layout |
| Net Weight | 0.015 kg / 15 g (Extreme Lightweight Payload Geometry) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (Precision Finished Core) |
Superior VSWR Performance
Maintains a rigorous maximum VSWR performance threshold of 1.05 across the entire band, providing highly efficient signal absorption with minimal reflection loss to isolate and preserve high-value instrumentation paths.
Broad Ka-Band Coverage
Specifically tailored for the continuous 26.5 GHz to 40.0 GHz millimeter-wave frequency range, providing crucial load matching for next-generation satellite communications and advanced millimeter-wave radar development.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring absolute flange concentricity, micro internal throat smoothness, and reproducible calibration reference criteria.
Extreme Lightweight Design
Precision-engineered footprint weighing a mere 0.015 kg (15 g), highly optimized to reduce total mechanical stress in mass-sensitive airborne tracking grids and satellite system payloads.
FBP320 Square Flange Layout
Equipped with a certified square flat FBP320 cover flange format, securing standardized mechanical integration, precise alignment, and low-leakage connection boundaries inside professional waveguide networks.
Contact Us / Technical Inquiries
Contact our technical engineering division today to request official quote sheets, individual certified VSWR plot data sheets, unique structural mechanical drawings, or alternative flange layout adaptations.
