360MHz to 12GHz Double Ridged Broadband Waveguide Horn N-Female Antenna
Broadband Precision | High Power Handling | Model: HA-03M12GA-NF
The HA-03M12GA-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan[cite: 6]. Operating across an ultra-wide continuous frequency range from 360 MHz to 12 GHz, it provides stable directional gain from 4 to 16 dBi[cite: 6]. Precision machined with high-grade aluminum alloy and fitted with a durable N-Female (SUS) connector, this antenna supports high continuous wave power up to 600W @ 1GHz / 100W @ 12GHz and peak power handling up to 1KW[cite: 6]. It serves as a premier solution for EMC/EMI compliance testing, laboratory microwave measurements, and broadband RF field generation[cite: 6].
Technical Specifications
| Frequency Range | 360 MHz - 12 GHz |
| Antenna Type | Double Ridged Horn |
| Gain | 4 - 16 dBi |
| CW Power | 600W @ 1GHz / 100W @ 12GHz |
| Peak Power | 1 KW |
| Impedance | 50 Ω |
Mechanical & Physical Data

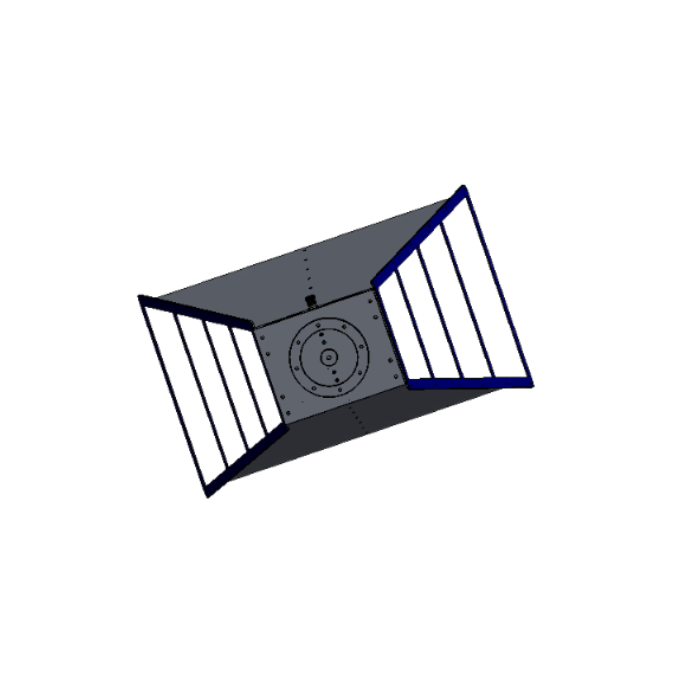

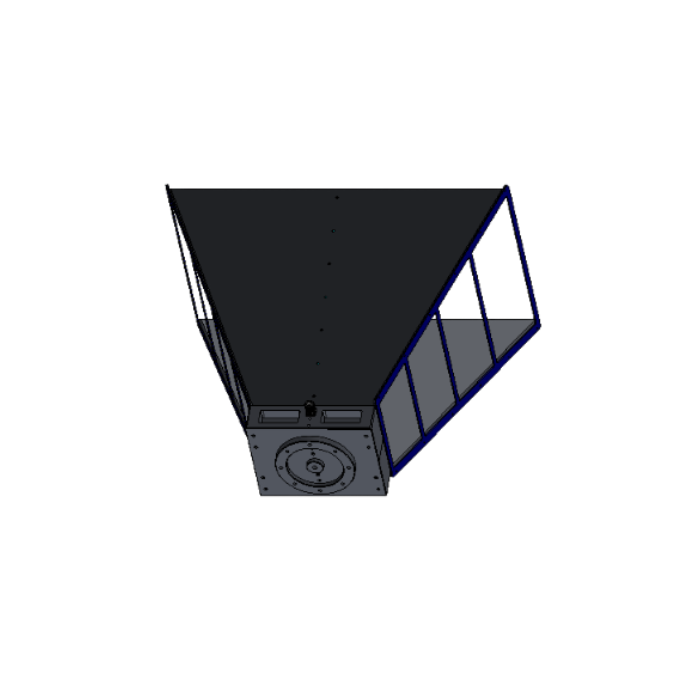

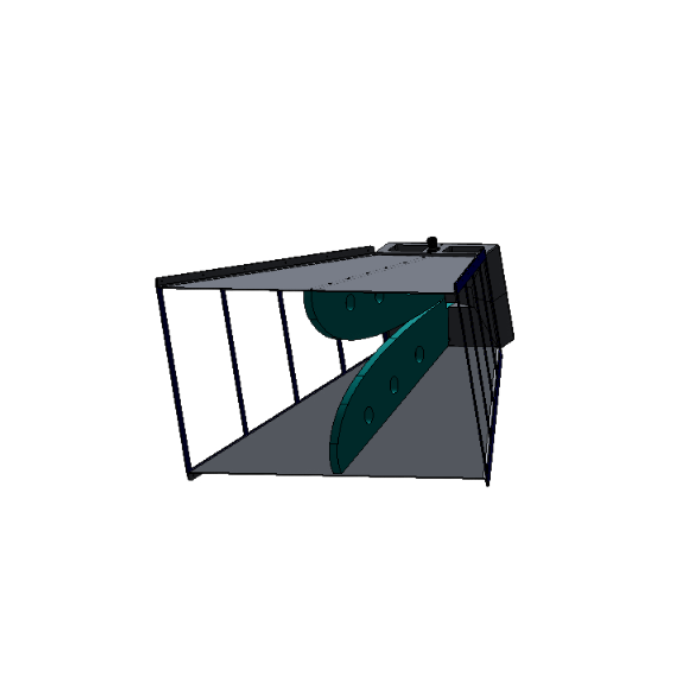

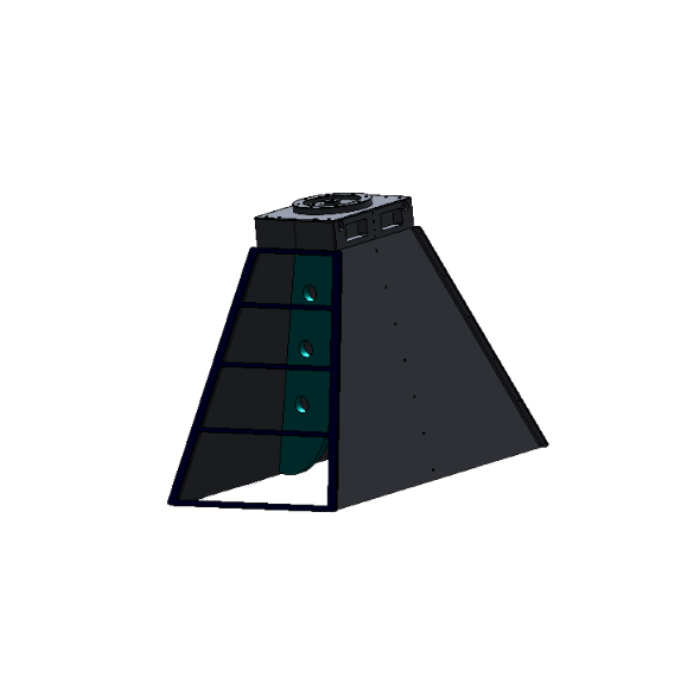

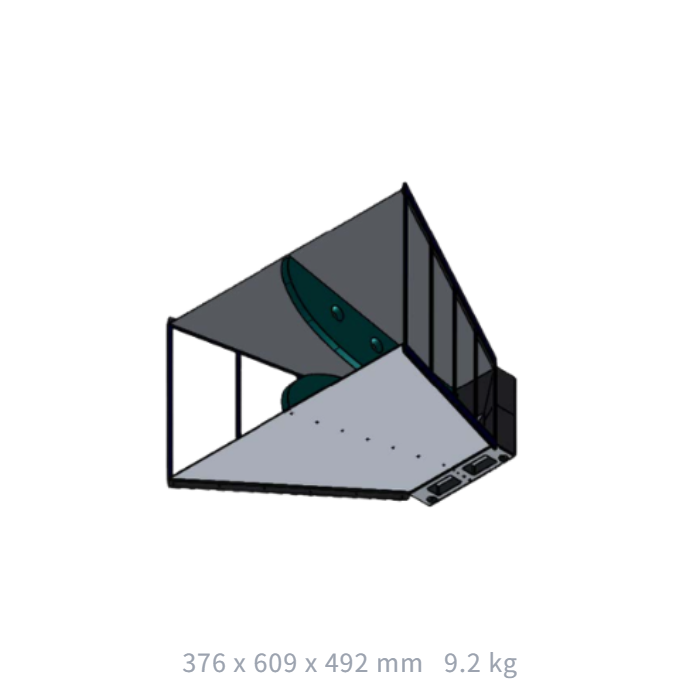

| Dimensions (H x W x L) | 376 x 609 x 492 mm |
| Weight | 9.2 kg |
| Connector | N-Female (SUS) |
| Mounting Interface | L Type Bracket / 22mm Round Bar Options |
| Country of Origin | Taiwan |
Key Design & Feature Highlights
Ultra-Wideband Coverage
Seamless operation spanning 360 MHz to 12 GHz for multi-octave signal reception and transmission[cite: 6].
High Power Rating
Delivers robust power handling up to 600W CW and 1KW peak for demanding radiated immunity setups[cite: 6].
Stainless Steel Interface
Equipped with an N-Female (SUS) connector ensuring low insertion loss and high mechanical durability[cite: 6].
Taiwanese Precision Engineering
Precision manufactured in Taiwan with rigid structural frame for repeatable RF compliance measurements[cite: 6].
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
