Description & Specification

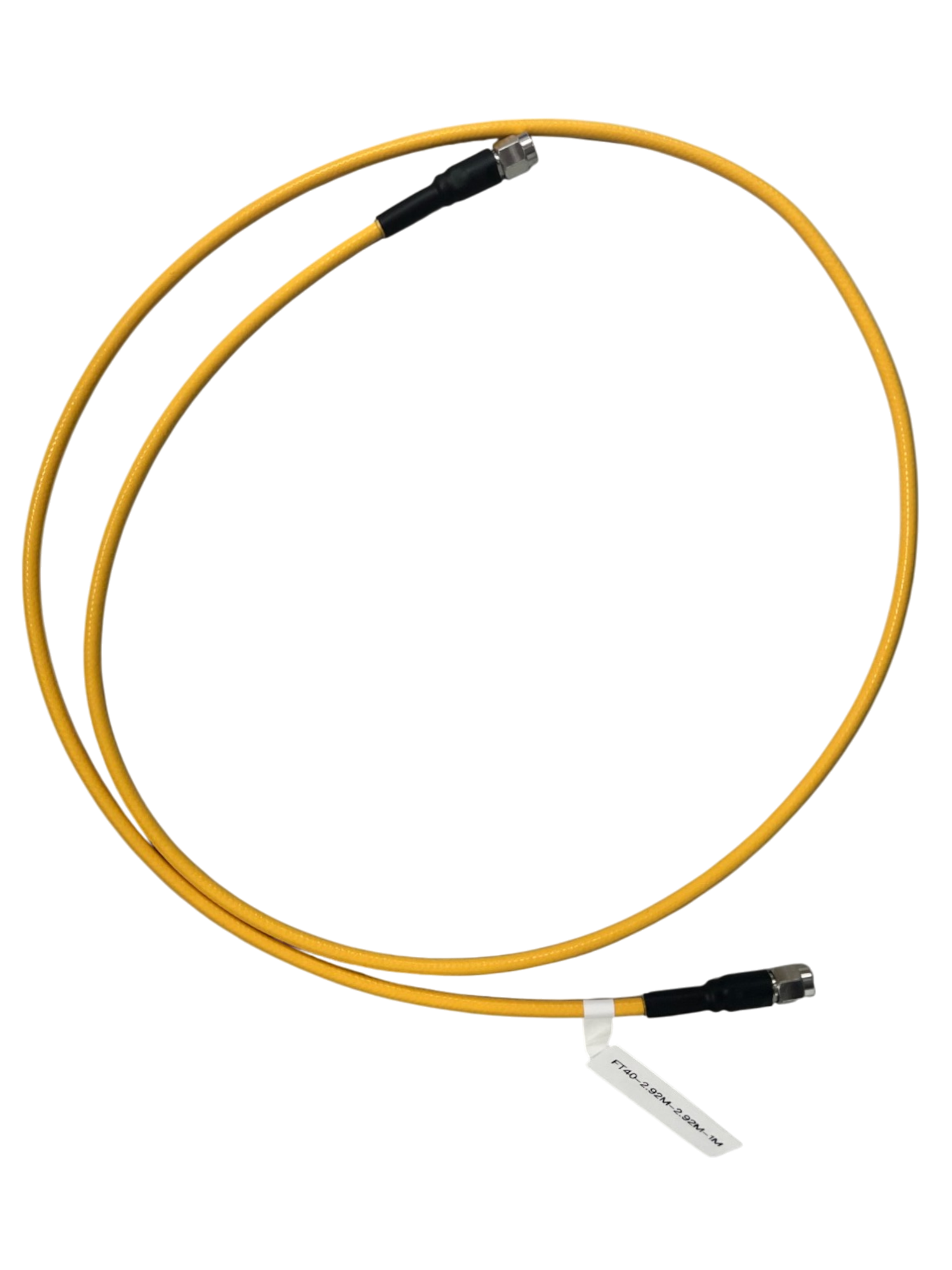

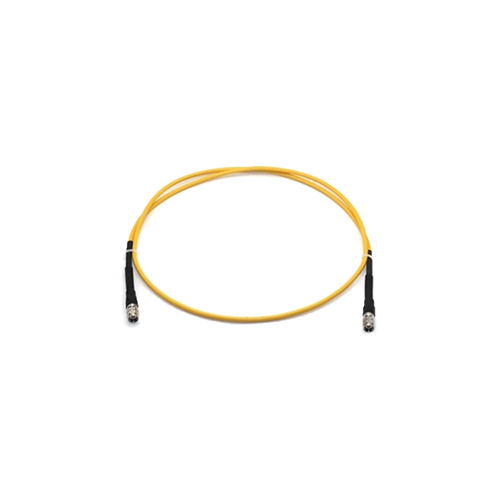

40 GHz Precision Cable Assembly

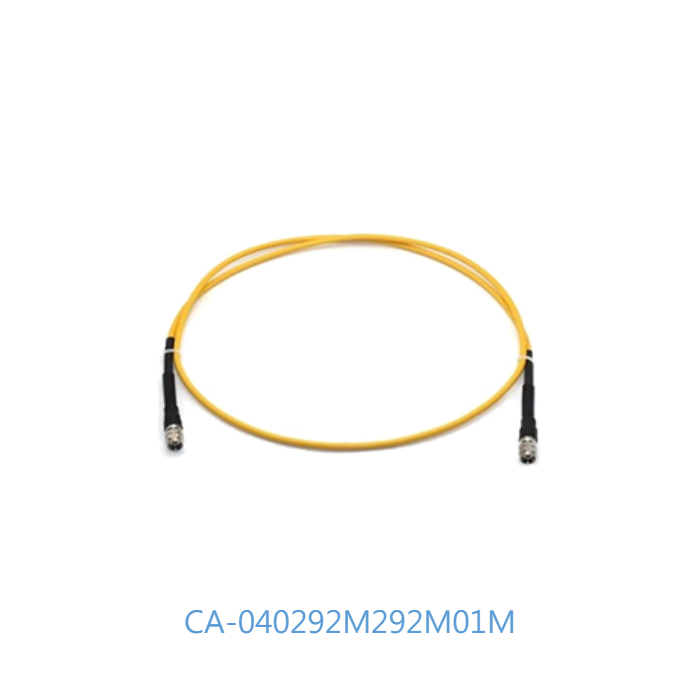

Model: CA-040292M292M01M | 2.92mm Male to Male | 1.0M Length
The CA-040292M292M01M is a professional-grade millimeter-wave transmission solution designed for high-frequency operations up to 40 GHz. Featuring dual 2.92mm (K-type) Male connectors and a specialized triple-shielded cable, this assembly provides exceptional Signal Integrity and phase stability. Precision-engineered for 50 Ohm matching, it serves as the primary interconnect for advanced Signal Defense, satellite communications, and high-performance laboratory test benches in the hardest environmental conditions.
Technical Specifications
Cable Construction Layers
| Center Contact | Silver Plated Copper Wire |
| Dielectric Layer | Low-Density PTFE (LD-PTFE) |
| Inner Shielding | Silver Plated Flat Copper Wire Braid |
| Middle Layer | LD-PTFE Isolation |
| Outer Shielding | Silver Plated Copper Wire Braid |
| External Jacket | FEP (Fluorinated Ethylene Propylene) |
Electrical & Physical Specs
| Frequency Range | DC ～ 40 GHz |
| Impedance | 50 Ohm |
| Connectors | 2.92mm Male to 2.92mm Male |
| Cable Length | 1.0 Meter |
| V.S.W.R (Max) | ≤ 1.35 : 1 @ 40 GHz |
Key Tactical Features
Millimeter-Wave Dominance
Optimized for Ka-band and Q-band operations, providing a critical low-loss link for tactical signal management and wideband surveillance systems.
Silver-Plated Shielding
Triple-layer shielding with silver-plated flat and round copper braids provides maximum EMI/RFI suppression for high-security signal protection operations.
Superior Phase Stability
The LD-PTFE dielectric architecture maintains consistent electrical length and phase stability, essential for phased array calibration and radar testing.
Tactical Thermal Resilience
Equipped with a high-performance FEP jacket, allowing for operation in extreme temperatures and resistance to harsh chemicals or fuel exposure.
Get a Quote / Custom Cable Assemblies
Contact us for customized lengths, phase-matched pairs, or integrated 2.92mm tactical cable assembly solutions.
