Description & Specification
800MHz to 18GHz Double Ridged Broadband Waveguide Horn N-Female Antenna
Broadband Precision | High Power Handling | Model: HA-08M18GL-NF
The HA-08M18GL-NF is an ultra-wideband Double Ridged Broadband Waveguide Horn Antenna engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan[cite: 1]. Operating across the 800 MHz to 18 GHz spectrum, it features a typical VSWR profile of 2.0 with continuous power handling of up to 75W (CW) and peak power up to 350W[cite: 1]. Equipped with a precision N-Female connector, it is ideal for EMC testing, microwave surveillance, and RF calibration applications[cite: 1].
Technical Specifications
| Frequency Range | 800 MHz - 18 GHz |
| Antenna Type | Double Ridged Horn |
| VSWR | Typical 2.0 |
| CW Power | 75 W |
| Peak Power | 350 W |
| Impedance | 50 Ω |
Mechanical & Physical Data

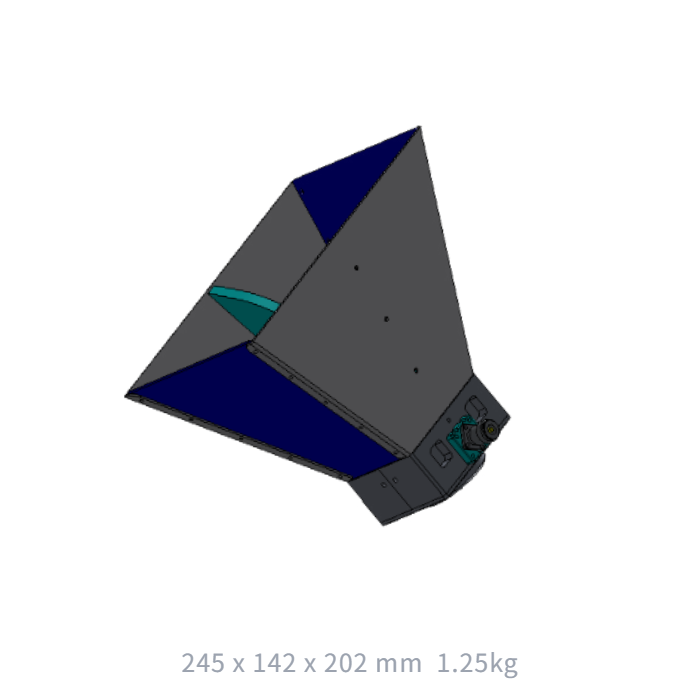

| Dimensions (W x H x L) | 245 x 142 x 202 mm |
| Weight | 1.25 kg |
| Connector | N-Female |
| Mounting Thread | M8 x 1.25 / M5 x 0.8 |
| Country of Origin | Taiwan |
Key Design & Feature Highlights
Ultra-Wideband Coverage
Continuous coverage from 800MHz to 18GHz for versatile broadband microwave testing[cite: 1].
High Power Rating
Supports up to 75W CW and 350W peak power handling for robust transmitter measurements[cite: 1].
Taiwan Precision Quality
Precision CNC machined with high-durability surface treatment for laboratory integrity[cite: 1].
Versatile Mounting
Integrated heavy-duty bracket with standard M8 and M5 mounting hole patterns[cite: 1].
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
