Description & Specification

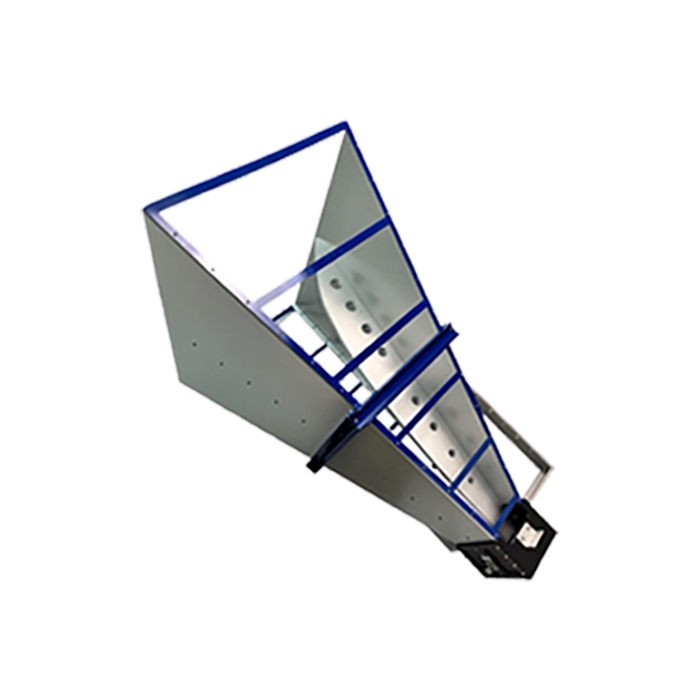

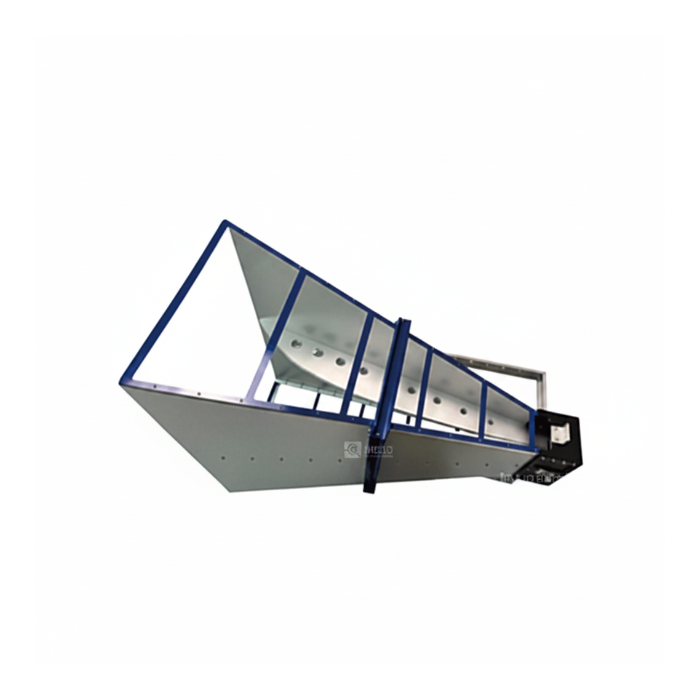

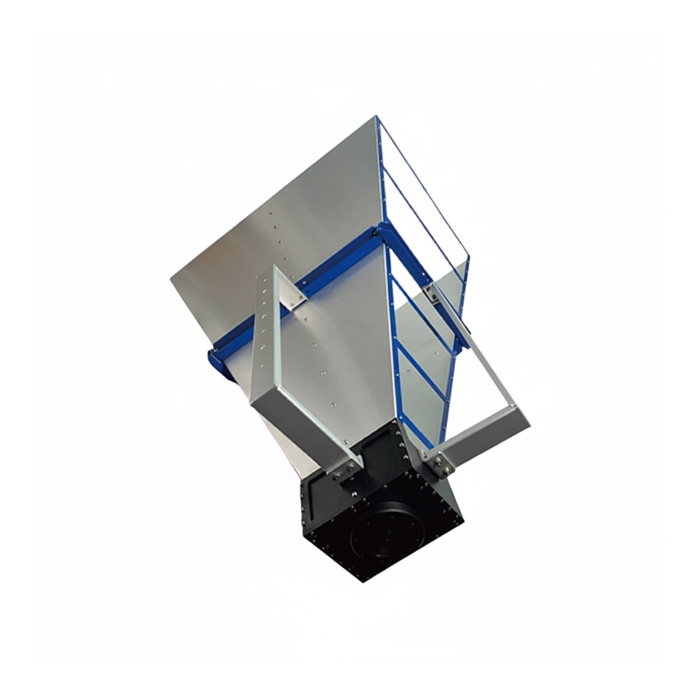

300 MHz to 10 GHz Double Ridged Horn Antenna
Broadband EMC/EMI Testing | Professional Performance | Industrial Grade
The 300 MHz to 10 GHz Double Ridged Horn Antenna is a professional ultra-wideband measurement antenna specifically optimized for precision EMC/EMI testing. Featuring a high-performance consolidated database and robust 6061 alloy construction, it provides mission-critical analysis capabilities for advanced laboratory environments.
Electrical & RF Performance
| Frequency Range | 300 MHz to 10 GHz |
| Antenna Technology | Double Ridged Broadband Waveguide |
| V.S.W.R (Typical) | Low VSWR across full band |
| Safety Protection | DC Short lightning protection |
| Connector Interface | N-Female (Stainless Steel) |
Mechanical & Construction

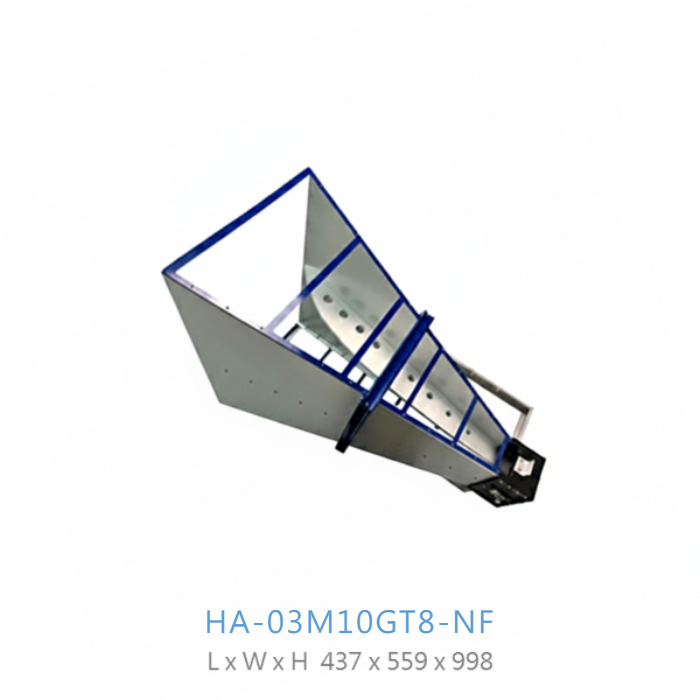

| Dimensions | 437 x 559 x 998 mm |
| Weight | 14469.35 g |
| Main Material | Premium 6061 Aluminum Metal Alloy |
Consolidated Database Performance
Includes a comprehensive performance database ensuring high accuracy and repeatability in EMI/EMC chamber measurements and spectrum monitoring.
Industrial-Grade Reliability
Engineered from 6061 aluminum alloy with a stainless steel N-type connector for superior structural rigidity and stable electrical conductivity.
Mission-Critical Protection
Built-in DC short protection provides the necessary safety envelope for sensitive test equipment during field use and tactical monitoring.
Contact FT-RF Engineering Division
Contact our engineering team for full antenna factor charts, specialized calibration certificates, or technical support.
