HA-07M08GA2-NF Broadband Horn
Double Ridged Waveguide Horn | 700 MHz – 8 GHz | 17 dBi
The HA-07M08GA2-NF is a high-precision double ridged broadband waveguide horn antenna professionally engineered for multi-octave RF applications. Operating within the 700 MHz to 8 GHz spectrum, it delivers a robust gain profile reaching up to 17 dBi. Utilizing advanced double-ridged internal architecture and a high-integrity N-Female interface, it is an essential instrument for Signal Integrity verification, antenna measurements, and professional EMC/EMI testing environments requiring superior bandwidth and structural reliability.
Technical Specifications
Electrical RF Performance
| Frequency Range | 700 MHz - 8 GHz |
| Antenna Type | Double Ridged Broadband Waveguide Horn |
| Nominal Gain | 6 dBi - 17 dBi |
| V.S.W.R | < 2.0 : 1 (Average) |
| Max Power Handling | 500 Watts (Peak) |
| Impedance | 50 Ohm |
Mechanical & Interface Data
| Connector Type | Precision N-Female |

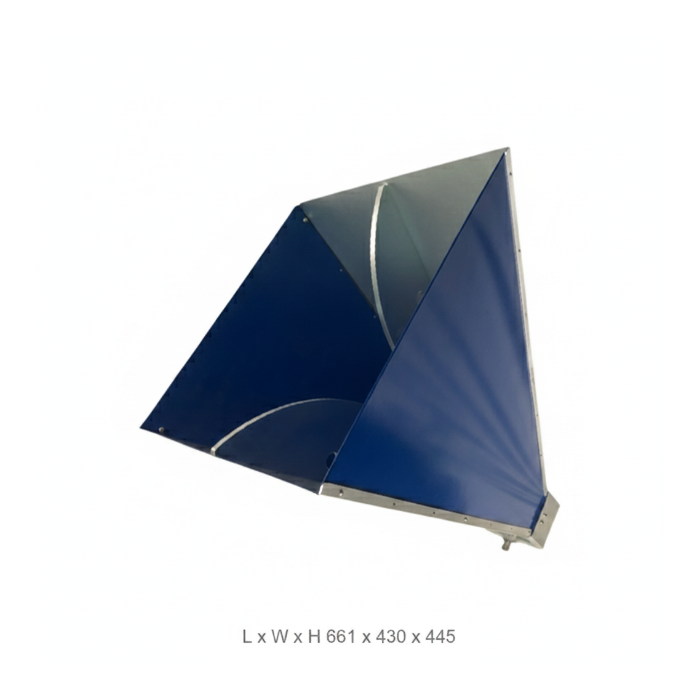

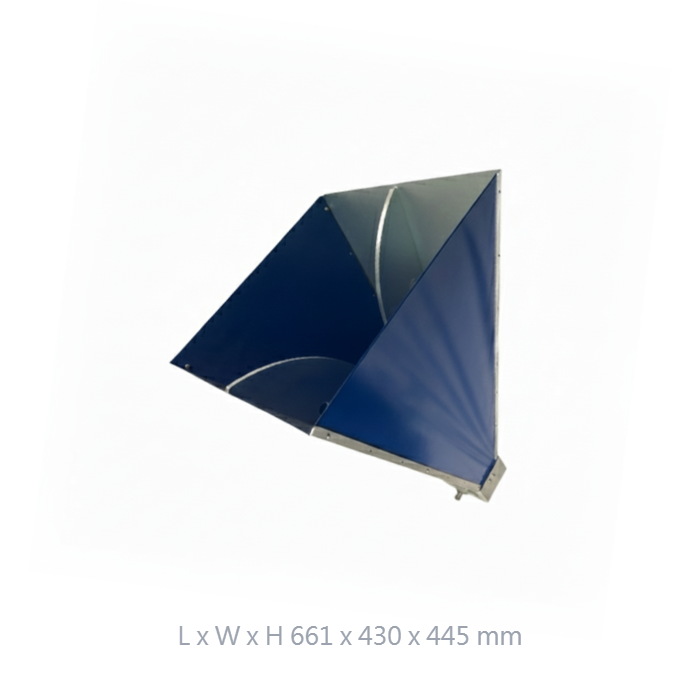

| Dimensions (L x W x H) | 661 x 430 x 445 mm |
| Net Weight | 8.1 kg (Industrial Build) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
Broadband EMC Precision
Ideally suited for emission and immunity testing across a 7.3 GHz bandwidth, providing reliable performance for Signal Integrity acquisition in professional laboratories.
High-Power Capacity
Engineered to handle a peak power input of 500W, making it suitable for high-intensity field strength generation and rigorous antenna measurement cycles.
Advanced Ridge Design
Features an optimized double-ridge internal structure to ensure a wideband frequency response and stable electrical performance across the entire operating spectrum.
Precision Taiwan build
Manufactured from high-durability alloys with precision-finished internal ridges to ensure repeatable gain and low VSWR under continuous duty cycles.
Inquire About Professional Horn Solutions
Contact our engineering team for specialized gain calibration data, custom mounting solutions, or technical support regarding multi-octave broadband measurement setups.
