Double Ridged Broadband Horn
Broadband RF Interconnect | 800 MHz – 8 GHz | 17 dBi

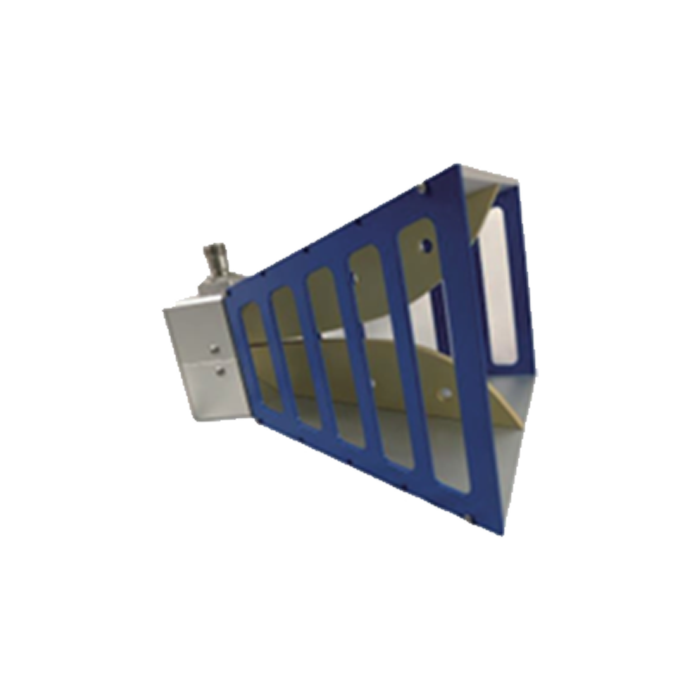

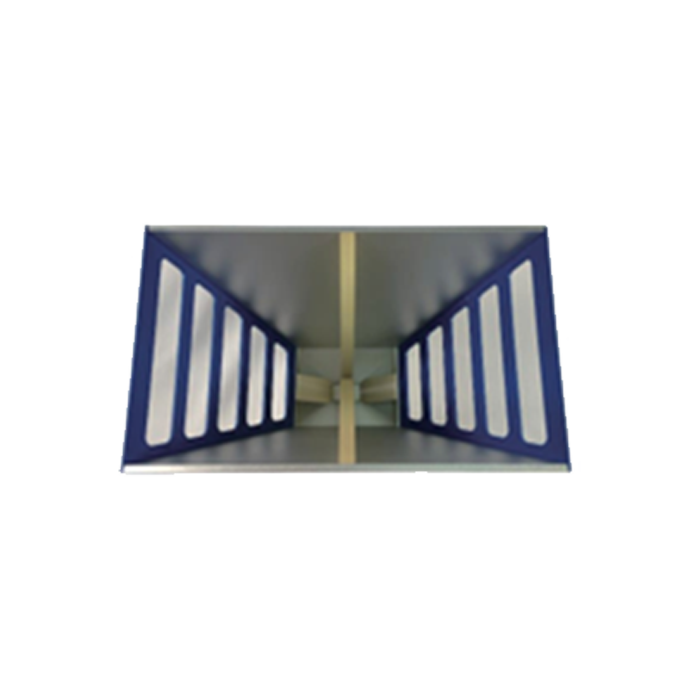

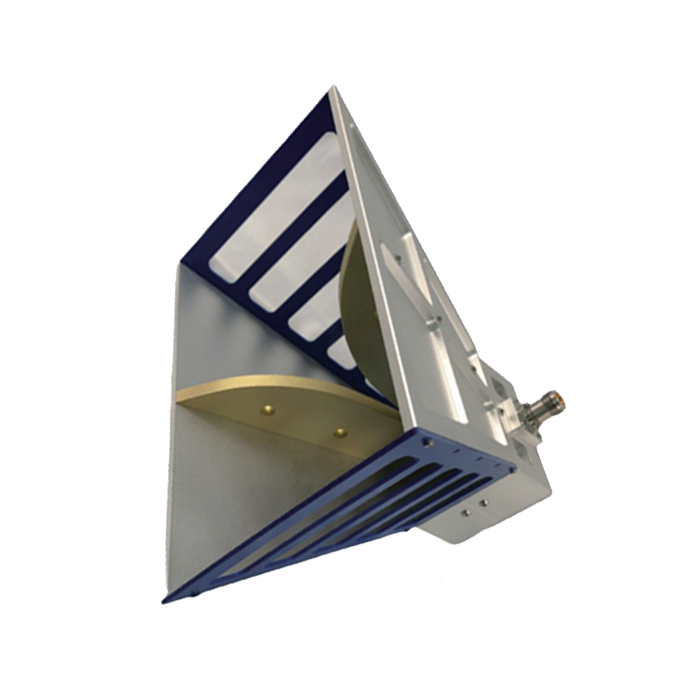

The HA-08M08G-NF is a high-precision double ridged broadband waveguide horn antenna professionally engineered for ultra-broadband frequency applications. Operating within the 800 MHz to 8 GHz spectrum, it delivers an exceptional gain profile reaching up to 17 dBi. Constructed from aerospace-grade 6061 Aluminum alloy with a premium stainless steel N-Female interface, it is an essential instrument for Signal Integrity verification, radar detection systems, and professional EMC environments where structural reliability and uniform performance are critical.
Technical Specifications
Electrical RF Performance
| Frequency Range | 800 MHz - 8 GHz |
| Antenna Type | Double-Ridged Horn |
| Nominal Gain | 3 dBi - 17 dBi |
| Antenna Factor | 24 - 40 dB/m |
| V.S.W.R | 2.0 : 1 (Average) |
| Power Handling | 500W (Peak) / 300W (Cont.) |
| Impedance | 50 Ohm |
Mechanical & Interface Data
| Connector Type | Stainless Steel N-Female |

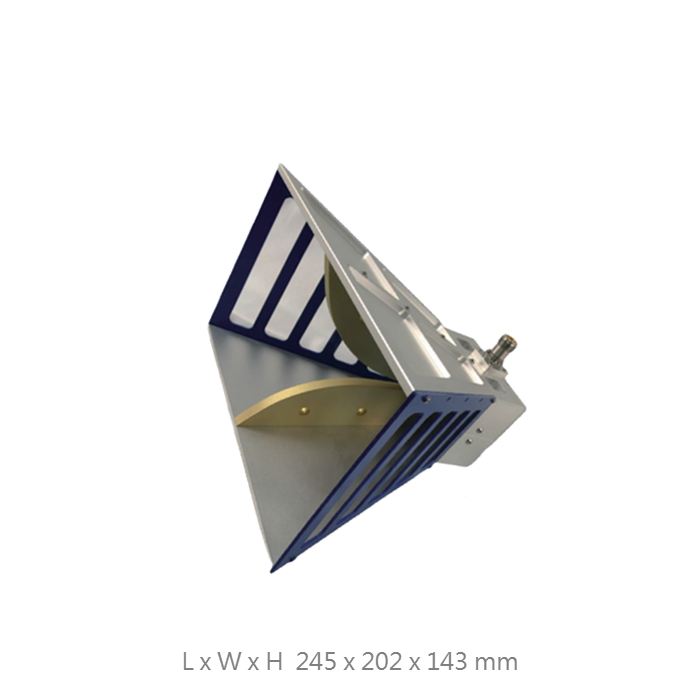

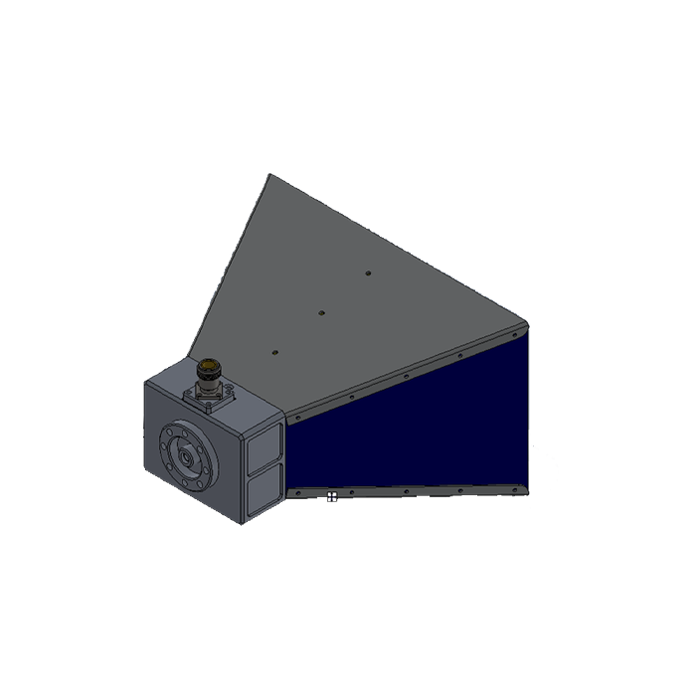

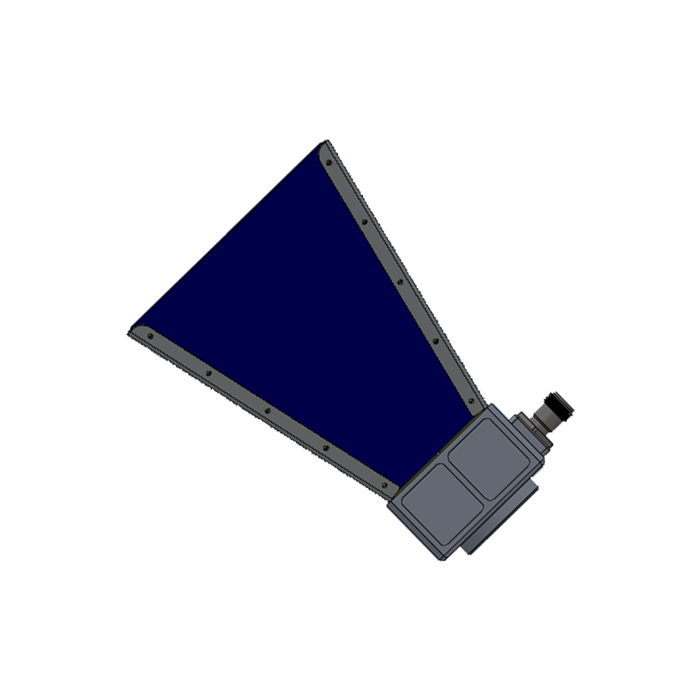

| Dimensions (L x W x H) | 245 x 202 x 143 mm |
| Net Weight | 0.8 kg (Industrial Precision) |
| Body Material | Aerospace Grade 6061 Aluminum Alloy |
| Mounting Options | L Type Aluminum Mount (M6 / 1/4 in) |
Professional Tactical Features
Broadband RF Precision
Ideally suited for surveillance and radar detection across a 7.2 GHz bandwidth, providing reliable performance for Signal Integrity acquisition in professional laboratories.
High-Power Capability
Supports a peak power input of 500W, making it suitable for high-intensity field strength generation and rigorous antenna measurement cycles.
Integrated DC Protection
Equipped with built-in DC short lightning protection to safeguard high-precision measurement instrumentation from transient electrical surges.
Consolidated Performance
Includes a performance-verified database and consistent uniform gain profile, ensuring repeatable and traceable results for professional surveillance system calibration.
Inquire About Professional Horn Solutions
Contact our engineering team for specialized gain calibration data, custom mounting ring options (22mm tube), or technical support regarding broadband measurement setups.
