250 MHz to 12 GHz N-Female Double-Ridged Horn Antenna
High Power 1KW Peak | Gain up to 14dBi | Model: HA-025M12G-NF
The HA-025M12G-NF is a high-performance Double-Ridged Horn Antenna designed for broadband applications from 250 MHz to 12 GHz. Engineered for high-power handling, it supports up to 1KW peak power and 600W CW, making it an essential tool for EMC testing, signal monitoring, and high-intensity RF environments.
Technical Specifications
| Frequency Range | 250 MHz – 12 GHz |
| Gain | 2 to 14 dBi |
| Peak Power | 1KW (1000W) |
| Max CW Power | 600W |
| Connector | N-Female (SUS) |
| Impedance | 50 Ohm |
| Polarization | Linear |
| Application | Broadband Testing / EMC / Communication |
Mechanical & Environmental Specifications

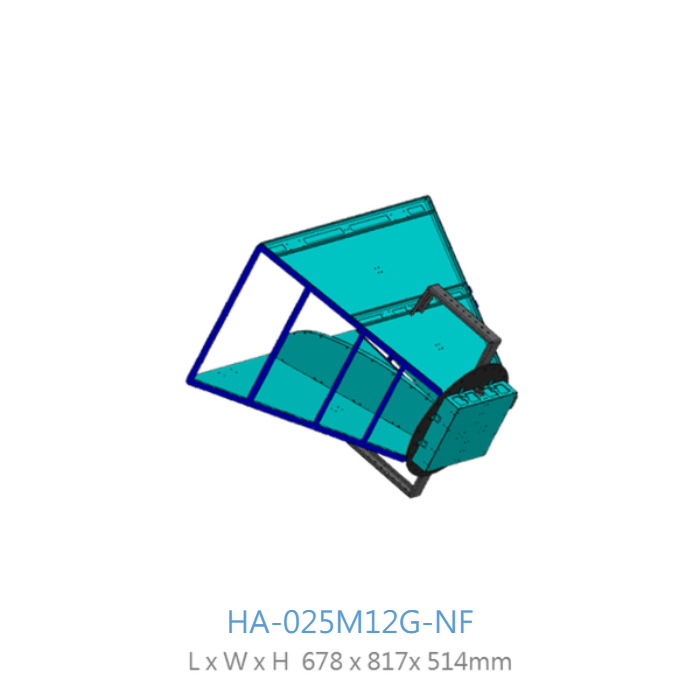

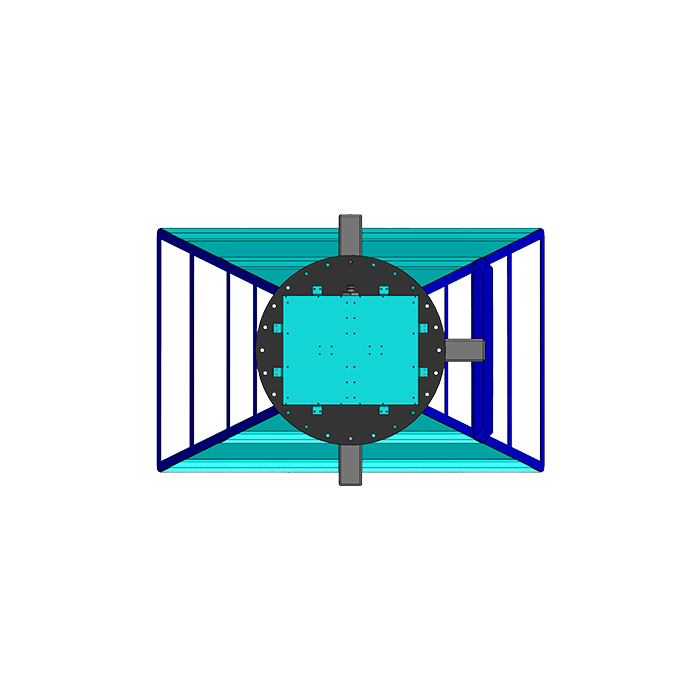

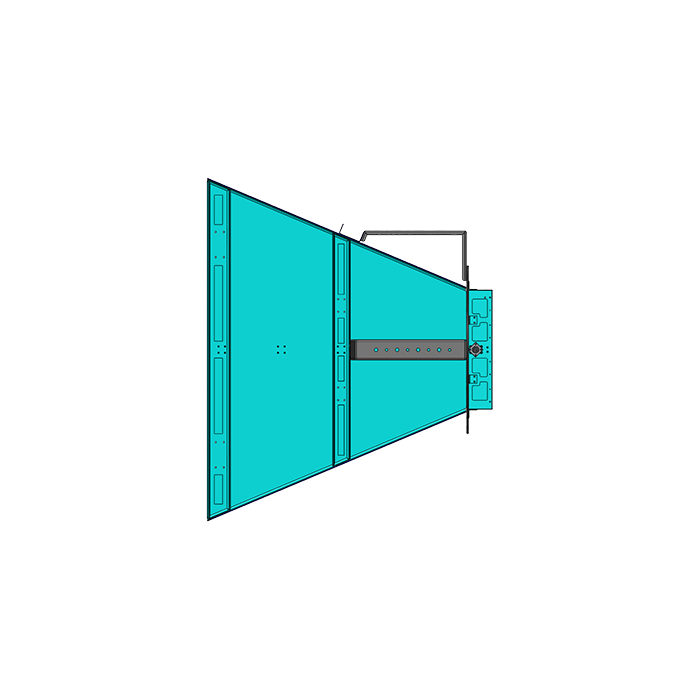

| Dimensions (H x W x L) | 514 mm x 817 mm x 678 mm |
| Weight | 9 kg |
| Material | Aluminum Alloy |
| Mounting Options | Standard Tripod Mount Compatible |
| Compliance | RoHS, CE Standard |
Key Reference Features
Ultra-Broadband Performance
Covers a massive 250 MHz to 12 GHz range, providing a single-antenna solution for wide-spectrum EMC testing and signal monitoring.
High Power Handling
Capable of managing 1KW peak and 600W continuous wave power, ensuring stability and reliability under high-power signal applications.
Precision Gain Profile
Delivers a stable gain of up to 14 dBi across the operating band, optimized for directional accuracy and link budget consistency.
Ruggedized Construction
Built with high-grade aluminum alloy and stainless steel connectors for long-term durability in demanding laboratory and field environments.
For custom brackets, frequencies, or rugged enclosures, contact our engineering team.
